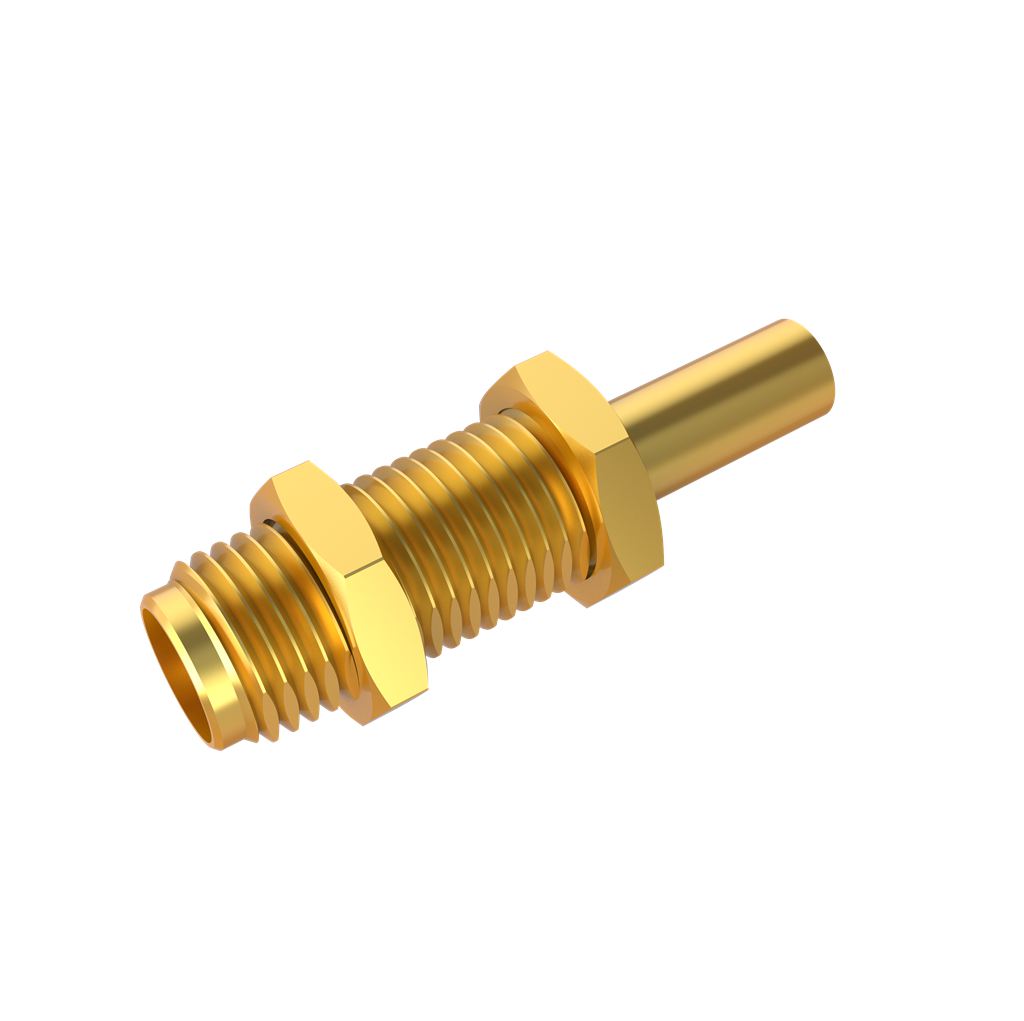

SMA Connectors Jack Bulkhead Crimping Straight For RG316 Cable

SMA coaxial connectors from LenoRF provide excellent quality and performance. Great dependability, extended service life, high mechanical stability, and outstanding electrical properties are all features of these screw-on locking connectors with a set maximum torque. The butted outer contact allows for excellent frequency ranges up to 18 GHz and 30 dB return loss. SMA connectors are used in a variety of RF applications, including telecommunications and mobile communication, as well as test and measurement tools and equipment.
  • 89-5061-115-04
  • Female
  • Straight
  • Crimping
  • Crimping
  • RG316
  • 89-5061-115-04.pdf
  • 89-5061-115-04.stp
Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type RG316
Contact PlatingGold
Contact MaterialBrass
Contact TerminationCrimping
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting FeatureN/A
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleCrimping/Solder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
