Product Short Description:

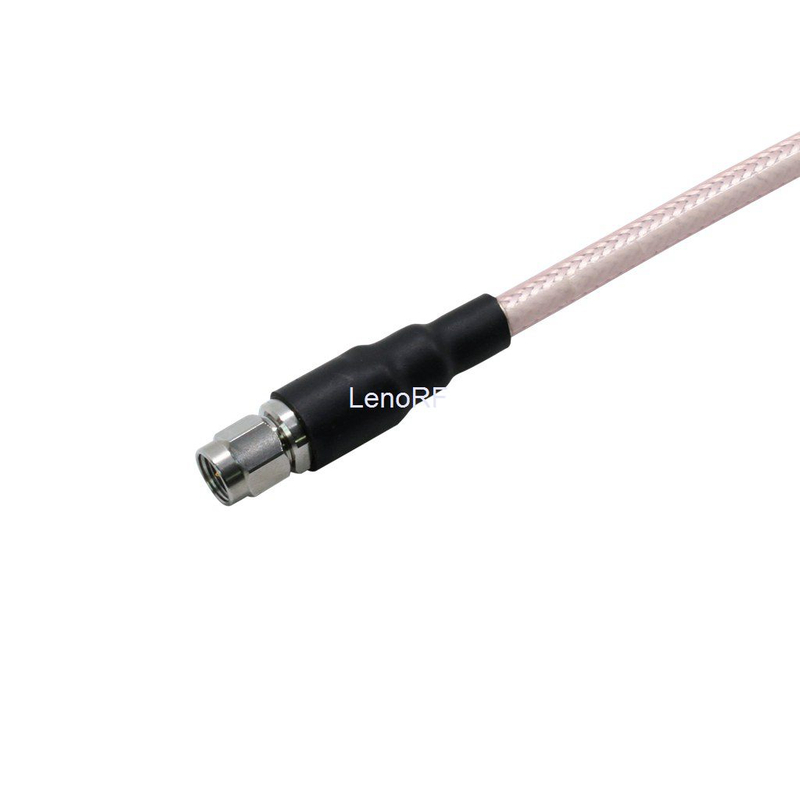

SMA PLUG FOR RG402 TEST CABLE ASSEMBLY


Product Description



Specification of product:



Part No 810-10003
Connector Series SMA
Connector Type male
Contact Termination Solder
Shield Termination Crimp
Impedance 50 Ohm
Mounting Type Free Hanging
Cable Group RG316
Fastening Type Thread
Frequency - Max DC-12GHz
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C

Application of product

Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

Environmental Compliance

All product is RoHS and REACH complaint.
