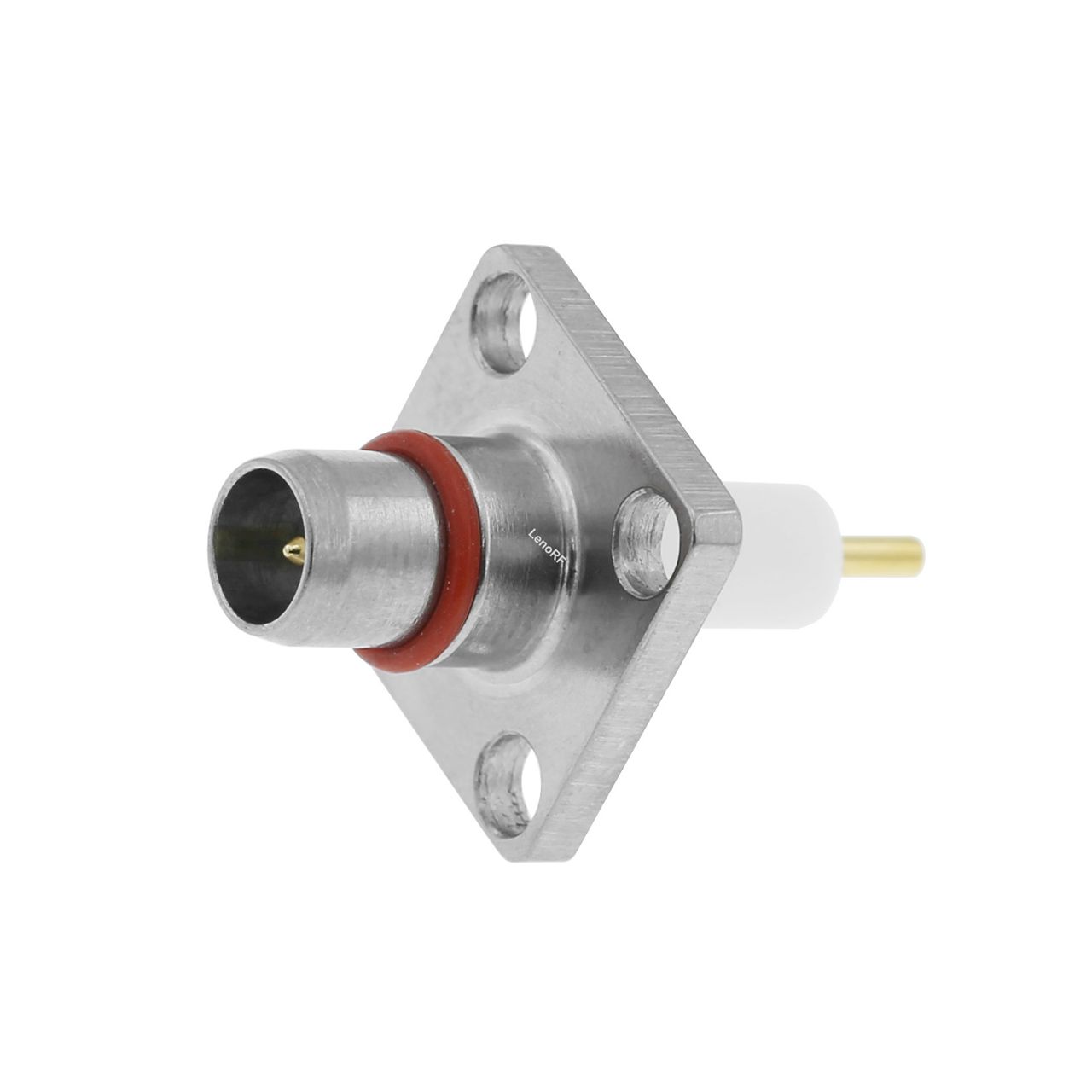

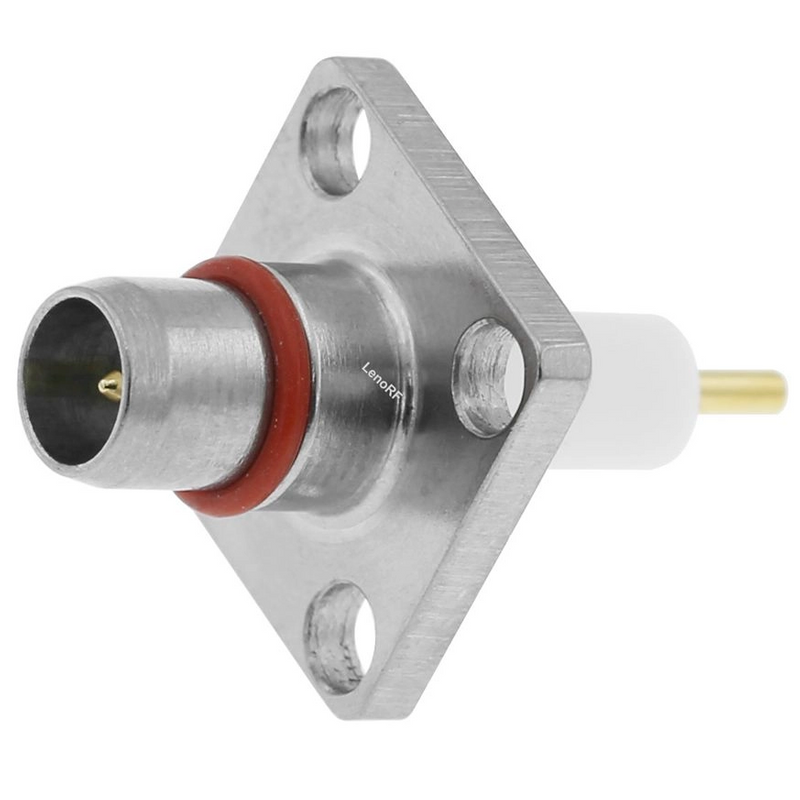

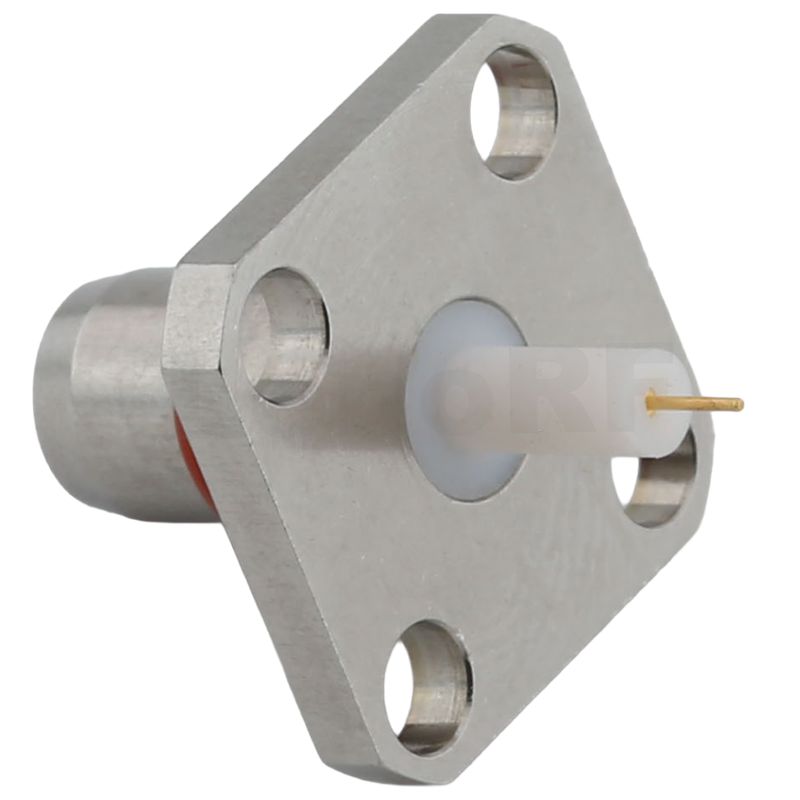

BMA Plug Connector Right Angle Solder 4-hole Flange For Microstrip

The Blind-Mate A (BMA) RF connector series is a remarkable achievement in the world of microwave interconnects. Developed in the 1980s and initially designated as the OSP™ connector by M/A-Com, the BMA connectors have found widespread use in various high-frequency applications. They are specifically designed for interconnecting microwave modules, whether through direct mount or floating rear mount configurations.
  • 22-872

  • Male

  • Straight

  • Crimping

  • Crimping


Connector   SeriesBMA
Connector TypePlug
Contact TerminationSolder
Shield TerminationSolder
Impedance50   Ohm
Mounting TypeFree   Hanging
Cable GroupRG405
Fastening TypeThread
Frequency - MaxDC-22GHz
Body MaterialBrass
Body FinishNickel
Center Contact MaterialBrass
Center Contact FinishGold
Dielectric MaterialPolytetrafluorethylene   (PTFE)
Voltage Rating375V
Working Temperature65°C   To 165°C


1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days

2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order

3. The quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


Our product fully compliance with ROHS&REACH.

5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.

Our company, Zhejiang LenoRF Industry co. LTD, occupies an area of 30 hectares and is equipped with world class equipment to make millimeter wave connectors and phase stable cables. We specialize in coaxial connectors, cable assembly, and passive devices. Our current products are the latest millimeter wave connector and phase stable cable on the market.
