Impedance
50 Ω
Maximum Operating Frequency
22.00 GHz
Coupling Mechanism
Slide-on/Push-on Coupling
Interface Standards
IEC 61169-33
MIL-STD-348B
Impedance is a crucial parameter in the world of electrical engineering, particularly when it comes to high-frequency applications. In the realm of RF (Radio Frequency) connectors, one of the key specifications is the impedance value, often denoted as 50 Ω. This value represents the characteristic impedance of the connector, which plays a fundamental role in ensuring efficient signal transmission. In the case of the Blind-Mate A (BMA) RF connector, this impedance value is set at 50 ohms.
High-frequency applications demand precision and reliability, and the BMA connector series excels in meeting these requirements. With a maximum operating frequency of 22.00 GHz, it is well-suited for use in microwave systems where signal integrity and performance are paramount.
The coupling mechanism employed by BMA connectors is known as slide-on/push-on coupling. This mechanism allows for a quick and secure connection, making it ideal for applications where ease of use and speed of connection are essential.

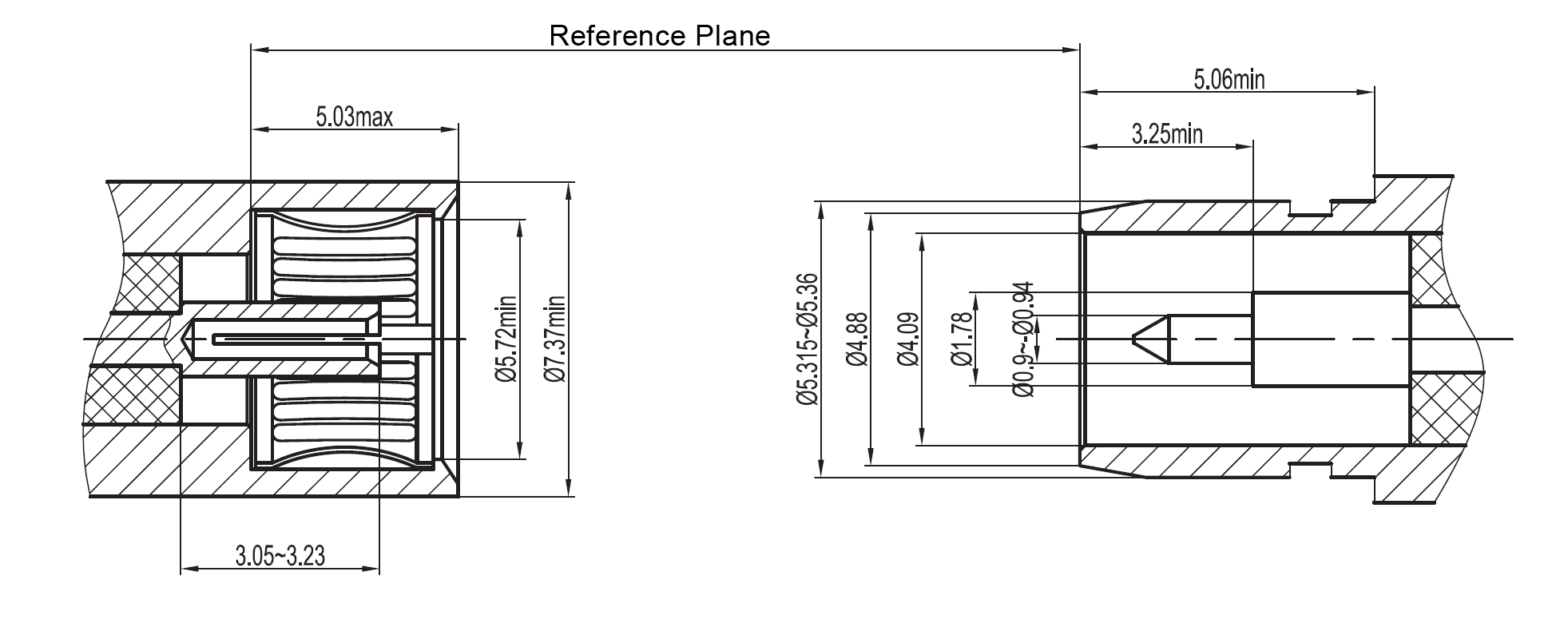

In terms of interface standards, the BMA connectors adhere to the IEC 61169-33 and MIL-STD-348B standards. These standards ensure that the connectors are designed and manufactured to meet rigorous specifications, guaranteeing compatibility and interoperability with other equipment and components that also comply with these standards.
The Blind-Mate A (BMA) RF connector series is a remarkable achievement in the world of microwave interconnects. Developed in the 1980s and initially designated as the OSP™ connector by M/A-Com, the BMA connectors have found widespread use in various high-frequency applications. They are specifically designed for interconnecting microwave modules, whether through direct mount or floating rear mount configurations.
One of the standout features of BMA connectors is their ability to accommodate misalignment during mating, thanks to the floating variation of the female connector. This unique characteristic makes them particularly well-suited for applications with high vibration levels, where maintaining a stable and reliable connection is a constant challenge.
Despite their official military standard designation as BMA connectors, they are commonly referred to as OSP connectors in the industry. This nomenclature reflects their historical development and initial branding by M/A-Com.
The BMA connectors are versatile and find application in various scenarios where high-frequency connectivity is critical. They are designed to support applications up to 22 GHz, making them suitable for use in microwave systems that demand exceptional performance. Additionally, their robust design allows them to withstand in excess of 5,000 mating cycles, ensuring long-lasting reliability.
One of the primary applications of BMA connectors is in interconnecting microwave modules, drawers, and racks within high-frequency systems. These systems require stable and efficient connections to maintain their functionality, and BMA connectors excel in this regard. Moreover, they are particularly valuable in situations where system downtime must be minimized, as they enable the rapid replacement of faulty high-power microwave modules, reducing the overall impact on operations.

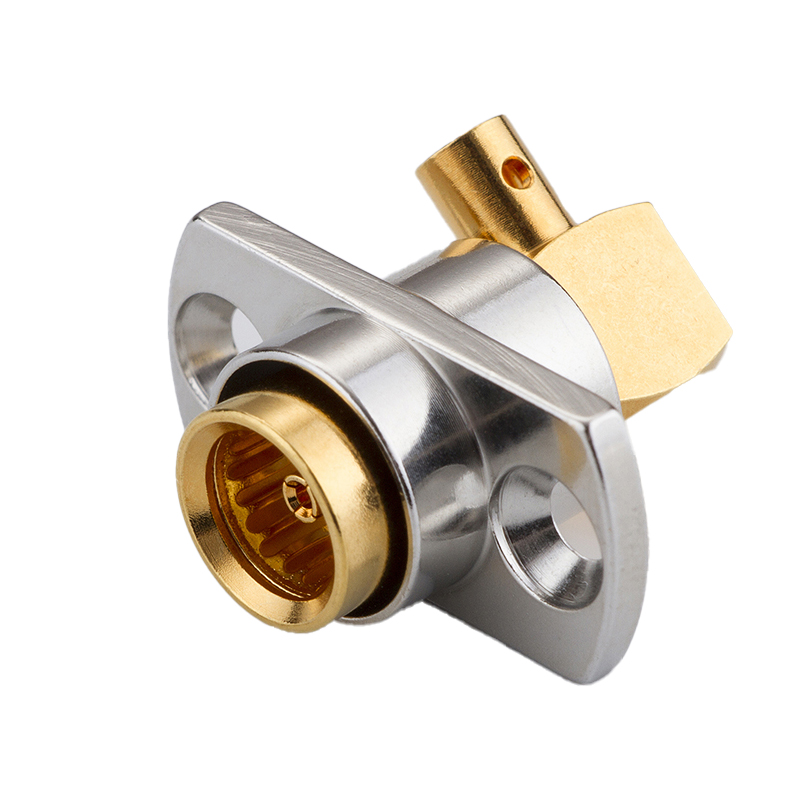

BMA connectors come in various configurations to meet different requirements. The key distinction lies in the type of female connectors available, which can be fixed or floating.
Fixed Female Connectors: Fixed female BMA connectors provide a stable and rigid interface, ensuring a secure connection between components. They are well-suited for applications where precise alignment is maintained and there is no need for tolerance against misalignment.
Floating Female Connectors: Floating female BMA connectors introduce a unique design feature. They employ a spring mechanism that separates the connector interface from the flange housing. This design allows for axial or radial misalignment tolerance, making them ideal for blind mating purposes. In high-vibration environments or scenarios where connectors may not align perfectly during mating, floating BMA connectors offer the flexibility and reliability needed for a successful connection.
While the BMA connector series has been highly regarded for its performance and versatility, it is important to note that it is now generally considered obsolete. Technological advancements have led to the development of improved blind-mate connectors, such as the SBX, SBY, SMP, and Mini-SMP connectors, which offer enhanced performance and features.
These newer connector series provide superior solutions for high-frequency applications, often surpassing the capabilities of the BMA connectors. As a result, many industries have transitioned to these newer connector types to take advantage of their improved performance, signal integrity, and durability.
In conclusion, the Blind-Mate A (BMA) RF connector series has left a significant mark in the field of microwave interconnects. With its 50-ohm impedance, impressive maximum operating frequency of 22 GHz, slide-on/push-on coupling mechanism, and adherence to industry standards, it has served as a reliable solution for various high-frequency applications. However, as technology has evolved, newer connector series have taken its place, offering even greater capabilities. Nonetheless, the BMA connectors remain a testament to the innovation and engineering prowess that drive advancements in the field of RF connectors.
