What Is BNC RF Connector

Views: 0     Author: Uly Hong     Publish Time: 2023-09-04      Origin: LenoRF

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Impedance

50 Ω

Maximum Operating Frequency

4.00 GHz

Coupling Mechanism

Bayonet Coupling

Interface Standards

CECC 22121

IEC 61169-8

MIL-STD-348B


The world of radio frequency (RF) connectors is replete with a variety of designs, each tailored to specific needs and applications. Among these, the BNC connector, short for "Bayonet Neill–Concelman," stands as a notable example of engineering ingenuity and practicality. This two-stud bayonet-style connector was originally devised for rapid mating and has since become one of the most widely used RF connectors globally. In this comprehensive exploration, we delve into the history, applications, variations, and technical specifications of the BNC connector, shedding light on its enduring significance in the realm of telecommunications and electronics.


BNC Plug Connector

20-371,bnc plug clamp rg58

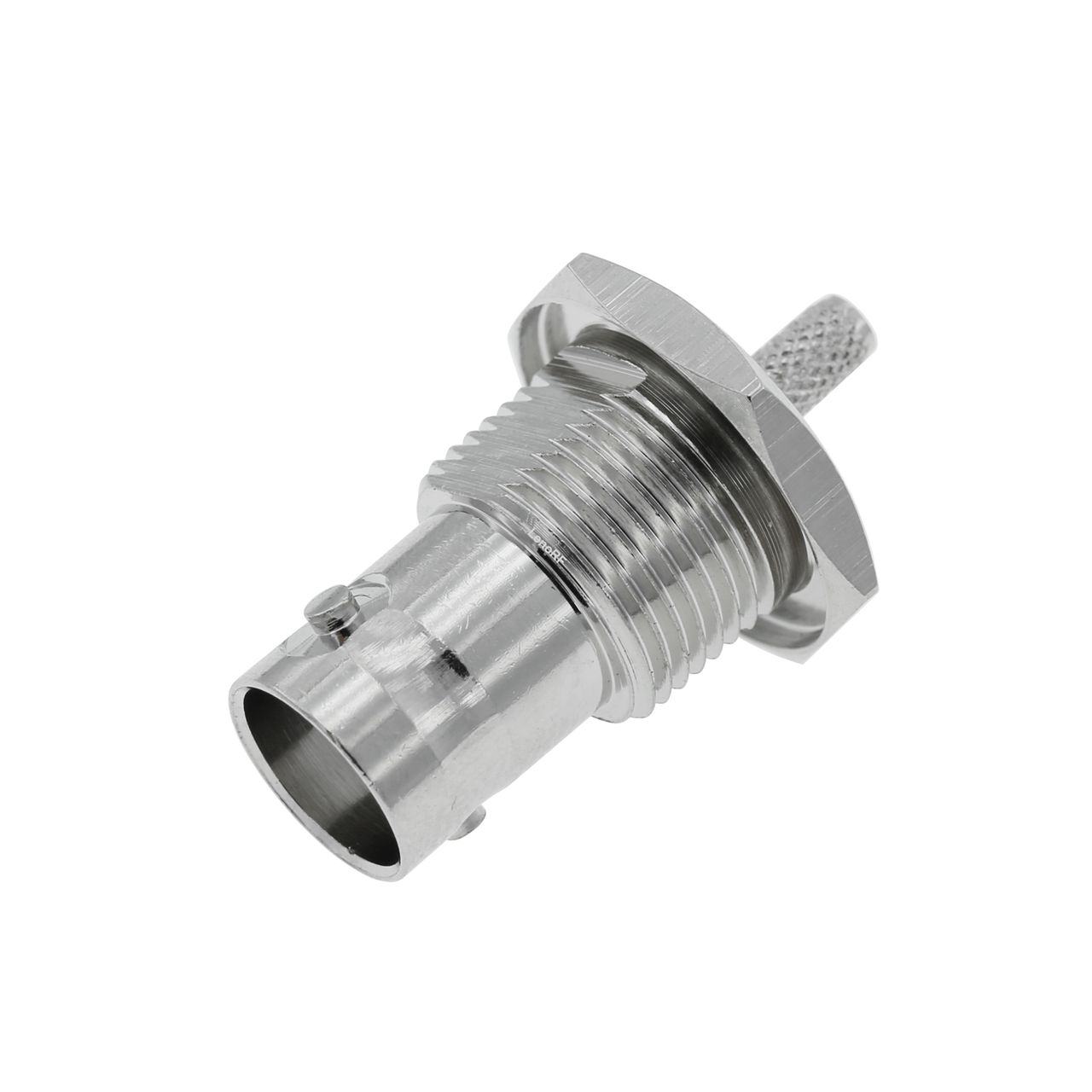

BNC Jack Connector

20-579,bnc jack crimp st212

Historical Origins

The BNC connector owes its existence to the collaborative efforts of two remarkable individuals: Paul Neill, hailing from Bell Labs, and Carl Concelman, representing Amphenol. However, the roots of this connector design can be traced back to an earlier creation by Octavio M. Salati, who filed for a design patent in 1945. The patent, numbered #2,540,012, was ultimately granted in 1951. Consequently, the BNC connector is considered an evolutionary refinement of Octavio's original concept rather than an entirely new invention.

Technical Specifications

Impedance

At the core of the BNC connector's design is its characteristic impedance. The standard BNC connector boasts an impedance of 50 ohms, a value that plays a pivotal role in ensuring optimal signal transmission in RF applications. However, it's worth noting that 75 ohm BNC connectors are also prevalent in the market, catering to applications that demand specific impedance characteristics. These 75 ohm variants are commonly used in applications supporting frequencies of up to 2 GHz.

Frequency Range

The operational frequency range of BNC connectors is another critical aspect to consider. These connectors excel in frequencies up to 4 GHz, making them ideal for various applications in UHF, radio, electronic equipment, and broadcast systems. Beyond this 4 GHz threshold, BNC connectors exhibit a unique characteristic: they begin radiating. This phenomenon imposes a practical limitation on their operating frequency range, rendering them less suitable for applications demanding higher frequencies.

Diverse Applications

BNC connectors have found their way into a multitude of applications across different industries. Their versatility and reliability have made them indispensable in various fields:

50 Ω BNC Connectors

  • Telecommunications: BNC connectors with a 50 ohm impedance are heavily utilized in telecommunications applications. They are particularly well-suited for UHF radio communications, data transmissions, and SCADA (Supervisory Control and Data Acquisition) systems. Additionally, 50 ohm BNC connectors played a foundational role in the early establishment of 10BASE2 computer networks.

75 Ω BNC Connectors

  • Video Transmission: BNC connectors with a 75 ohm impedance are commonly employed in both analogue and digital video transmission applications. They have found extensive use in scenarios such as MATV (Master Antenna Television) building distribution, closed-circuit television (CCTV), and cable television (CATV) systems.

Variations and Specialized Designs

The adaptability of BNC connectors is further demonstrated through various specialized designs and proprietary variations that have emerged over time. These variations cater to specific needs and scenarios, enhancing the connector's versatility:

Reverse-Polarized BNC Connectors

Reverse-polarized BNC connectors introduce a unique configuration where the male and female center conductors are swapped. This design tweak serves to prevent accidental mating of incompatible technologies, enhancing connector safety and compatibility.

Proprietary Variations

Numerous manufacturers have introduced proprietary variations of the BNC connector, often presenting them as entirely new connector series. Two notable examples are:

HD-BNC (High Density BNC)

The HD-BNC connector is a 75 ohm variant with a remarkable feature: it boasts a 25% smaller footprint compared to standard BNC connectors. This reduced size is particularly advantageous in applications where space is at a premium, while still delivering the performance expected from traditional BNC connectors.

Mini-BNC

The Mini-BNC connector represents a miniaturized 75 ohm BNC variant, offering a footprint that is approximately 40% smaller than conventional BNC connectors. This downsizing is especially beneficial in applications where compactness is a priority, without compromising signal integrity and functionality.

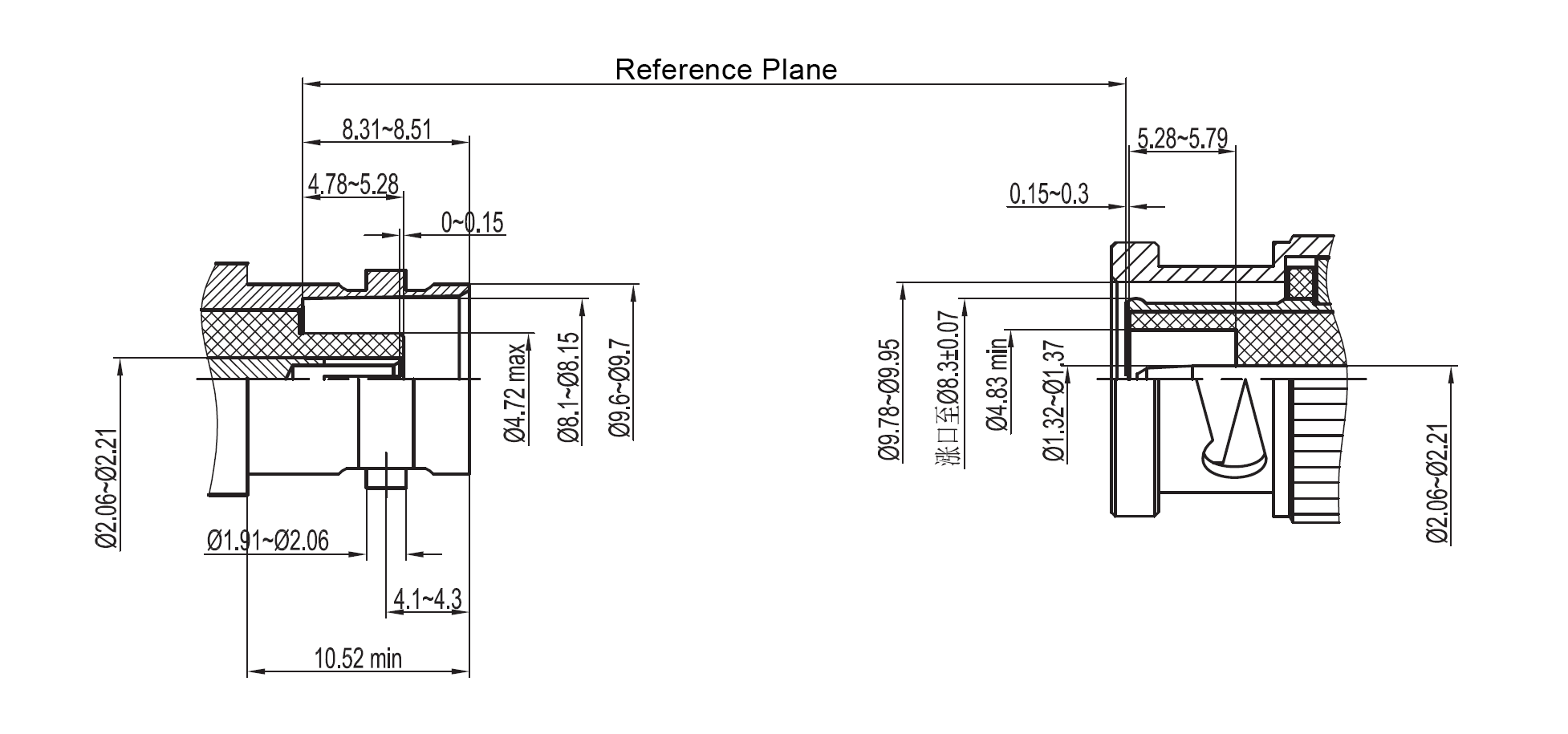

Interface Drawing


bnc interface drawing

Conclusion

The BNC connector, with its origins in a collaborative effort and its evolution from Octavio M. Salati's pioneering work, has become an iconic fixture in the world of RF connectors. Its quick bayonet-style mating, characteristic impedance options, and versatile applications have solidified its place in telecommunications, electronics, and video transmission systems. While it may face operational frequency limitations beyond 4 GHz, the BNC connector continues to be a trusted and reliable choice for countless professionals and industries. Moreover, its adaptability is exemplified by reverse-polarized configurations and innovative proprietary variations, such as HD-BNC and Mini-BNC, ensuring that the BNC connector remains a relevant and essential component in modern connectivity solutions.
