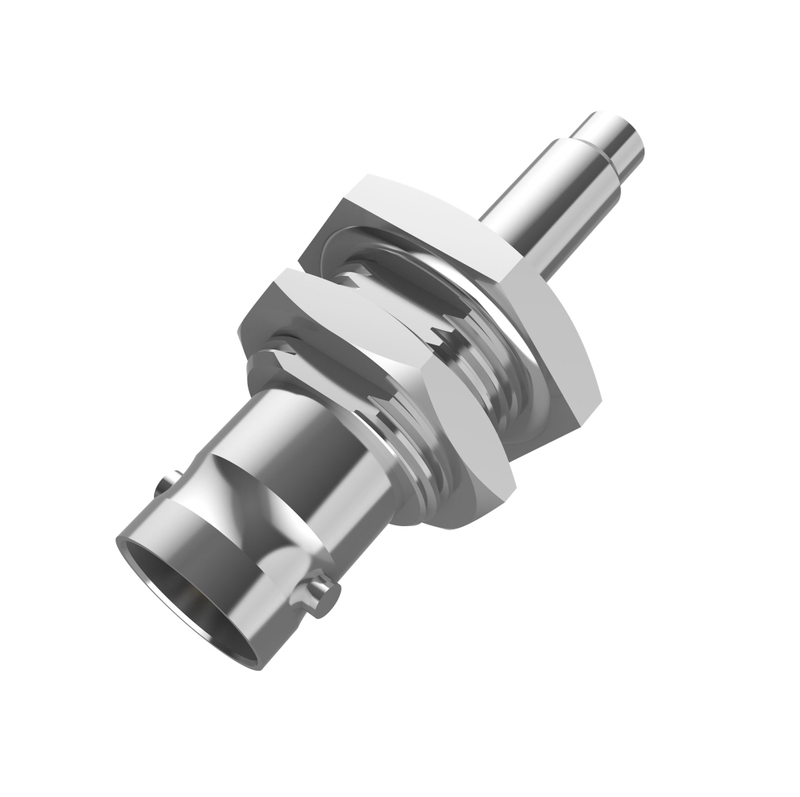

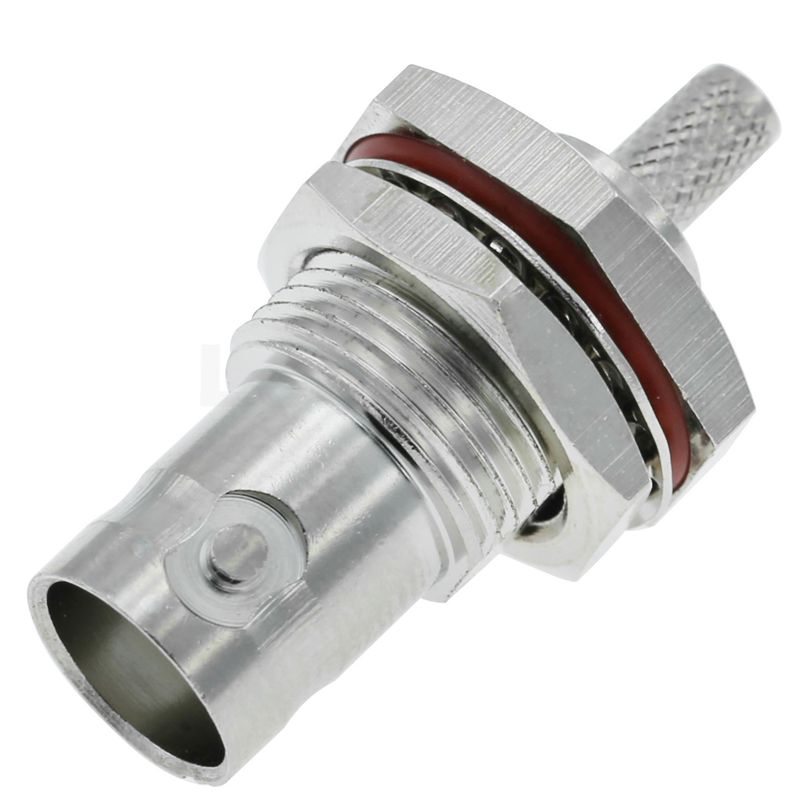

BNC Connector Female Crimp Bulkhead For RG179 Cable

The BNC is a bayonet-style connector with a positive locking mechanism that allows for rapid connection and disconnect. With merely a quarter rotation of the coupling nut, mating is accomplished. BNCs are suitable for a wide range of RG and industry standard cables in a variety of termination types, thanks to their traditional, durable design.

BNCs are available from LenoRF in a variety of configurations. BNC connectors are small, lightweight, and dependable, with impedance ranging from 50 to 75 ohm and commercial to military grade. The product range is completed by a comprehensive line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories.
  • 20-483
  • 82-7061-104-04
  • Female
  • Straight
  • Crimping
  • Crimping
  • RG179
  • 82-7061-104-04.pdf
  • 82-7061-104-04.stp
Availability:
Quantity:


BNC Features:


50 or 75 ohm impedance designs to fit impedance to system needs thanks to the bayonet coupling mechanism, which offers positive, rapid mating and un-mating.

Connectors are offered for use in industrial, commercial, and military applications.

Designs for several popular coaxial cable types are available.

Part No 82-7061-104-04
Connector Series BNC
Connector TypeFemale
Contact Termination Solder
Shield Termination Clamp
Impedance 75 Ohm
Mounting Type Free Hanging
Cable GroupRG179
Fastening Type Thread
Frequency - Max DC-3GHz
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C

FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Aerospace.
