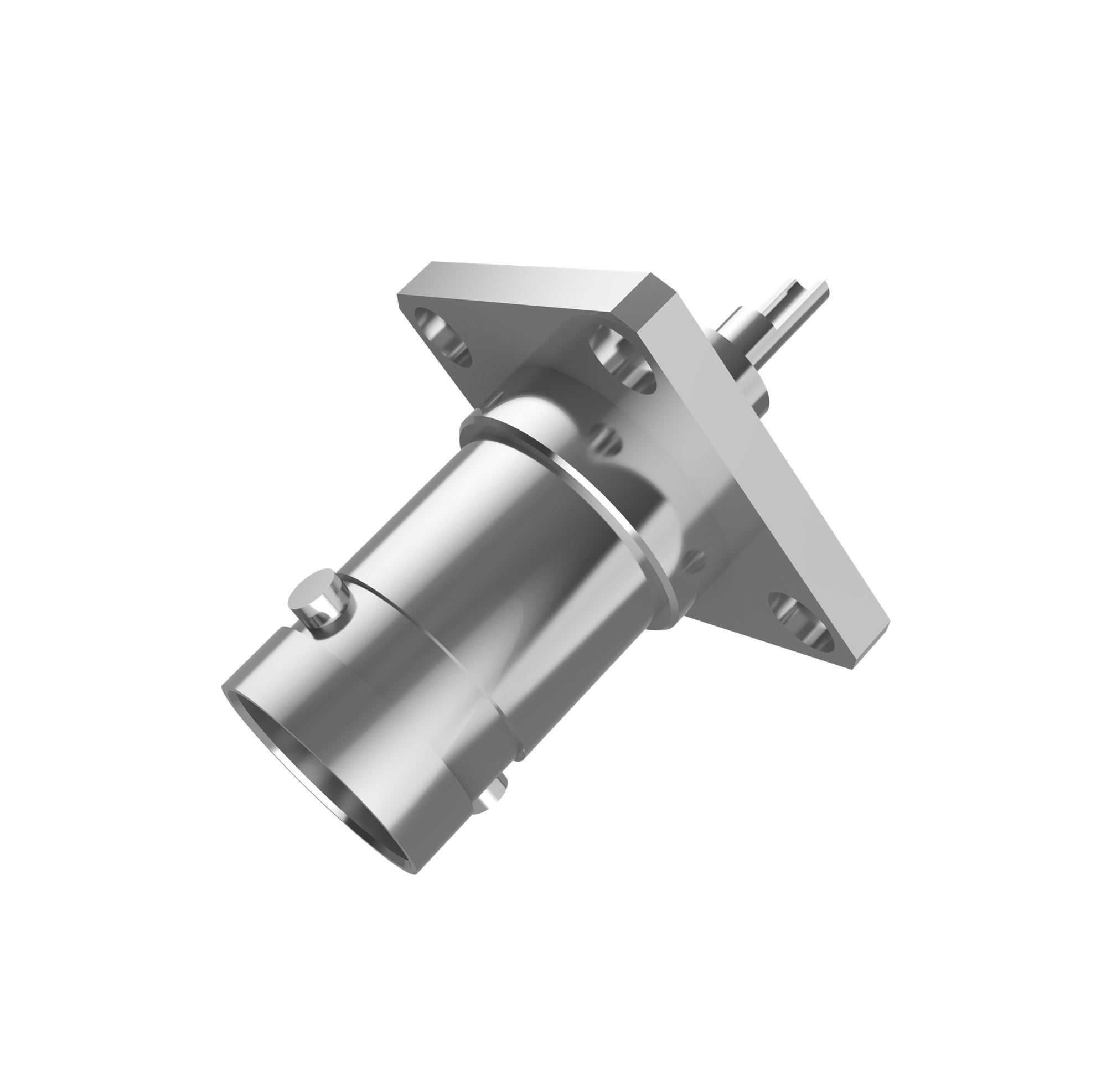

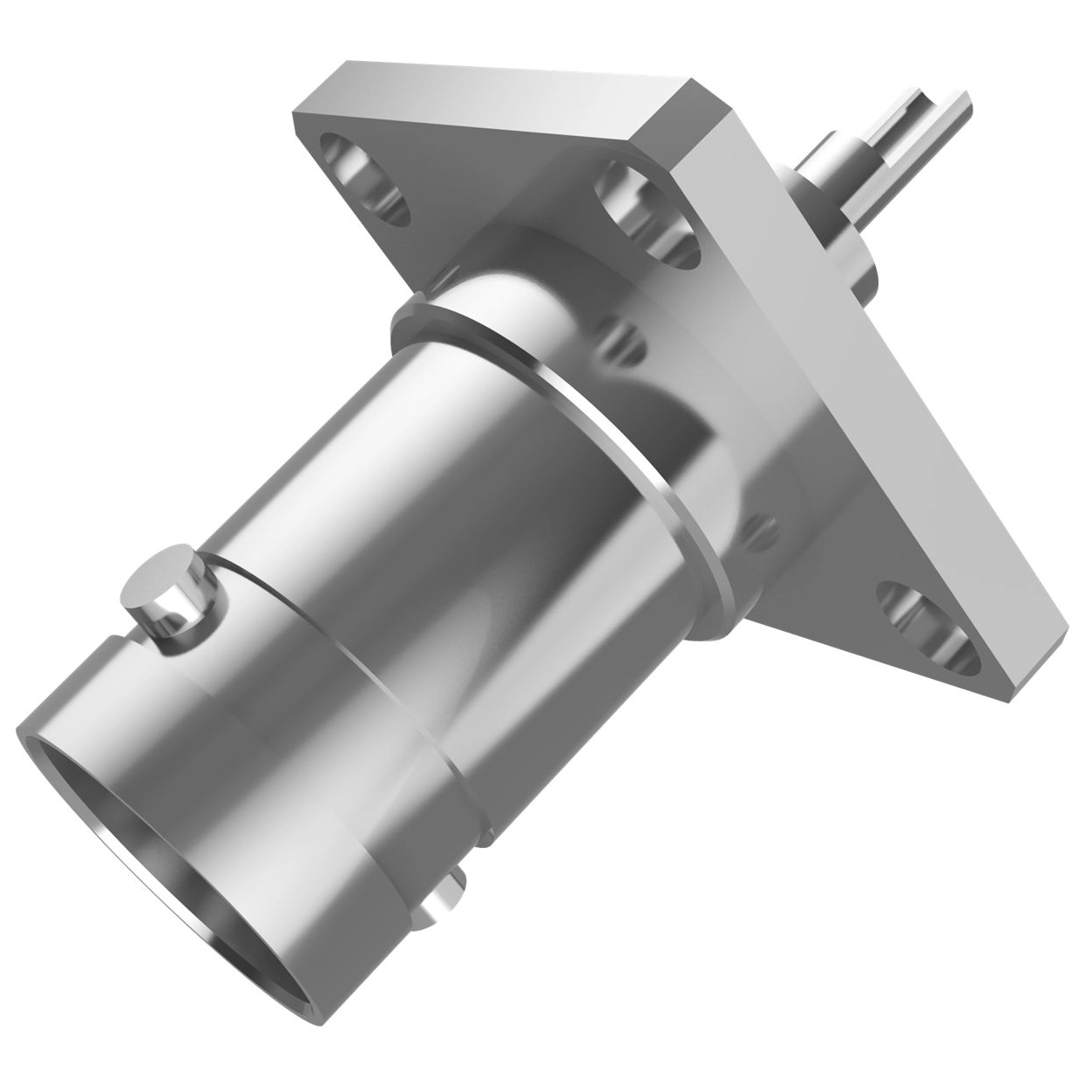

BNC Connector Female Solder Straight Flange Mount

The BNC is a bayonet-style connector with a positive locking mechanism that allows for rapid connection and disconnect. With merely a quarter rotation of the coupling nut, mating is accomplished. BNCs are suitable for a wide range of RG and industry standard cables in a variety of termination types, thanks to their traditional, durable design.

BNCs are available from LenoRF in a variety of configurations. BNC connectors are small, lightweight, and dependable, with impedance ranging from 50 to 75 ohm and commercial to military grade. The product range is completed by a comprehensive line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories.
  • 20-025
  • 82-5061-046-01
  • Female
  • Straight
  • 4 Hole Flange
  • Soldering
  • N/A
  • 82-5061-046-01.pdf
  • 82-5061-046-01.stp
Availability:
Quantity:



Part No82-5061-046-01
Connector Series BNC
Connector TypeFemale
Contact Termination Solder
Shield TerminationSolder
Impedance 75 Ohm
Mounting Type Free Hanging
Cable Group -
Fastening Type Thread
Frequency - Max DC-3GHz
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C
