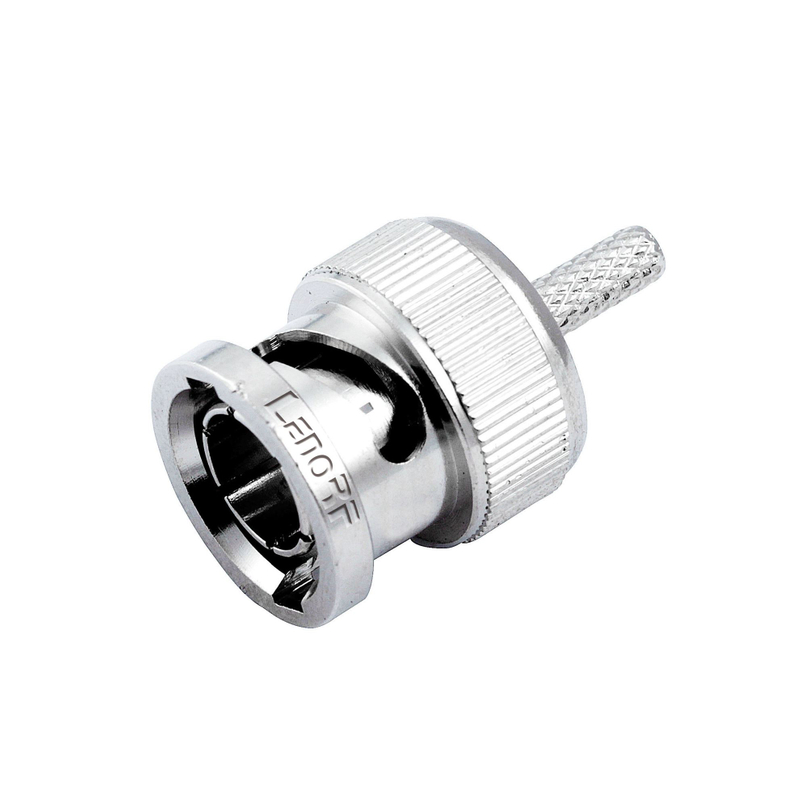

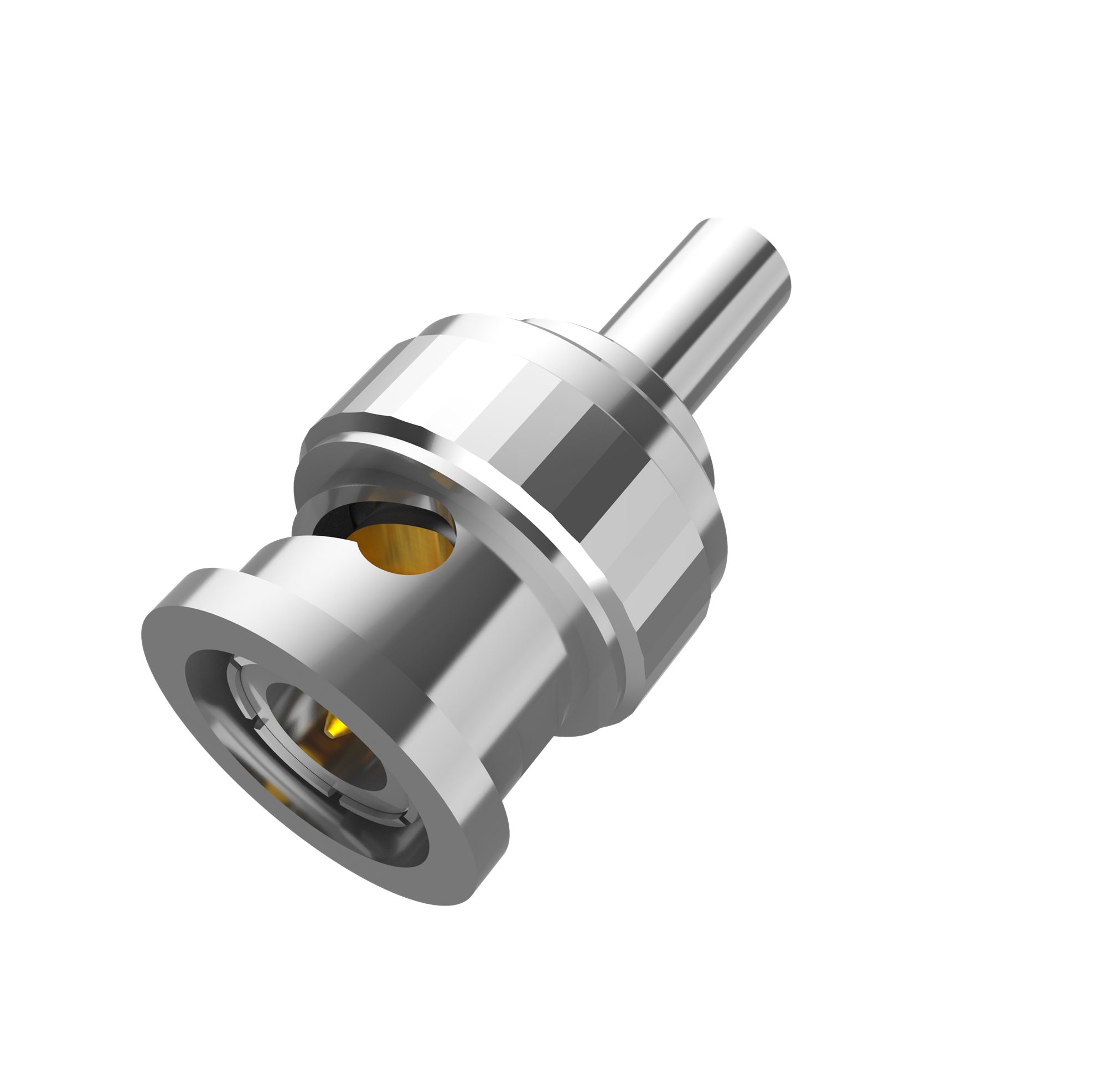

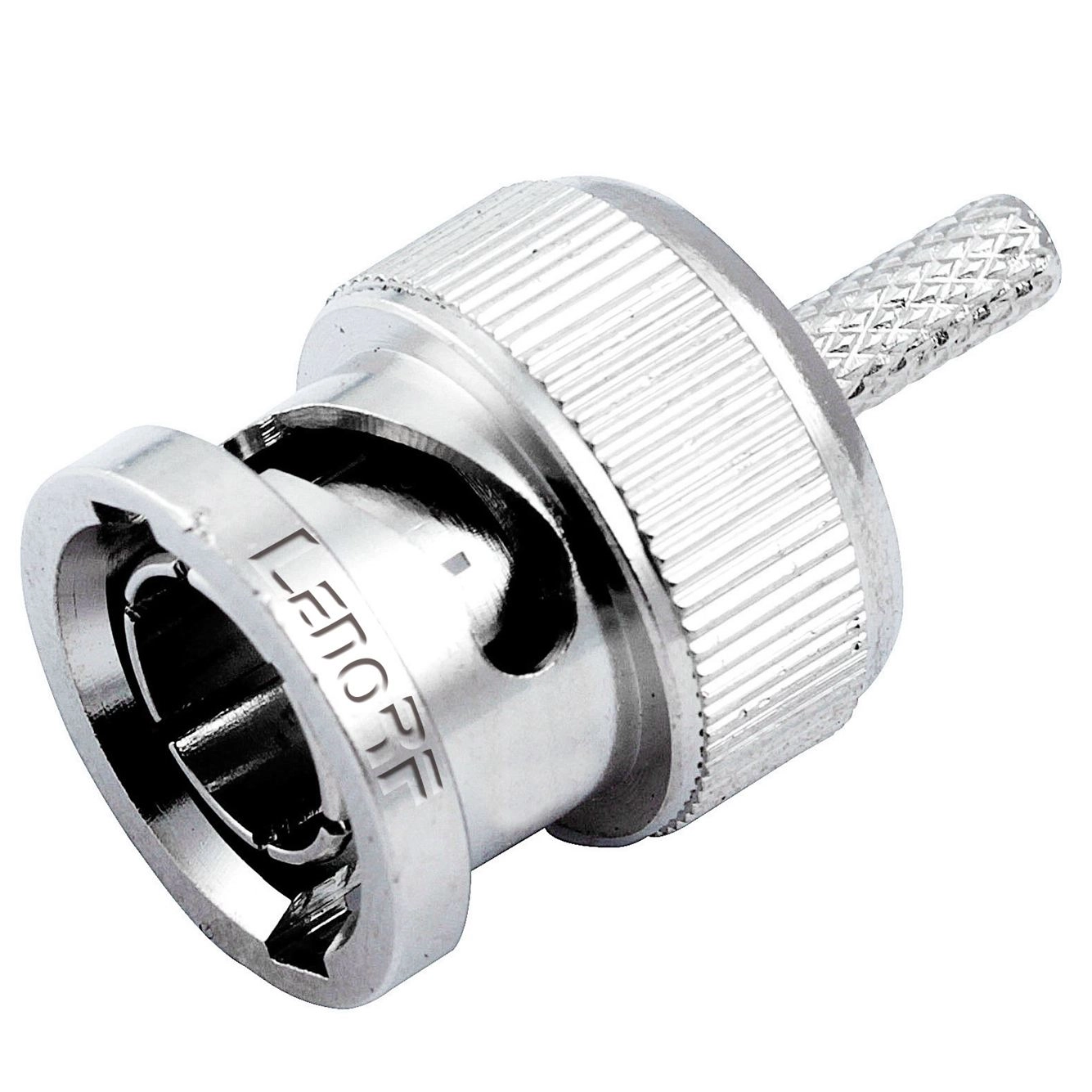

BNC Connector Plug Crimp Straight For ST212 Cable

The BNC is a bayonet-style connector with a positive locking mechanism that allows for rapid connection and disconnect. With merely a quarter rotation of the coupling nut, mating is accomplished. BNCs are suitable for a wide range of RG and industry standard cables in a variety of termination types, thanks to their traditional, durable design.

BNCs are available from LenoRF in a variety of configurations. BNC connectors are small, lightweight, and dependable, with impedance ranging from 50 to 75 ohm and commercial to military grade. The product range is completed by a comprehensive line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories.
  • 20-445

  • 82-7161-104-01

  • Male

  • Straight

  • Crimping

  • Crimping

  • ST212

  • 82-7161-104-01.pdf

  • 82-7161-104-01.stp

Availability:
Quantity:


Materials&Electroplating

Conduct

Brass/ Silver  Plating

Insulator

PTFE

Body

Brass /Ternary

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

75 OHMS

Frequency Range

0-3GHz

VSWR

≤1.30

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B
