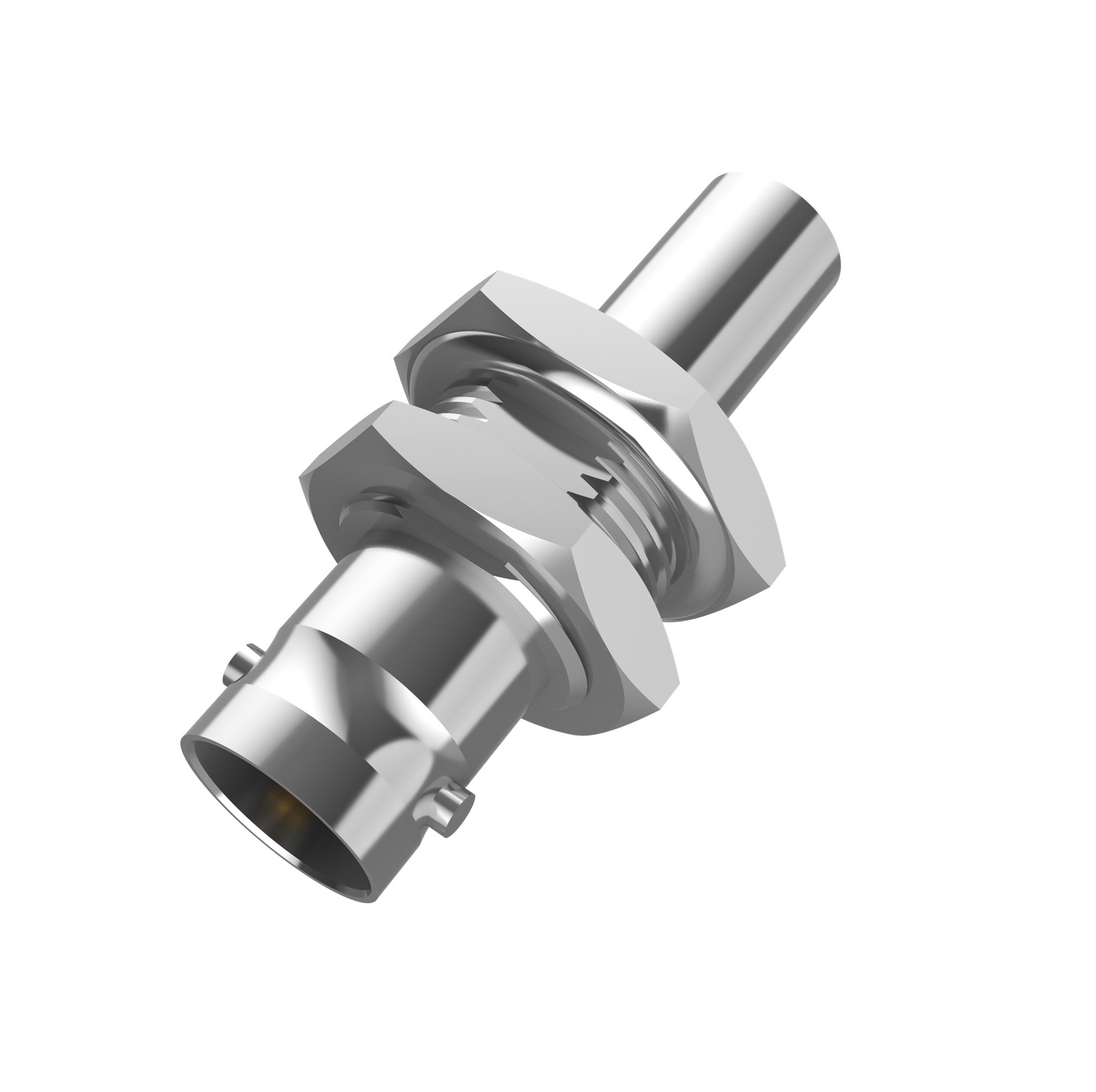

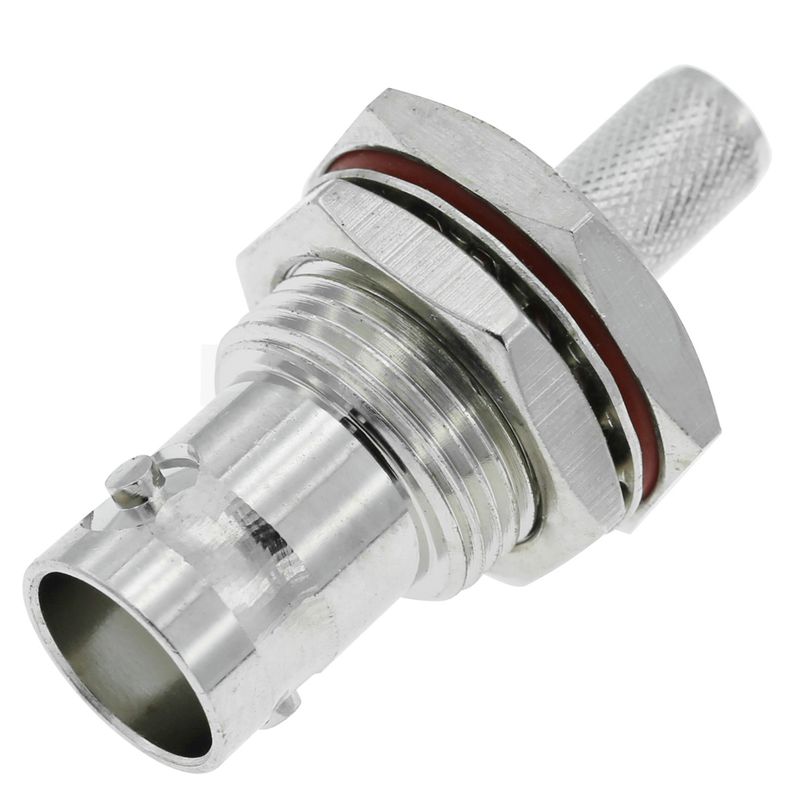

BNC Connector Female Crimp Bulkhead For RG59 Cable

The BNC connector is a bayonet-style connector with a positive locking mechanism that allows for rapid connection and disengagement. Only a quarter rotation of the coupling nut is required to accomplish mating. BNCs are suitable for a wide range of RG and industry standard cables, and may be terminated in a number of ways, thanks to their traditional, durable design.

BNCs are available from LenoRF in a variety of sizes and configurations. BNC connectors are small, light, and dependable, with impedance ranging from 50 to 75 ohms from commercial to military grade. The product line is completed by a broad range of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories.
  • 20-622
  • 82-7061-103-01
  • Female
  • Straight
  • Crimping
  • Crimping
  • RG59
  • 82-7061-103-01.pdf
  • 82-7061-103-01.stp
Availability:
Quantity:


Part No82-7061-103-01
Connector Series BNC
Connector TypeFemale
Contact Termination Solder
Shield TerminationCrimp
Impedance 75 Ohm
Mounting Type Free Hanging
Cable Group RG59
Fastening Type Thread
Frequency - Max DC-3GHz
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C
