Overview

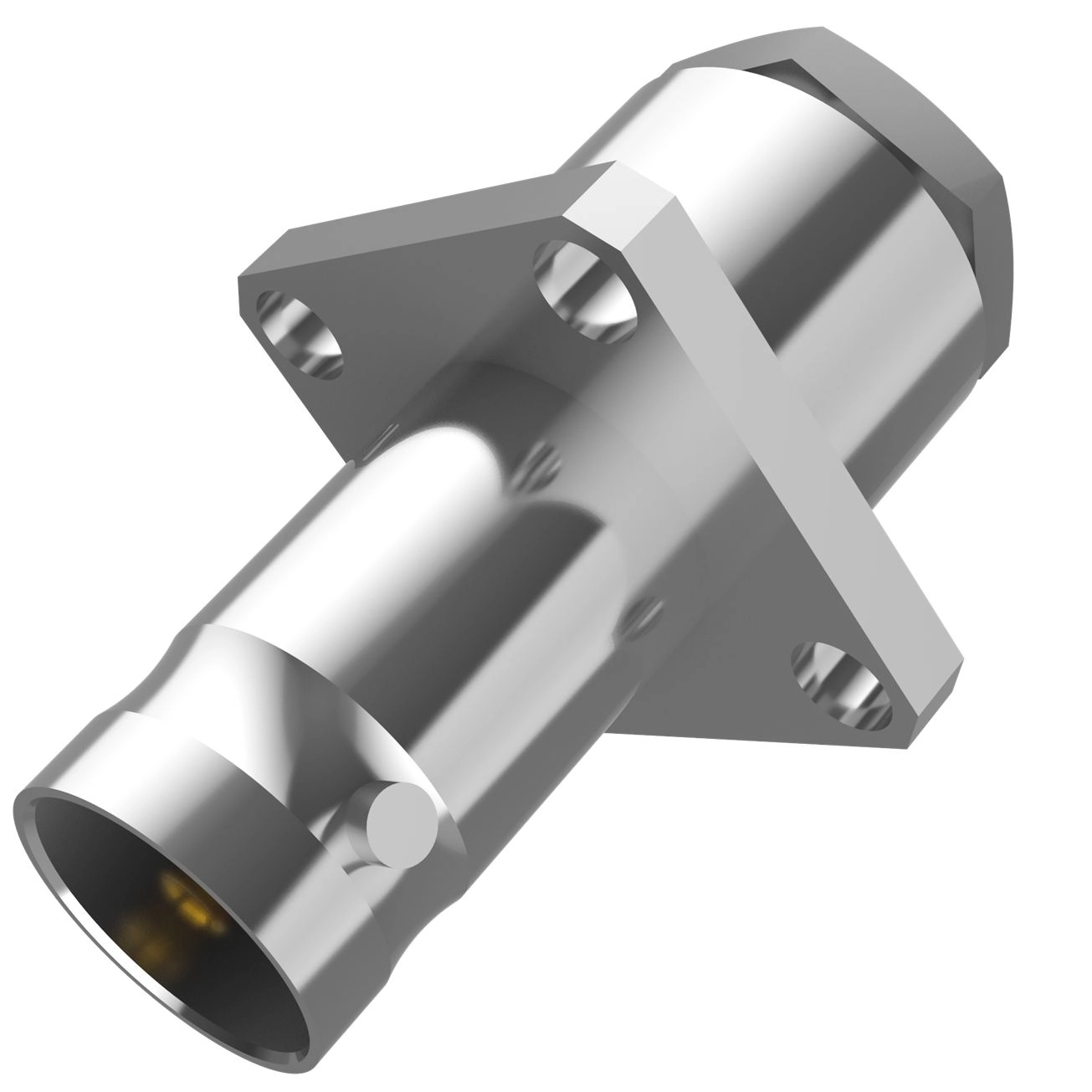

The BNC connector is a miniature, quick-connect RF coaxial connector widely used for analog and digital signal applications. It features a bayonet-style coupling mechanism that allows secure, reliable connections with a simple twist-and-lock action. BNC connectors are typically available in 50ohm and 75ohm impedance versions, supporting frequencies up to several GHz depending on the design. They are commonly used in test equipment, broadcast systems, video applications, instrumentation, RF/microwave test benches and calibration equipment,network analyzers, spectrum analyzers, and oscilloscopes and networking. BNC connectors are valued for their durability, ease of use, and consistent electrical performance. Both straight and right-angle versions, as well as PCB-mount options, are available to accommodate diverse layouts.
Features
The bayonet coupling mechanism ensures secure, fast connection and disconnection.
Available in 50 ohm and 75ohm impedance options to match system requirements.
Suitable for military, industrial, and commercial applications.
Compatible with a wide range of common BNC coaxial cable types.
Offered in both male and female configurations for flexible system design.
Applications
Base Stations
Computers/LANs
Cable Modems
Broadband
network analyzers, spectrum analyzers, and oscilloscopes
RF/microwave test benches and calibration equipment
missile guidance, drones, and satellite payload systems
Specification
Cable Type | RG174/RG316 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Plating | Gold |
| Contact Material | Phosphor bronze |
| Insulator Material | PTFE |
| Contact Termination | Clamp |
| Coupling Mechanism | Bayonet |
HS Code | 8636909000 |
Frequency (Max GHz) | 4 |
Gender | Female |
Impedance (Ohms) | 50 |
Size Category | Medium |
Orientation | Straight |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 IEC 61169-63 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
What is the difference between RF connectors and coaxial connectors?
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
