Overview

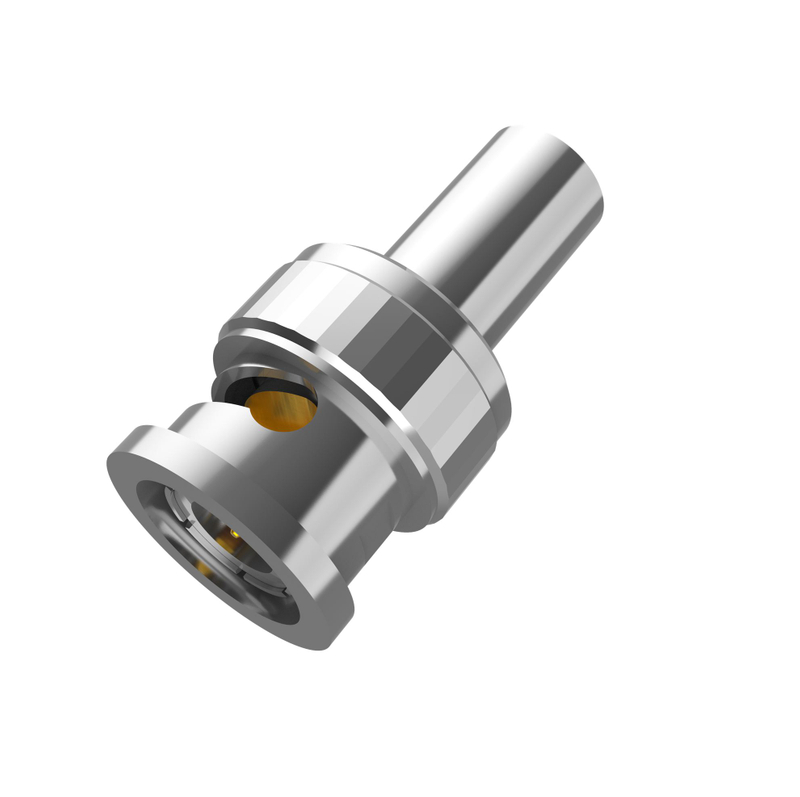

The BNC connector is a miniature, quick-connect RF coaxial connector widely used for analog and digital signal applications. It features a bayonet-style coupling mechanism that allows secure, reliable connections with a simple twist-and-lock action. BNC connectors are typically available in 50ohm and 75ohm impedance versions, supporting frequencies up to several GHz depending on the design. They are commonly used in test equipment, broadcast systems, video applications, instrumentation, robotics and industrial automation requiring RF links,smart meters and remote monitoring devices and networking. BNC connectors are valued for their durability, ease of use, and consistent electrical performance. Both straight and right-angle versions, as well as PCB-mount options, are available to accommodate diverse layouts.
Features
The bayonet coupling mechanism ensures secure, fast connection and disconnection.
Available in 50 ohm and 75ohm impedance options to match system requirements.
Suitable for military, industrial, and commercial applications.
Compatible with a wide range of common BNC coaxial cable types.
Offered in both male and female configurations for flexible system design.
Applications
Base Stations
Computers/LANs
Cable Modems
Broadband
smart meters and remote monitoring devices
robotics and industrial automation requiring RF links
wireless sensor networks and IoT gateways
Specification
Cable Type | LMR240 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Plating | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Contact Termination | Crimp |
| Coupling Mechanism | Bayonet |
HS Code | 8636909000 |
Frequency (Max GHz) | 4 |
Gender | Male |
Impedance (Ohms) | 50 |
Size Category | Medium |
Orientation | Straight |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 IEC 61169-63 |
