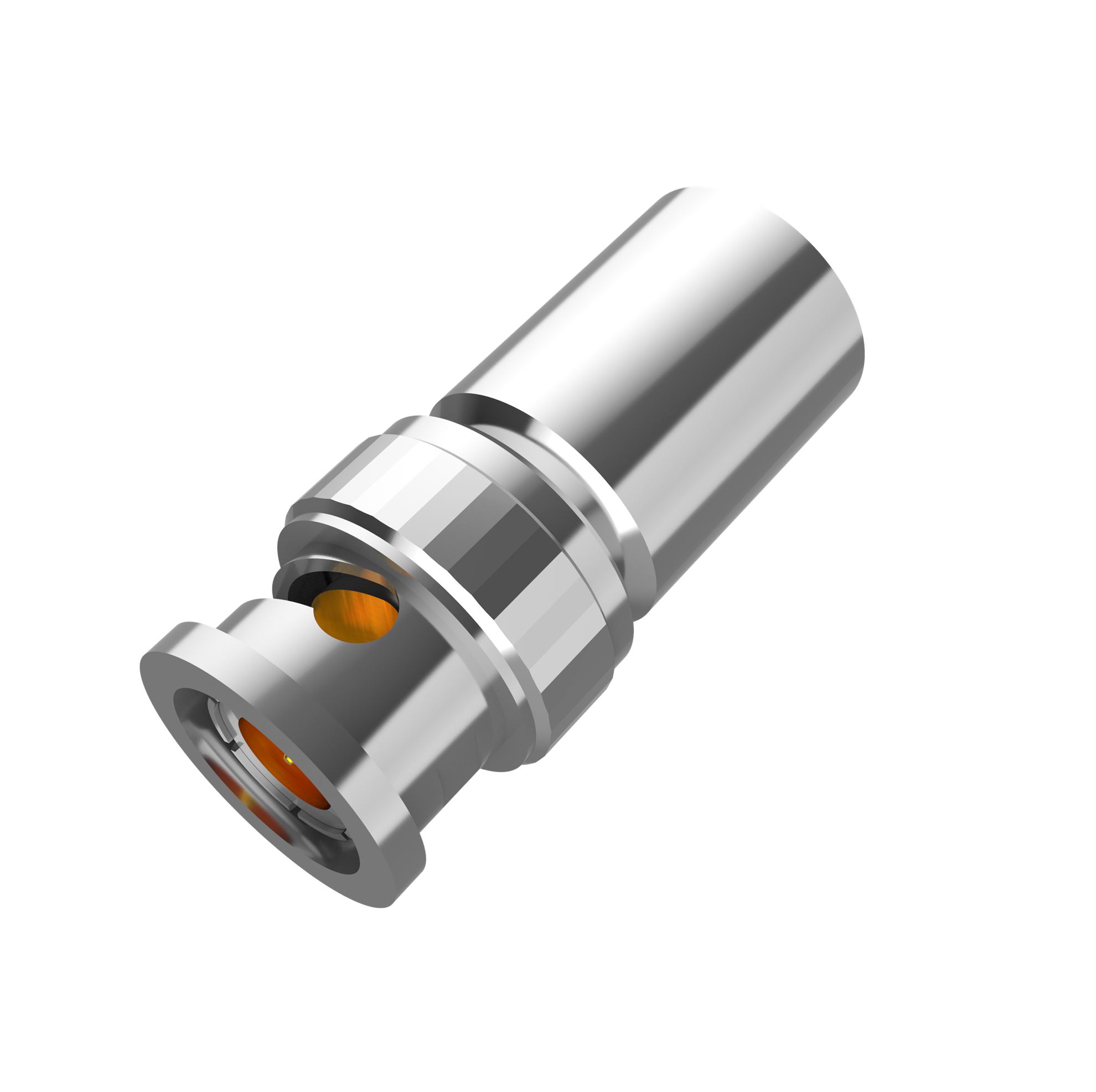

BNC Connector Plug Crimp Straight For RG11 Cable

The BNC is a bayonet-style connection with a positive locking mechanism that allows for rapid connect and disengagement. With just a quarter rotation of the coupling nut, mating is accomplished. BNCs have a traditional, durable design that can handle a wide range of RG and industry standard cables, as well as a number of termination methods.

LenoRF provides a complete array of BNCs in a variety of configurations. BNC connectors range in impedance from 50 to 75 ohms, and are available in commercial and military grades. They are small, light, and dependable. The product range includes printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and various accessories.
  • 20-799

  • 82-7161-102-01

  • Male

  • Straight

  • Crimping

  • Crimping

  • RG11

  • 82-7161-102-01.pdf

  • 82-7161-102-01.stp

Availability:
Quantity:


Materials&Electroplating

Conduct

Brass/ Silver  Plating

Insulator

PTFE

Body

Brass /Ternary

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.30

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B
