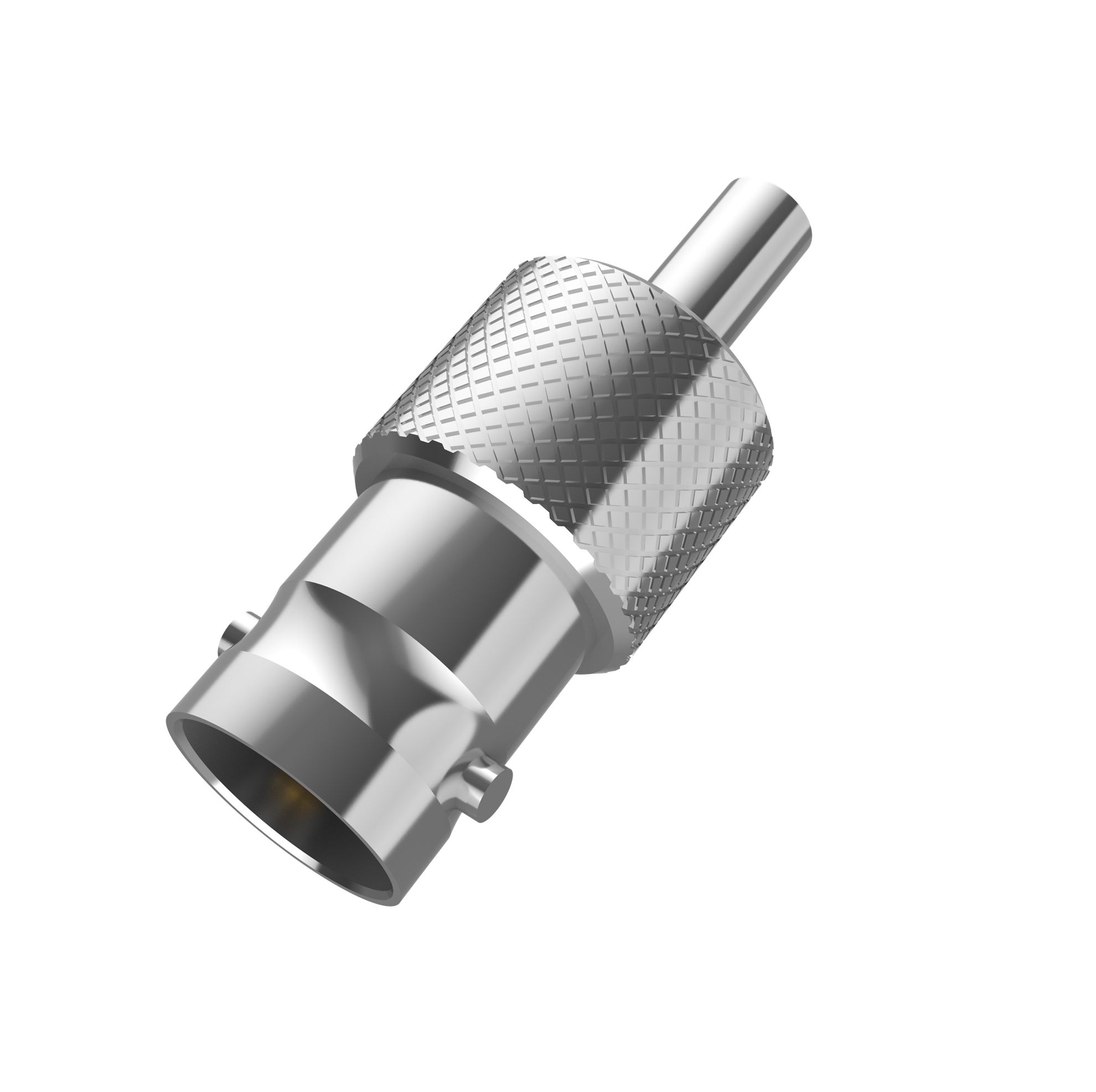

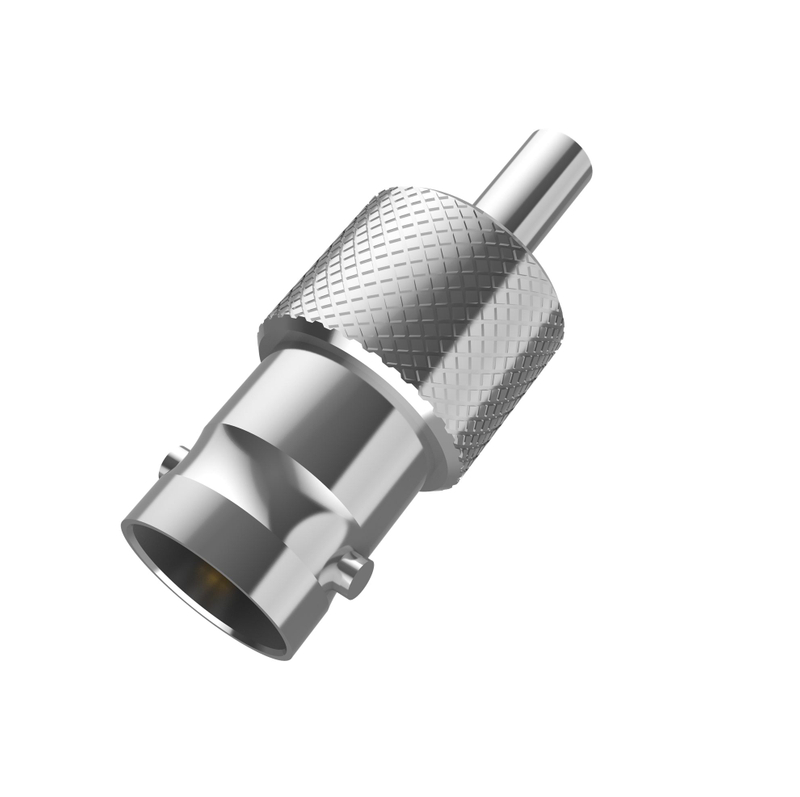

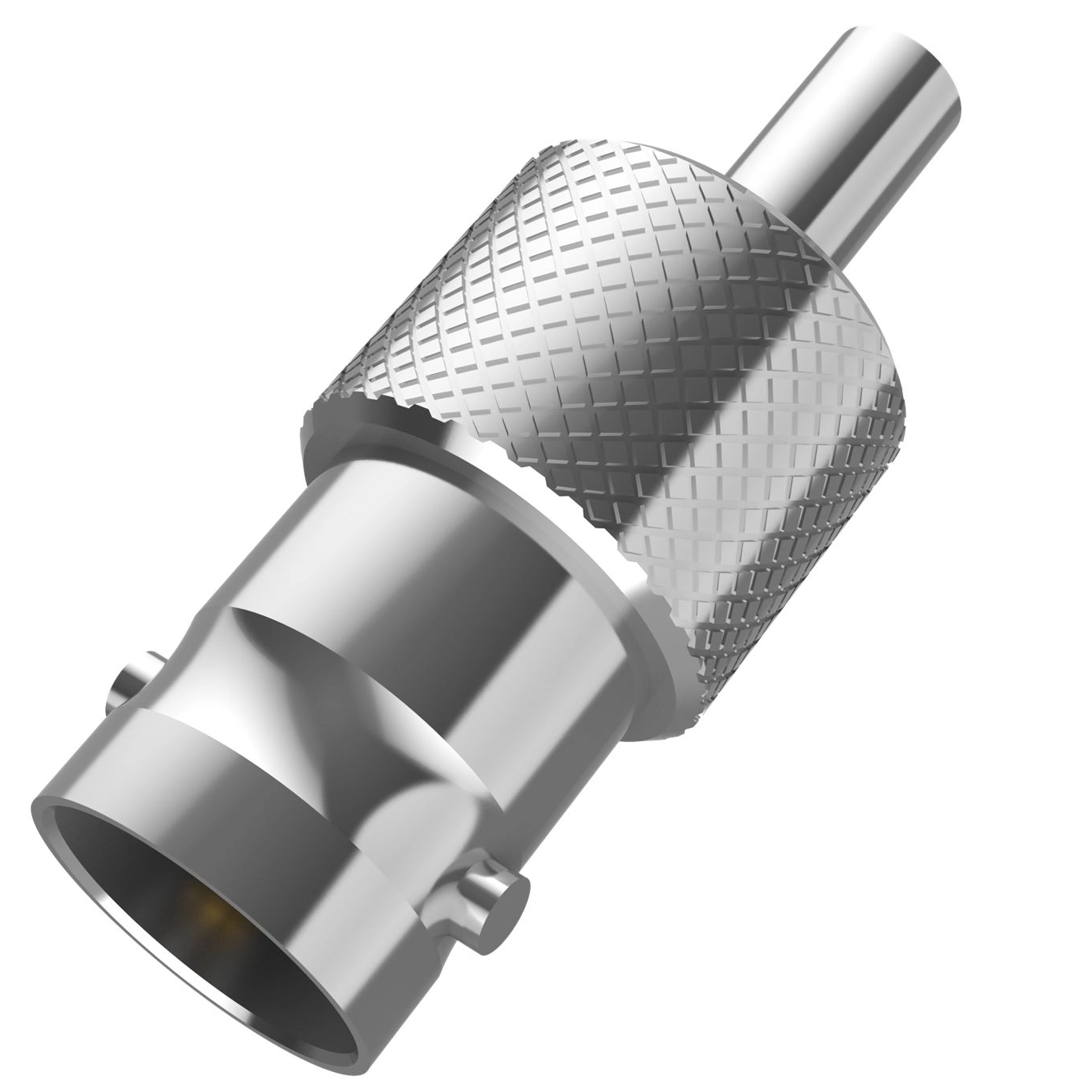

BNC Connector Female Crimp Straight For RG179 Cable

The BNC is a bayonet-style connection with a positive locking mechanism that allows for rapid connect and disengagement. With just a quarter rotation of the coupling nut, mating is accomplished. BNCs have a traditional, durable design that can handle a wide range of RG and industry standard cables, as well as a number of termination methods.

LenoRF provides a complete array of BNCs in a variety of configurations. BNC connectors range in impedance from 50 to 75 ohms, and are available in commercial and military grades. They are small, light, and dependable. The product range includes printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and various accessories.
  • 20-776
  • 82-7061-104-03
  • Female
  • Straight
  • Crimping
  • Crimping
  • RG179
  • 82-7061-104-03.pdf
  • 82-7061-104-03.stp
Availability:
Quantity:


Part No 82-7061-104-03
Connector Series BNC
Connector TypeFemale
Contact Termination Solder
Shield Termination Clamp
Impedance 75 Ohm
Mounting Type Free Hanging
Cable GroupRG179
Fastening Type Thread
Frequency - Max DC-3GHz
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C
