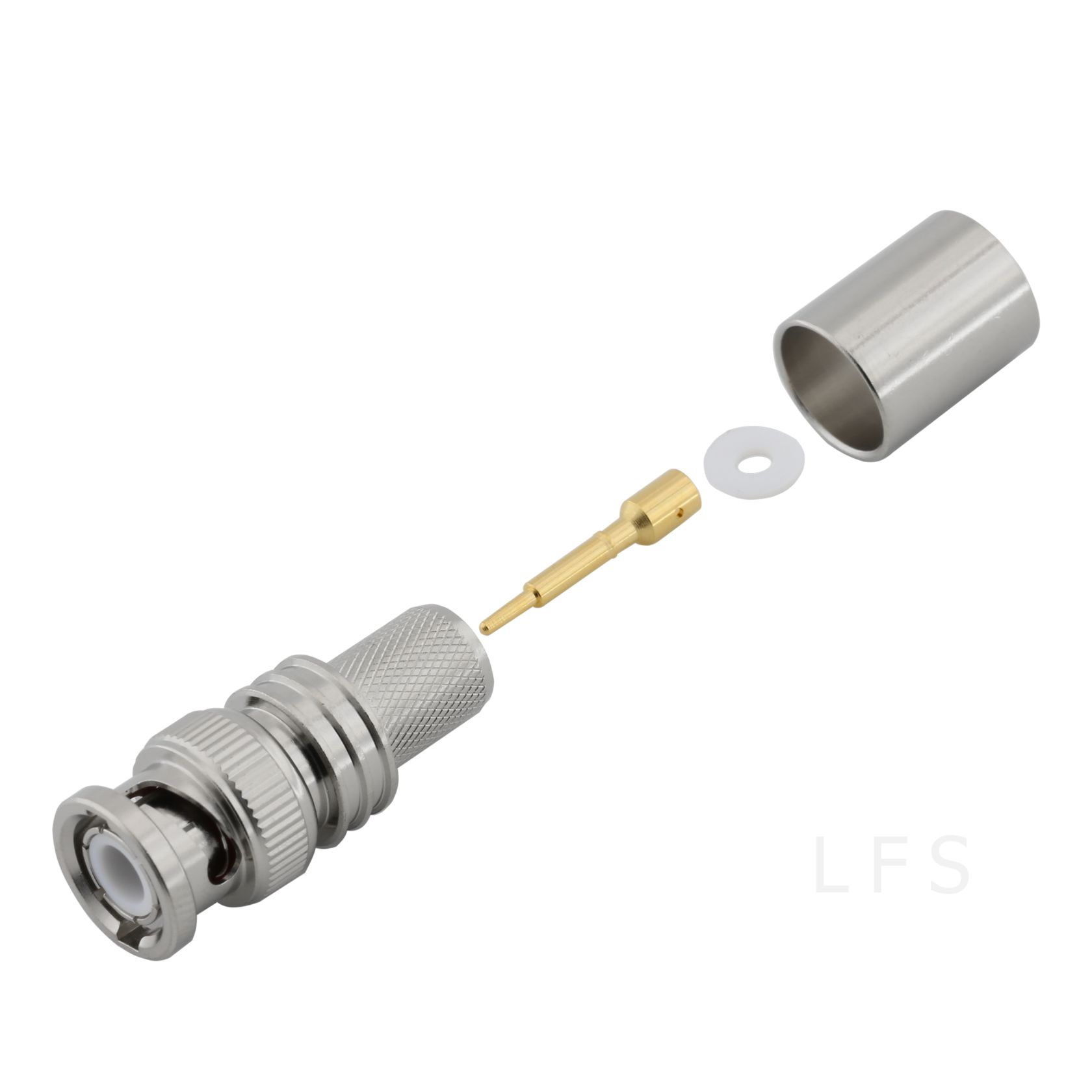

Overview
The BNC connector is a miniature, quick-connect RF coaxial connector widely used for analog and digital signal applications. It features a bayonet-style coupling mechanism that allows secure, reliable connections with a simple twist-and-lock action. BNC connectors are typically available in 50ohm and 75ohm impedance versions, supporting frequencies up to several GHz depending on the design. They are commonly used in test equipment, broadcast systems, video applications, instrumentation, towers, repeaters, routers, and access points for reliable RF signal transfer,5G, LTE, Wi-Fi, and satellite communication systems and networking. BNC connectors are valued for their durability, ease of use, and consistent electrical performance. Both straight and right-angle versions, as well as PCB-mount options, are available to accommodate diverse layouts.
Features
The bayonet coupling mechanism ensures secure, fast connection and disconnection.
Available in 50 ohm and 75ohm impedance options to match system requirements.
Suitable for military, industrial, and commercial applications.
Compatible with a wide range of common BNC coaxial cable types.
Offered in both male and female configurations for flexible system design.
Applications
Base Stations
Computers/LANs
Cable Modems
Broadband
5G, LTE, Wi-Fi, and satellite communication systems
towers, repeaters, routers, and access points for reliable RF signal transfer
base stations, antennas, and feeder cables
Specification
Cable Type | LMR400 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Plating | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Contact Termination | Crimp |
| Coupling Mechanism | Bayonet |
HS Code | 8636909000 |
Frequency (Max GHz) | 4 |
Gender | Male |
Impedance (Ohms) | 50 |
Size Category | Medium |
Orientation | Straight |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 IEC 61169-63 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
How do environmental conditions affect RF connectors?
Temperature extremes can cause expansion/shrinkage and change performance. Humidity and salt spray may cause corrosion (use stainless steel or weatherproof designs). Vibration may loosen bayonet types — use threaded connectors in harsh environments.
