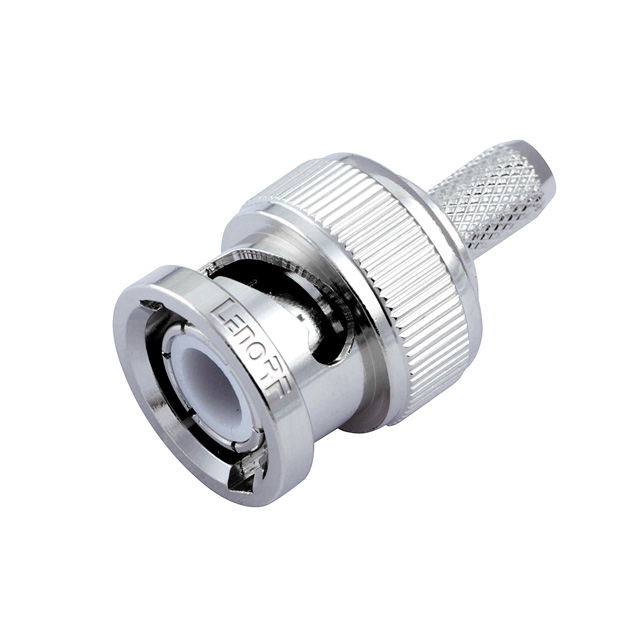

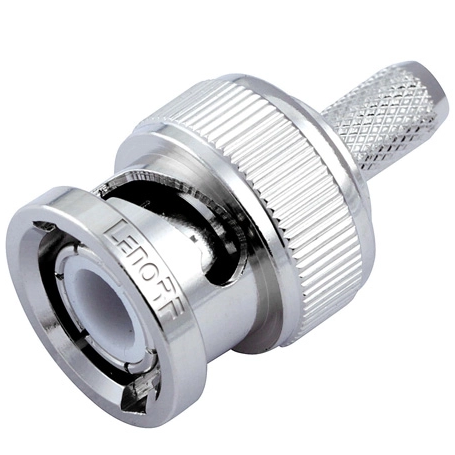

BNC Connector Plug Crimp Straight For RG58 Cable

The BNC connector is a bayonet-style connector with a positive locking mechanism that allows for rapid connection and disengagement. Only a quarter rotation of the coupling nut is required to accomplish mating. BNCs are suitable for a wide range of RG and industry standard cables, and may be terminated in a number of ways, thanks to their traditional, durable design.

BNCs are available from LenoRF in a variety of sizes and configurations. BNC connectors are small, light, and dependable, with impedance ranging from 50 to 75 ohms from commercial to military grade. The product line is completed by a broad range of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories.
  • 20-021
  • 82-5161-112-01
  • Male
  • Straight
  • Crimping
  • Crimping
  • RG58
  • 82-5161-112-01.pdf
  • 82-5161-112-01.stp
Availability:
Quantity:


Materials&Electroplating

Conduct

Brass/ Silver  Plating

Insulator

PTFE

Body

Brass /Ternary

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.30

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B
