20-620
82-5161-217-01
Male
Straight
Clamping
Crimping
RG213 RG214
Availability: | |
---|---|
Quantity: | |

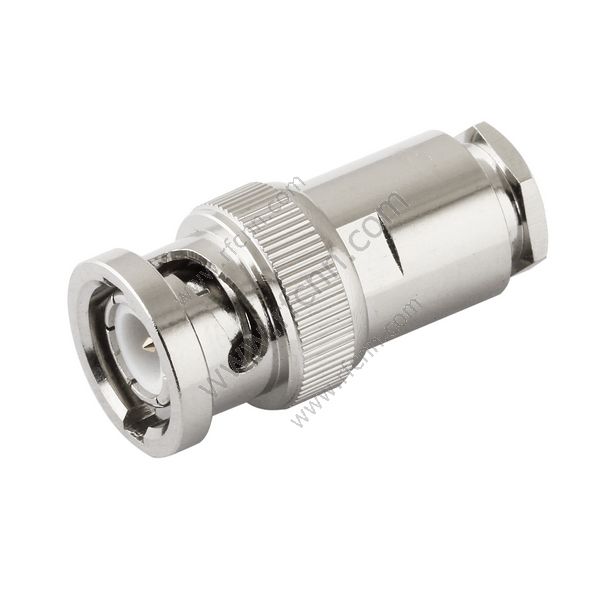

Part No | 82-5161-217-01 |
---|---|
Connector Series | BNC |
Connector Type | male |
Contact Termination | Solder |
Shield Termination | Clamp |
Impedance | 75 Ohm |
Mounting Type | Free Hanging |
Cable Group | RG213 |
Fastening Type | Thread |
Frequency - Max | DC-3GHz |
Body Material | Brass |
Body Finish | Nickel |
Center Contact Material | Brass |
Center Contact Finish | Gold |
Dielectric Material | Polytetrafluorethylene (PTFE) |
Voltage Rating | 375V |
Working Temperature | -65°C ~ 165°C |
Part No | 82-5161-217-01 |
---|---|
Connector Series | BNC |
Connector Type | male |
Contact Termination | Solder |
Shield Termination | Clamp |
Impedance | 75 Ohm |
Mounting Type | Free Hanging |
Cable Group | RG213 |
Fastening Type | Thread |
Frequency - Max | DC-3GHz |
Body Material | Brass |
Body Finish | Nickel |
Center Contact Material | Brass |
Center Contact Finish | Gold |
Dielectric Material | Polytetrafluorethylene (PTFE) |
Voltage Rating | 375V |
Working Temperature | -65°C ~ 165°C |
