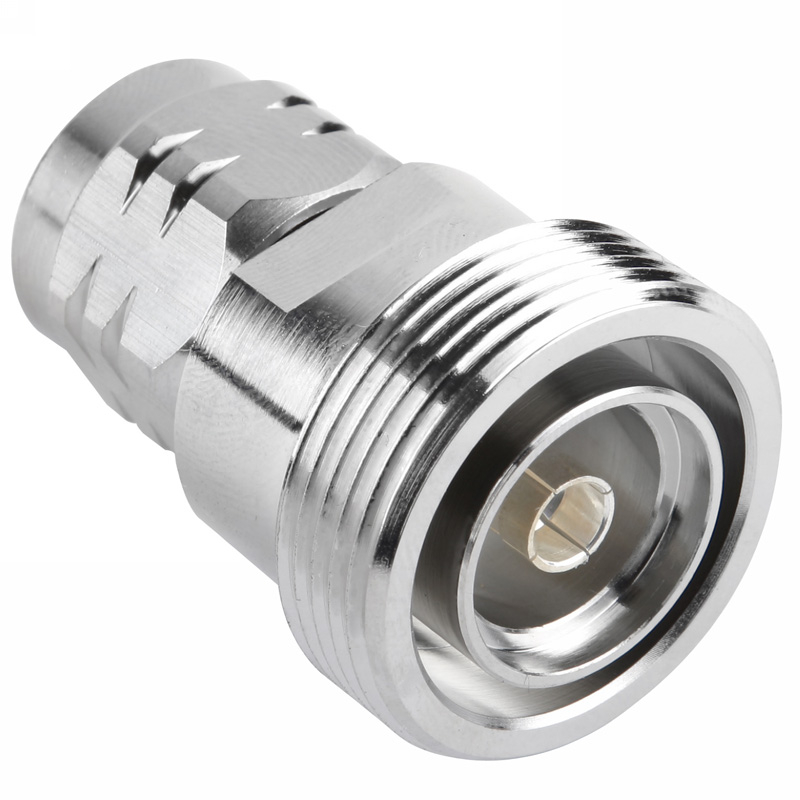

DIN 7/16 RF Connector 10W terminator

  • DIN 7/16 RF Connector 10W terminator
  • DIN 7/16 RF Connector 5W terminator
  • Microwave Terminator - N FEMALE-5W
  • Microwave Terminator - UHF MALE -3W
  • Microwave Terminator - N MALE -2W

Product Short Description:

DIN 7/16 RF Connector 10W terminator

Product Description


Part No TER-DIN-10
Description DIN 7/16 RF Connector 5W terminator
Connector Series DIN
Connector Type Female
Contact Termination -
Shield Termination -
Impedance 50 Ohm
Mounting Type Terminator
Cable Group -
Fastening Type Thread
Frequency - Max DC-18GHz
Body Material Brass
Body Finish Gold
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C

Part Name: DIN 7/16 type RF Connector
Material: Brass, Teflon, beryllium brass.
Plating: Golden, silver, nickel, triple-metal


We also make RF Connectors, Cable Assemblies, 7/16 DIN RF Connectors,
N RF Connectors, FAKRA SMB RF Connectors, IPX RF Connectors,
MCX RF Connectors, MMCX RF Connectors, SMA RF Connectors,
SSMA RF Connectors, SMB RF Connectors, SSMB RF Connectors,
SMC RF Connectors, SMZ RF Connectors, TNC RF Connectors,
1.0/2.3 RF CONNECTORS, 1.6/5.6 RF Connectors, BNC RF Connectors,
F RF Connectors, FME RF Connectors, UHF RF Connectors, Mini-UHF RF Connectors, RF ADAPTER, Attenuator of RF Connectors, Terminator of RF Connectors, Surge protector, Microwave Device-Cavity Power Dividing Coupler, Microstrip Power Dividing, Combiner, Bridge.
