How to Select Industrial 2.4mm Connectors

Views: 0     Author: Site Editor     Publish Time: 2023-02-23      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Industrial 2.4mm connectors as very important components are widely used in all walks of life. Its proper use, for the protection of their performance and service life, is important, if used improperly, will affect the normal use of the connector or cause product failure. The following will describe the use of industrial connectors precautions for your reference and use.

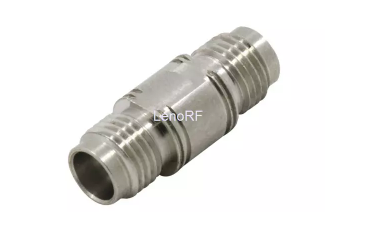

2.4mm connectors (2)

Here is the content list:

l Termination precautions

l Check before plugging

l Plugging and unplugging opreation


Termination precautions

Industrial 2.4mm connector termination should be strictly in accordance with the corresponding termination requirements for termination and inspection, and according to the corresponding contact serial number for termination. The maximum thickness of the insulation layer between the selected cable should match the distance between the contact pieces, and the cable core and the contact piece terminals match.

Cleaning of the 2.4mm connector, including the cleaning of the contact parts, can use a cloth dipped in anhydrous ethanol scrubbing, to be used after drying. Do not allow the use of chemical solvents such as acetone that have a harmful effect on the electrical connector.Aero-plug connectors in a non-inserted state must be covered with a matching dust cover or other dust-proof measures, respectively.


Check before plugging

The industrial 2.4mm connector model, code, number, plugging position, and direction should be in line with the design, and process documentation requirements. The cable should be free of bending, with no damage to the outer skin. The aviation plug 2.4mm connector shell and butt interface should be no deformation, no cracks, no thread wear, no loose or defective fasteners, and no loss of plating. The locking device and sealing ring should be intact and undamaged. Pins, jacks, and other interfaces should not have foreign objects or liquids, etc. Different 2.4mm connectors have different precautions, only to understand the use of each connector only method we can achieve safe production.


Plugging and unplugging operation

Before plugging, should check whether the plug to be plugged and socket code, interface, etc. correspond to the same, and accurate positioning. Industrial 2.4mm connectors should be pushed or screwed into the process, the plug and socket should be aligned parallel to the docking surface, and then pushed or screwed into place along the axis and locked. For the use of a heavy cable aerial plug connector, the actual application of the cable should be fixed to prevent the cable from sagging resulting in the connector can not be pulled out or damaged. Connector plugging and unplugging, should hold its body for plugging and unplugging, do not allow the cable outside the back cover to grasp the operation. As connector repair workers, more should master the use of common connectors. Commonly used are 2.4mm connectors and 2.4mm RF connectors, which need to pay more attention to operational safety.


The only way to master the correct use of industrial 2.4mm connectors, in order to avoid pitfalls in the actual use of error prevention, and be comfortable. But the premise is that we must have a quality, strong performance of industrial connectors. Choose industrial connectors, the first is to screen a strong, appealing brand. Zhejiang LenoRF Industry co. LTD focus on the production of connectors, technical strength is beyond doubt, and the quality of the product has more guarantee force.


Our company, Zhejiang LenoRF Industry co. LTD, occupies an area of 30 hectares and is equipped with world class equipment to make millimeter wave connectors and phase stable cables. We specialize in coaxial connectors, cable assembly, and passive devices. Our current products are the latest millimeter wave connector and phase stable cable on the market.
