Overview

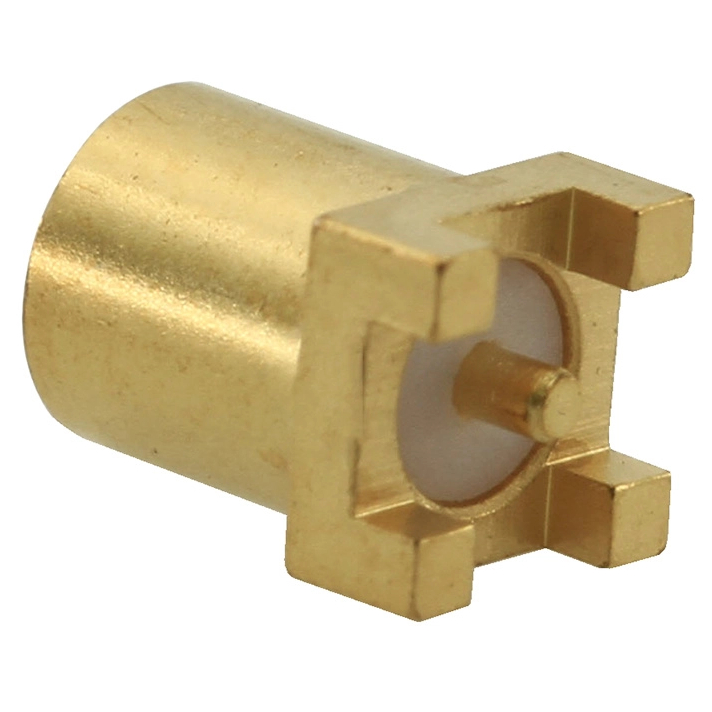

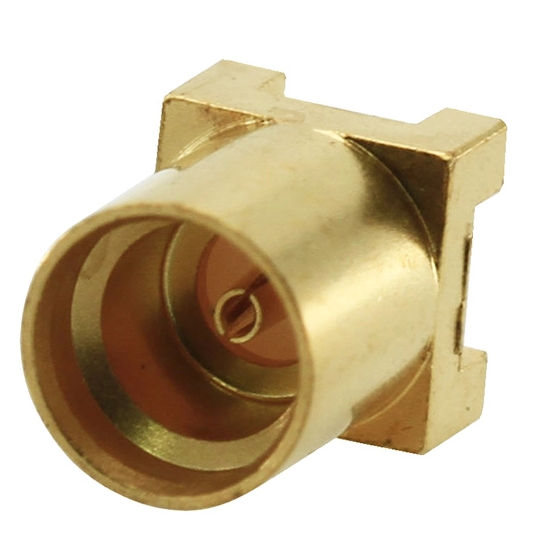

The MMCX (Micro-Miniature Coaxial) connector series is a compact version of the MCX, designed for applications where space is limited. It features a 50 ohms impedance and broadband performance from DC to 6 GHz. MMCX connectors offer secure, fast, and easy snap-on/snap-off coupling, simplifying installation and maintenance for applications: ,robotics and industrial automation requiring RF links .Their smaller footprint compared to MCX makes them ideal for dense system layouts, and they are available in a wide range of configurations to suit various design needs. Like the MCX series, MMCX connectors comply with the European CECC 22000 standard, ensuring reliable performance and consistent quality across applications.
Features
Provides broadband performance with minimal signal reflection. A high-quality, cost-effective solution for a variety of applications. Snap-on mating allows quick connection and disconnection, reducing installation time. Meets European CECC 22000 specifications for reliable performance. Available in straight and right-angle plugs, as well as printed circuit board connector configurations.
Applications
Specification
Body Plating | Gold |
Body Material | Brass |
Cable Type | N/A |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Contact Termination | Solder |
Coupling Mechanism | Push-on |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Gender | Female |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Micro-Miniature |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | CECC 22220,IEC 61169-52 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
What is the difference between RF connectors and coaxial connectors?
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
