Overview
The MMCX (Micro-Miniature Coaxial) connector series is a compact version of the MCX, designed for applications where space is limited. It features a 50 ohm impedance and broadband performance from DC to 6 GHz. MMCX connectors offer secure, fast, and easy snap-on/snap-off coupling, simplifying installation and maintenance for applications: RF ablation, telemetry, and diagnostic tools,patient monitoring systems with wireless connectivity .Their smaller footprint compared to MCX makes them ideal for dense system layouts, and they are available in a wide range of configurations to suit various design needs. Like the MCX series, MMCX connectors comply with the European CECC 22000 standard, ensuring reliable performance and consistent quality across applications.
Features
Provides broadband performance with minimal signal reflection. A high-quality, cost-effective solution for a variety of applications. Snap-on mating allows quick connection and disconnection, reducing installation time. Meets European CECC 22000 specifications for reliable performance. Available in straight and right-angle plugs, as well as printed circuit board connector configurations.
Applications
Antennas
Radio Boards
Instrumentation
Broadband
patient monitoring systems with wireless connectivity
RF ablation, telemetry, and diagnostic tools
MRI, CT, and ultrasound imaging devices
Specification
Body Plating | Gold |
Body Material | Brass |
Cable Type | RG405 |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Solder |
Coupling Mechanism | Push-on |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Gender | Male |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |

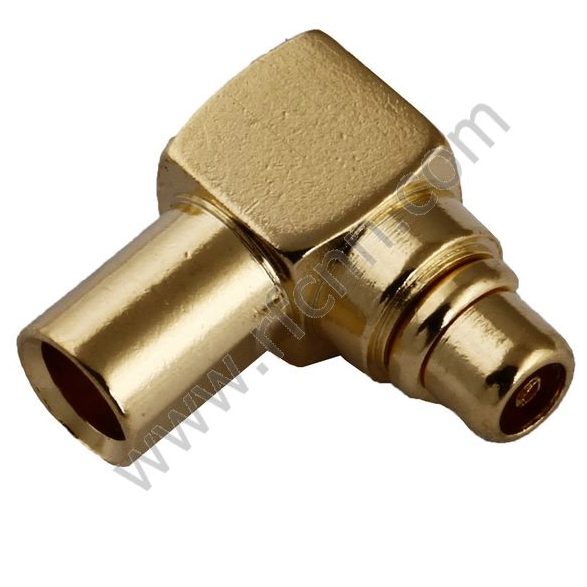

Orientation | Right angle |
Size Category | Micro-Miniature |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | CECC 22220,IEC 61169-52 |
