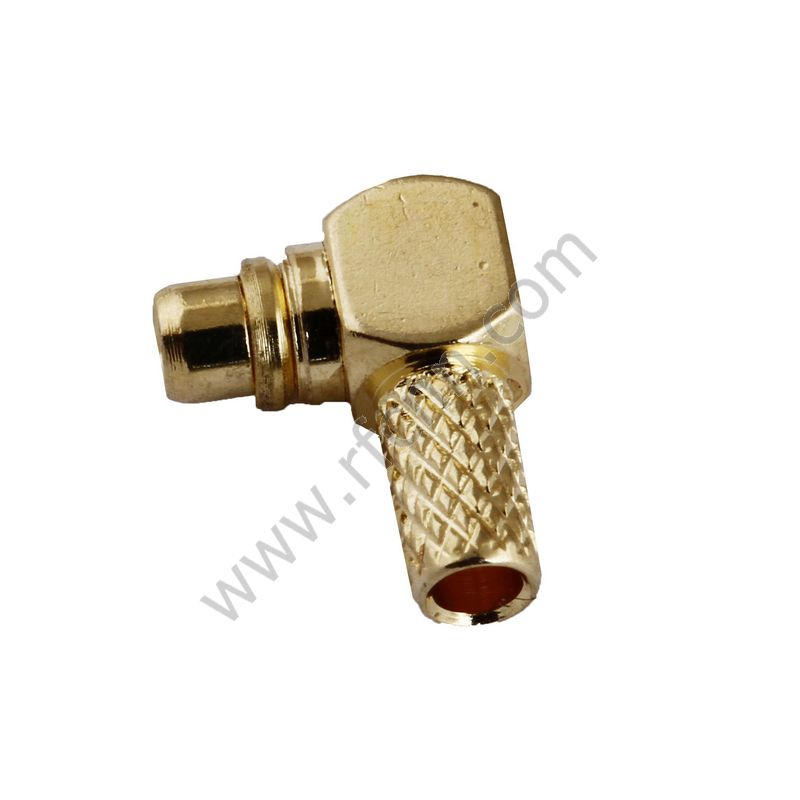

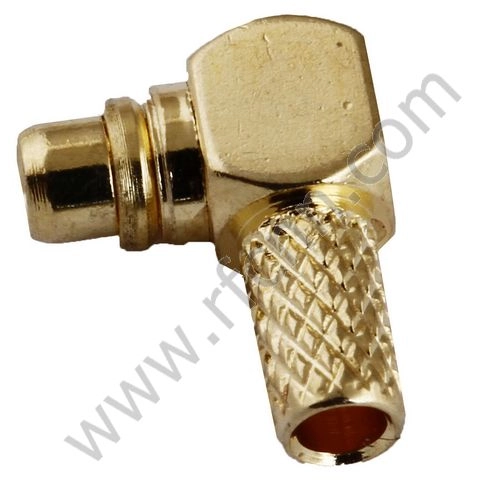

MMCX Male Right Angle Crimp For RG316 Cable

MMCX (microminiature compact and lightweight connectors) are designed for densely packed electronic packages with limited space and weight. Mechanical stability is ensured via a snap-on interface that has no slots in the outer conductor. Examples of usual applications include wireless/PCS devices, telephony, GPS receivers, and consumer electronics. Medical MRI scanners can be found in non-magnetic forms.
  • MMCX121RA-316

  • Male

  • Right angle

  • Crimping

  • Crimping

  • RG316

Availability:
Quantity:
  • Part No MMCX121RA-316
    Description MMCX Male Right angle Crimp For RG316 PCB RF Connector
    Connector Series MMCX
    Connector Type male
    Contact Termination Solder
    Shield Termination Crimp
    Impedance 50 Ohm
    Mounting Type Free Hanging
    Cable Group RG316
    Fastening Type Snap On
    Frequency - Max DC-18GHz
    Body Material Brass
    Body Finish Gold
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C



     We also make RF Connectors, Cable Assemblies, 7/16 DIN RF Connectors,
    N RF Connectors, FAKRA SMB RF Connectors, IPX RF Connectors,
    MCX RF Connectors, MMCX RF Connectors, SMA RF Connectors,
    SSMA RF Connectors, SMB RF Connectors, SSMB RF Connectors,
    SMC RF Connectors, SMZ RF Connectors, TNC RF Connectors,
    1.0/2.3 RF CONNECTORS, 1.6/5.6 RF Connectors, BNC RF Connectors,
    F RF Connectors, FME RF Connectors, UHF RF Connectors, Mini-UHF RF Connectors, RF ADAPTER, Attenuator of RF Connectors, Terminator of RF Connectors, Surge protector, Microwave Device-Cavity Power Dividing Coupler, Microstrip Power Dividing, Combiner, Bridge.
