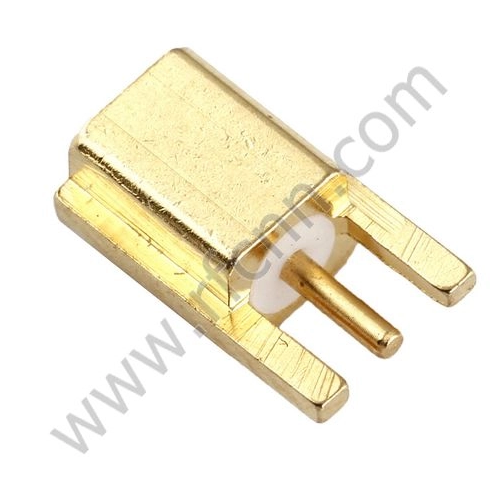

MMCX Connector Female Straight For PCB Board Edge
You are here: Home » Products » RF Connector » MMCX RF Connector » MMCX Connector Female Straight For PCB Board Edge
Share to:

MMCX Connector Female Straight For PCB Board Edge

Microminiature compact and lightweight connectors, known as MMCX, are developed for densely packed electronic packages with size and weight constraints. A snap-on interface eliminates slotting in the outer conductor, ensuring mechanical stability. Wireless/PCS devices, telecommunications, GPS receivers, and consumer electronics are all examples of typical uses. Non-magnetic versions are offered for medical MRI applications.
  • MMCX202
  • Female
  • Straight
  • PCB End launch
  • Soldering
  • N/A
Availability:
Quantity:
Materials&Electroplating
ConductBrass/   Silver or Golden Plating
InsulatorPTFE
BodyBrass   /Ternary or nickel or silver
Other PartsBrass/   Nickel Plating
Electric Performance
Impedance50   OHMS
Frequency Range0-3GHz
VSWR≤1.30
Rating Voltage500V
Environmental
Temperature Rating-65°C   to +165°C
Corrosion (Salt Spray)MIL-STD-202,   Method 101, Condition B
VibrationMIL-STD-202,   Method 204, Condition D, 20 Gs
ShockMIL-STD-202,   Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,   Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,   Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,   Method 105, Condition C, 70k Ft.
