MMCX Female Straight Solder For PCB
You are here: Home » Products » RF Connector » MMCX RF Connector » MMCX Female Straight Solder For PCB
Share to:

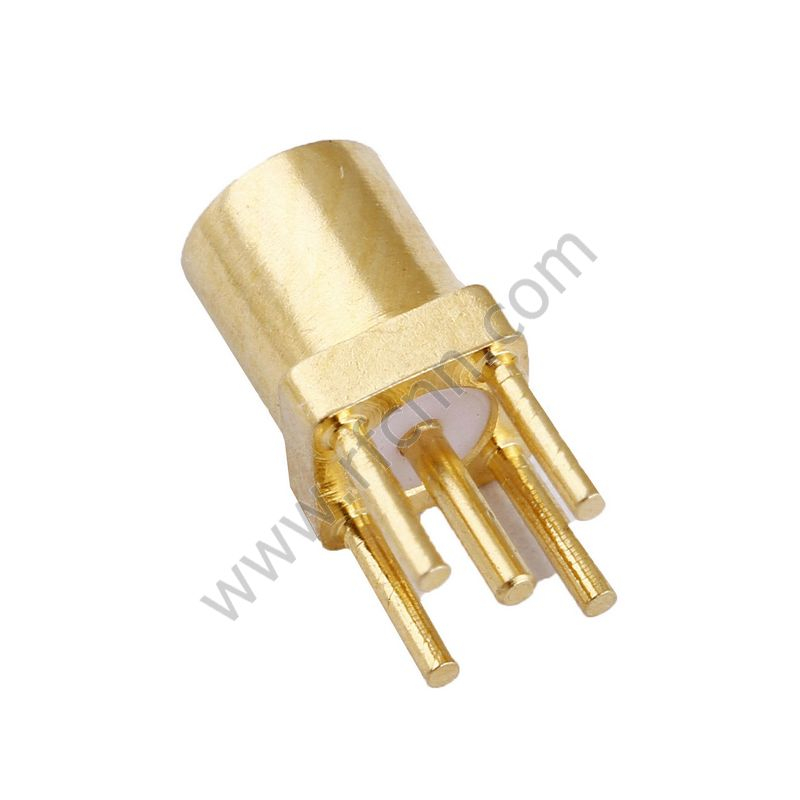

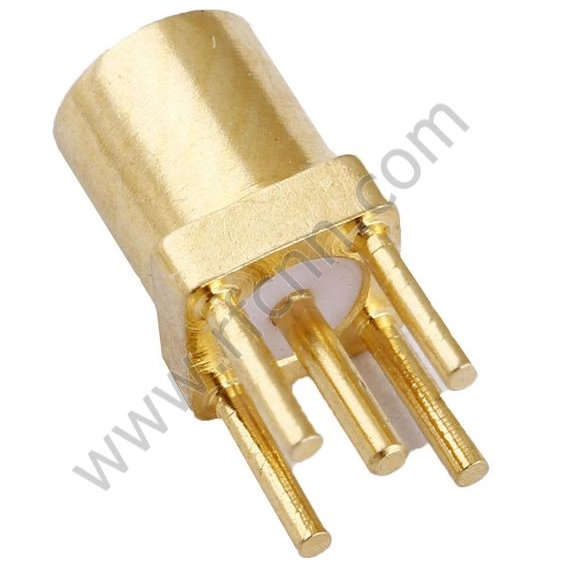

MMCX Female Straight Solder For PCB

MMCX connectors (microminiature compact and lightweight connectors) are designed for densely packed electronic packages with limited space and weight. Mechanical stability is ensured via a snap-on interface with no slotting in the outer conductor. Typical applications include wireless/PCS devices, telephony, GPS receivers, and consumer electronics. Medical MRI scanners are available in non-magnetic forms.
  • MMCX205-R
  • Female
  • Straight
  • PCB Hole through
  • Soldering
  • N/A
Availability:
Quantity:

  • Part No MMCX205-R
    Description MMCX Female for PCB Round foot  RF Connector
    Connector Series MMCX
    Connector Type Female
    Contact Termination Solder
    Shield Termination -
    Impedance 50 Ohm
    Mounting Type Through hole PCB Round foot
    Cable Group -
    Fastening Type Snap On
    Frequency - Max DC-18GHz
    Body Material Brass
    Body Finish Gold
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C
