Product Short Description:

Precision Test Cable T67, Super Flexible with armour tube. Maximum working frequency: 67GHz. Excellent return loss and insertion loss.


Product Description

Part No ZT67

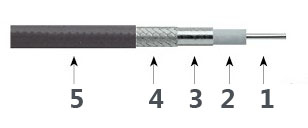

Cable Structure
No Material&Surface Finish
1 Conduct:
Silver plated cooper wire
2 Insulator: PE
3 Inner braidinging: Silver plated cooper ribbon
4 Outer braidinging:  Silver plated cooper braiding
5 Jacket Jacket: FEP



Mechanism Characteristic
Dimension mm Inch
Conduct 0.5 0.02
Insulator 1.5 0.059
Inner braiding 1.64 0.065
Outer braiding 1.89 0.074
Jacket 2.2 0.087
Weight 0.016kg/m
Min.Bending Radius (Dynamic 22.0mm),(Static 8.8mm)
Cycle > 5000
Temperature Range -55℃- +125℃
Electrical Performance
VSWR Max Connector 18GHz      40GHz 50GHz     67GHz
1.85mm 1.20:1  1.30:1 1.40:1    1.50:1
Impendence 50 Ω
Velocity Propagation 76%
Shielding efficiency > 90 dB
Amplitude stability < ±0.15dB@67GHz
Bending phase stability < ±6.7° @67GHz
Attenuation(25℃)
Frequency(MHz) dB/100ft dB/100m
1000 19.49 64
3000 34.11 112
6000 48.73 160
18000 87.41 287
26500 107.82 354
40000 135.23 444
50000 153.2 503
67000 180.01 591
Average power (25℃,sea level,only cable)
Frequency(GHz) Watts
1000 97
3000 55
6000 38
18000 21
26500 17
40000 14
50000 13
67000 12
