Precision Test Cable T40

Quantity:
Inquire Add to Basket

Part No ZT40

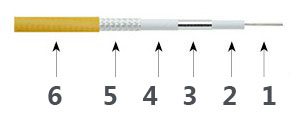

Cable Structure
No Material&Surface Finish
1 Conduct:
Silver plated cooper wire
2 Insulator: LD-PTFE
3 Inner braidinging:
Silver plated cooper ribbon
4 Interlayer LD-PTFE
5 Outer braidinging:  Silver plated cooper braiding
6 Jacket Jacket: FEP









Mechanism Characteristic
Dimension mm Inch
Conduct 0.92 0.036
Insulator 2.5 0.098
Inner braiding 2.66 0.105
Interlayer 2.95 0.116
Outer braiding 3.11 0.122
Jacket 3.8 0.15
Weight 0.033 kg/m
Min.Bending Radius (Dynamic 38.0mm), Static 14.4mm)
Cycle > 5000
Temperature Range -55℃~ +165℃
Electrical Performance
Connector 18GHz 26.5GHz       40GHz
VSWR Max 2.92 mm   1.25:1 1.30:1  1.30:1
2.4 mm     1.25:1 1.30:1  1.30:1
Impendence 50Ω
Velocity Propagation 83%
Shelding efficiency > 90 dB
Amplitude stability < ±0.04dB@40GHz
Bending phase stability < ±4° @40GHz
Attenuation(25℃)
Frequency(MHz) dB/100 ft dB/100m
1000 11.4 37.5
3000 20 65.7
6000 28.6 93.8
10000 37.3 122.4
12000 41.4 135.8
18000 50.8 166.7
26500 62.4 204.8
40000 77.7 254.8
Average power (25℃,sea level,only cable)
Frequency(MHz) Watts
1000 509
3000 291
6000 203
10000 156
12000 141
18000 115
26500 93
40000 75
