Precision Test Cable T26

Quantity:
Inquire Add to Basket

Part No ZT26

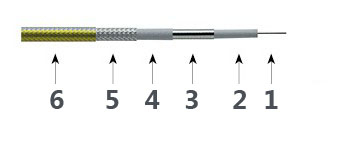

Cable Structure
No Material&Surface Finish
1 Conduct:
Silver plated cooper wire
2 Insulator: LD-PTFE
3 Inner braidinging:
Silver plated cooper ribbon
4 Interlayer LD-PTFE
5 Outer braidinging:  Silver plated cooper braiding
6 Jacket Jacket: FEP





Mechanism Characteristic
Dimension mm Inch
Conduct 0.91 0.036
Insulator 2.65 0.104
Inner braiding 2.85 0.112
Interlayer 3.09 0.122
Outer braiding 3.54 0.14
Jacket 4.6 0.181
Weight 0.04kg/m
Min.Bending Radius (Dynamic 46.0mm),(Static 18.0mm)
Cycle > 5000
Temperature Range -55℃~ +125℃
Electrical Performance
Connector 6GHz 18GHz 26.5GHz
VSWR Max SMA/3.5mm 1.15:1 1.25:1 1.30:1
N 1.15:1 1.25:1 —
TNC 1.15:1 1.30:1 —
Impendence 50Ω
Velocity Propagation 76%
Shielding efficiency > 90 dB
Amplitude stability < ±0.03dB⑥26.5GHz
Bending phase stability < ±2.7° ⑥26.5GHz
Attenuation(25℃)
Frequency(MHz) dB/100ft dB/100m
1000 11.5 37.6
3000 20 65.6
6000 28.5 93.6
10000 37.1 121.8
12000 40.8 133.9
18000 50.4 161.4
26500 61.8 202.8
Average power (25℃,sea level,only cable)
Frequency(GHz) Watts
1000 505
3000 289
6000 203
10000 156
12000 142
18000 115
26500 94
