Precision Test Cable T06s

Quantity:
Inquire Add to Basket



Part No ZT06S

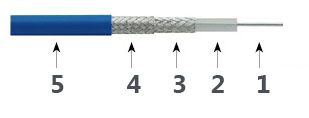

Cable Structure
No Material&Surface Finish
1 Conduct:
Silver plated cooper wire
2 Insulator: PTFE
3 Inner braidinging:
Silver plated cooper braiding
4 Outer braidinging:  Silver plated cooper braiding
5 Jacket Jacket: PVC/PUR



Mechanism Characteristic
Dimension mm Inch
Conduct 0.92 0.036
Insulator 3 0.118
Inner braiding 3.5 0.138
Outer braiding 3.95 0.156
Jacket 5.2 0.205
Weight 0.062kg/m
Mininum bending Radius(Dynamic) 25.4mm
Cycle > 5000
Temperature Range -45℃~ +85℃
Electrical Performance
VSWR Max Connector 1GHz 3GHz 6GHz
SMA 1.10:1 1.15:1 1.25:1
N 1.10:1 1.15:1 1.25:1
TNC 1.15:1 1.15:1 1.25:1
BNC 1.15:1 1.25:1
Impendence 50Ω
Velocity Propagation 70%
Shielding efficiency > 80 dB
Amplitude stability < ±0.03dB⑥6GHz
Bending phase stability ±1.5° @6GHz
Attenuation(25℃)
Frequency(MHz) dB/100代 dB/100m
100 3.96 13
400 7.92 26
1000 12.8 42
3000 23.77 78
5000 32 105
6000 39.01 128
Average power (25℃,sea level,only cable)
Frequency(MHz) Watts
100 980
400 490
1000 300
3000 180
5000 140
6000 120
