Precision Test Cable T50

Quantity:
Inquire Add to Basket

Part No ZT50

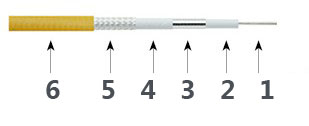

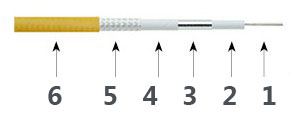

Cable Structure
No Material&Surface Finish
1 Conduct:
Silver plated cooper wire
2 Insulator: LD-PTFE
3 Inner braidinging:
Silver plated cooper ribbon
4 Interlayer LD-PTFE
5 Outer braidinging:  Silver plated cooper braiding
6 Jacket Jacket: FEP



Mechanism Characteristic
Dimension mm Inch
Conduct 0.72 0.028
Insulator 2.21 0.087
Inner braiding 2.38 0.094
Interlayer 2.68 0.106
Outer braiding 3.14 0.124
Jacket 3.6 0.142
Weight 0.034kg/m
Min.Bending Radius (Dynamic 36.0mm),(Static 14.4mm)
Cycle > 5000
Temperature Range -55℃- +125℃
Electrical Performance
Connector 18GHz  26.5GHz 40GHz  50GHz
VSWR Max 2.92mm 1.25:1 1.30:1 1.30:1 --
2.4mm 1.25:1 1.30:1 1.30:1 1.35:1
Impendence 50 Ω
Velocity Propagation 76%
Shielding efficiency > 90 dB
Amplitude stability < ±0.05dB@50GHz
Bending phase stability < ±5°@50GHz
Attenuation(25℃)
Frequency(MHz) dB/100ft dB/100m
1000 13.4 43.8
3000 23.3 76.4
6000 33.2 108.8
12000 48.2 158.1
18000 58.5 191.8
26500 71.6 234.8
40000 88.9 291.7
50000 100.2 328.5
Average power (25℃,sea level,only cable)
Frequency(GHz) Watts
1000 250
3000 140
6000 130
12000 80
18000 72
26500 66
40000 60
50000 56
