Precision Test Cable T67P

Quantity:
Inquire Add to Basket

Part No ZT67P
Cable Structure
Item Material
1 Conduct: silver plated copper wire
2 Insulator: LD-PTFE
3 Inner braidinging: silver plated copper ribbon
4 Interlayer: LD-PTFE
5 Outer braidinging: silver plated copper wire
6 Jacket: FEP
7 Inner armour: spring
8 Strength braidinging: TIN plated copper wire
9 Prevent distortion: PTFE ribbon
10 Outer Jacket: PTFE fiber (purple+black)



Mechanism Characteristic
Jacket 5.8 mm 0.228 Inch
Weight 0.016kg/m
Min.Bending Radius (Dynamic 22.0mm),(Static 8.8mm)
Cycle > 5000
Temperature Range -55℃~ +125℃
Armour Compressive strength 100N/25mm
Electrical Performance
Connector 18GHz 40GHz 50GHz 67GHz
VSWR Max 1.85mm 1.20:1 1.30:1 1.40:1 1.50:1
Impendence 50Ω
Capacitance 27pf/ft=88pf/m
Insulator耐压 500V , DC
Velocity Propagation 76.00%
Shielding efficiency > 90 dB
Amplitude stability < ±0.15dB@67GHz
Bending phase stability < ±6.7° @67GHz
Attenuation(25℃)
Frequency(MHz) dB/100ft dB/100m
1000 19.49 64
3000 34.11 112
6000 48.73 160
18000 87.41 287
26500 107.82 354
40000 135.23 444
50000 153.2 503
67000 180.01 591
Average power (25℃,sea level,only cable)
Frequency(MHz) Watts
1000 97
3000 55
6000 38
18000 21
26500 17
40000 14
50000 13
67000 12
Previous:
Next:
high frequency test cable coaxial jumper phase stable

Related Products

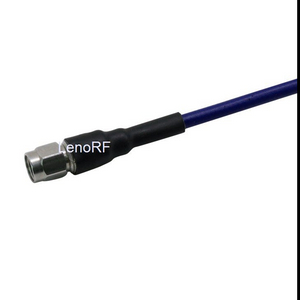

Precision Test Cable Assembly 2.92mm Plug To Jack 40GHz
Precision Test Cable Assembly 2.92mm Plug To Jack 40GHz
Precision Test Cable Assembly 2.92mm Jack To Jack 40GHz
Precision Test Cable Assembly 2.92mm Jack To Jack 40GHz
Precision Test Cable Assembly 3.5mm Plug To Plug 26.5 GHz
Precision Test Cable Assembly 3.5mm Plug To Plug 26.5 GHz

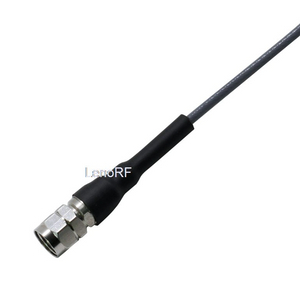

Precision Test Cable Assembly 2.4mm Plug To Plug 40GHz
Precision Test Cable Assembly 2.4mm Plug To Plug 40GHz

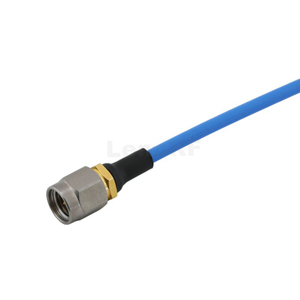

Precision Test Cable Assembly 2.92mm Connector Plug To Plug 26.5G
Precision Test Cable Assembly 2.92mm Connector Plug To Plug 26.5G

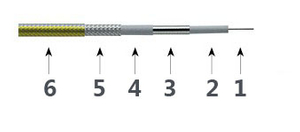

Precision Test Cable T26
Precision Test Cable T26
Precision Test Cable T18P
Precision Test Cable T18P
Precision Test Cable T06G
Precision Test Cable T06G
Precision Test Cable T06
Precision Test Cable T06
Precision Test Cable T18
Precision Test Cable T18

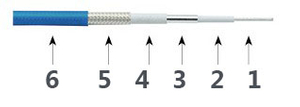

Precision Test Cable T26S
Precision Test Cable T26S

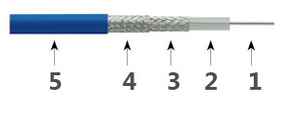

Precision Test Cable T06s
Precision Test Cable T06s
Precision Test Cables 1.85mm Connector 67GHz
Precision Test Cables 1.85mm Connector 67GHz
Precision Test Cable T26P
Precision Test Cable T26P
Precision Test Cable T50
Precision Test Cable T50
Precision Test Cable T40P
Precision Test Cable T40P
Precision Test Cable T50P
Precision Test Cable T50P

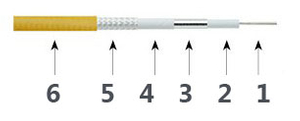

Precision Test Cable T40
