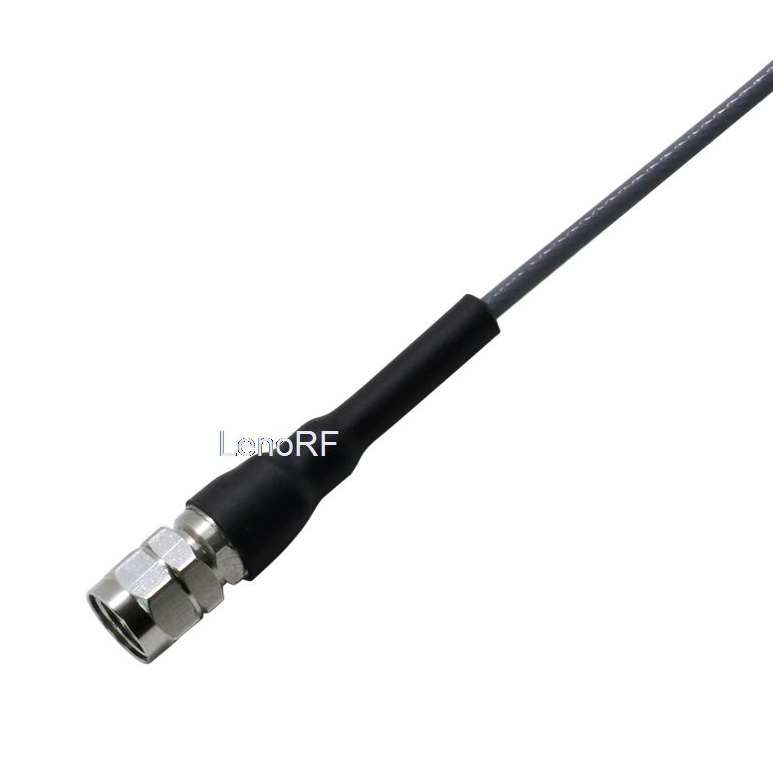

Precision Test Cable Assembly 2.4mm Plug To Plug 40GHz

For Vector Network Analyzers, we showed a wide selection of typical microwave cable assemblies (VNA). The 50 GHz variants have 2.4mm connections, whilst the 70 GHz ones have 1.85mm connectors. The braided, stainless steel armoring that surrounds the coax creates a tough but flexible cable with a flex life exceeding 100,000 cycles, making these test cables ideal for semiconductor probe testing, precise bench top testing, and lab/production testing where a highly flexible, yet durable cable solution is required. Very high phase stability and a large number of mating cycles are two standout traits. Various industrial test and measurement applications are possible because to the range of cable types and connector interfaces.
  • 831-1128
  • Male
  • Straight
  • Crimping
  • Crimping
  • 831-1128
Availability:
Quantity:
  • Specification of product:



    Part No 831-1128
    Connector Series 2.4mm
    Connector Type male
    Contact Termination Solder
    Shield Termination Crimp
    Impedance 50 Ohm
    Mounting Type Free Hanging
    Cable Group-
    Fastening Type Thread
    Frequency - Max DC-40 GHz
    Body Material Brass
    Body Finish Nickel
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C

    Application of product

    Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

    Environmental Compliance

    All product is RoHS and REACH complaint.
