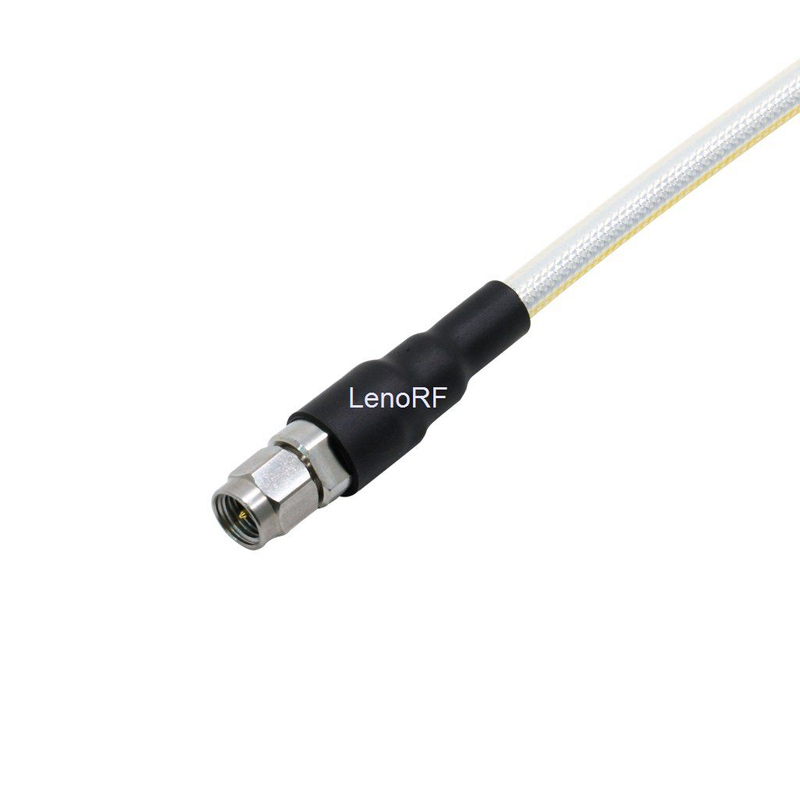

Precision Test Cable Assembly 3.5mm Plug To Plug 26.5 GHz

For Vector Network Analyzers, we demonstrated a variety of typical microwave cable setups (VNA). The 2.4mm connections on the 50 GHz assemblies are used, whereas the 1.85mm connectors are used on the 70 GHz versions. The braided, stainless steel armoring that surrounds the coax creates a rugged but flexible cable with a flex life of over 100,000 cycles, making these test cables ideal for semiconductor probe testing, precise bench top testing, and lab/production testing where a highly flexible, yet durable cable solution is required. High phase stability and a large number of mating cycles are two outstanding properties. Various industrial test & measurement applications are enabled by the range of cable types and connection interfaces.
  • 832-1129
  • Male
  • Straight
  • Crimping
  • Crimping
Availability:
Quantity:
  • Specification of product:



    Part No 832-1132
    Connector Series3.5mm
    Connector Type male
    Contact Termination Solder
    Shield Termination Crimp
    Impedance 50 Ohm
    Mounting Type Free Hanging
    Cable Group
    Fastening Type Thread
    Frequency - Max DC-26 GHz
    Body Material Brass
    Body Finish Nickel
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C

    Application of product

    Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

    Environmental Compliance

    All product is RoHS and REACH complaint.
