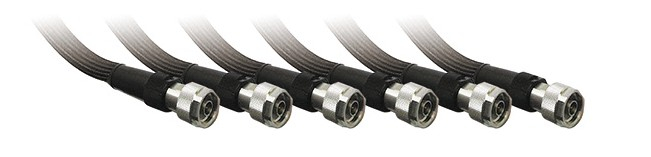

Precision Test Cable VNA26
Product Name:
Precision Test Cable VNA26Model No.:
Product Short Description:
Super flexible with armour tube. Maximum working frequency: 26 GHz. Specially for VNA network analyzer. Excellent return loss and insertion loss.
- Product Description
Part No ZVNA26 Mechanical & Environmental Characteristics Outer braiding Polyester-PET Cable Assembly Outer Diameter 15.2mm/0.6" Min Bending Radius/Repeated 50.0mm/1.97" Operating Temperature -55。+105℃ Electrical Characteristics Impedance 50 Ω Velocity of Propagation 76% Max Operating Frequency 26.5 GHz Sheiding Effectiveness 90dB min. VSWR Max 1.30:l@DC-26.5GHz Dielectric Withstanding Voltage 1KV(rms) Mechanism Phase Stability < ±2.7° @26.5GHz Amplitude Stability < ±0.03dB@26.5GHz Type Selection Type Connector A Connector B Insertion Loss MAX@50GHz ZVNA26-NMD3.5F-3.5M-lM 3.5MM FEMALE 3.5MM MALE 1.7dB@0.61M , 2.4dB@0.91M ZVNA26-NMD3.5F-3.5f-LM 3.5MM FEMALE 3.5MM FEMALE 1.7dB@0.61M , 2.4dB@0.91M
