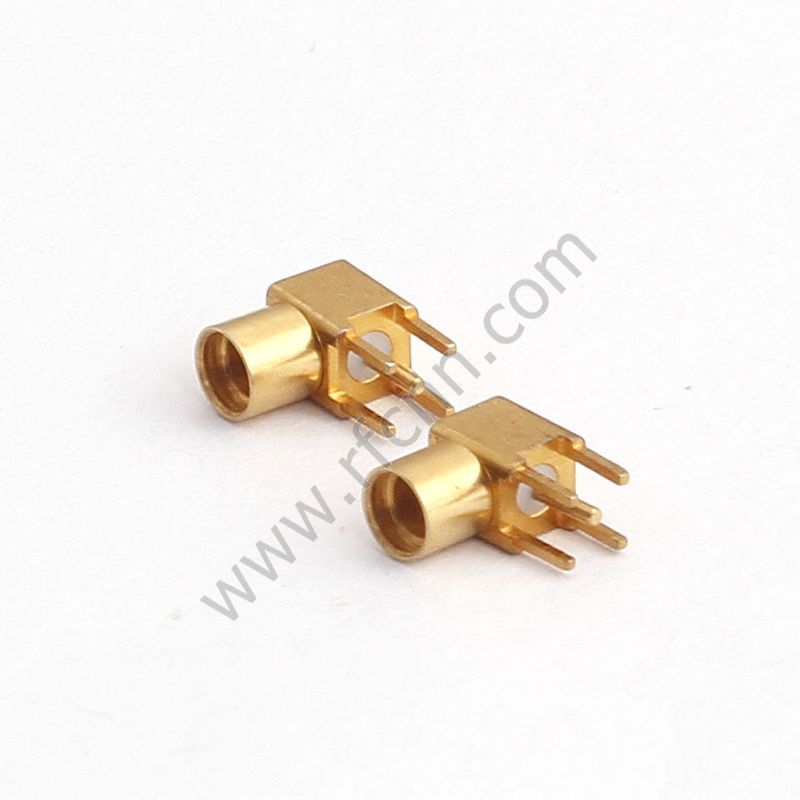

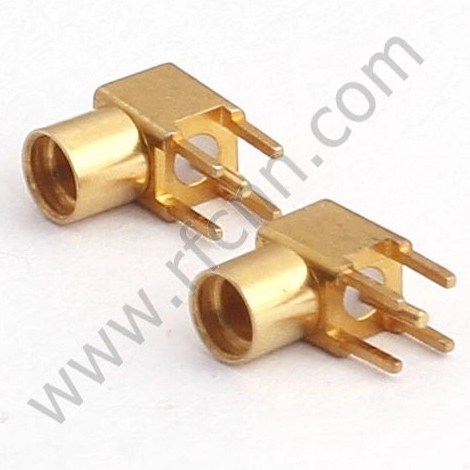

MMCX Female Right Angle Solder For PCB Through Hole

MMCX connectors (microminiature compact and lightweight connectors) are designed for densely packed electronic packages with limited space and weight. Mechanical stability is assured via a snap-on contact with no slotting in the outer conductor. Examples of common applications include wireless/PCS devices, telephony, GPS receivers, and consumer electronics. Medical MRI scanners are also available in non-magnetic forms.
  • MMCX205RA
  • Female
  • Right angle
  • PCB Hole through
  • Soldering
  • N/A
Availability:
Quantity:
  • Part No MMCX205RA
    Description MMCX Female  Right Angle PCB RF Connector
    Connector Series MMCX
    Connector Type Female
    Contact Termination Solder
    Shield Termination -
    Impedance 50 Ohm
    Mounting Type Through hole PCB
    Cable Group -
    Fastening Type Threaded
    Frequency - Max DC-18GHz
    Body Material Brass
    Body Finish Gold
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C
