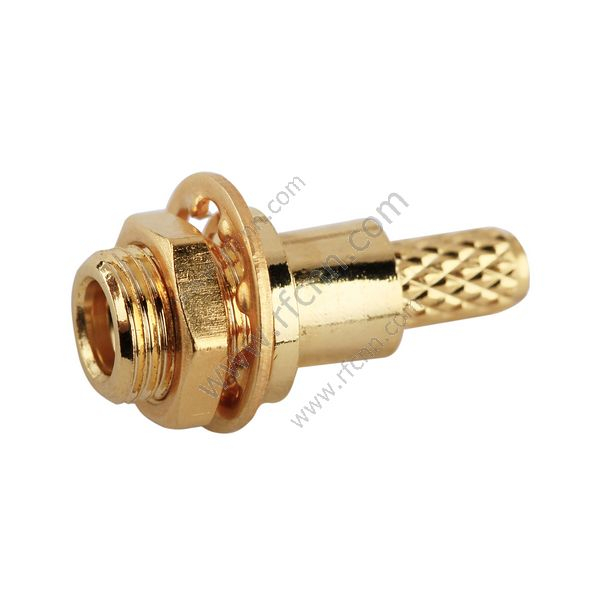

MMCX Female Crimp Panel Mount For RG316 Cable

MMCX (microminiature compact and lightweight connectors) are designed for densely packed electronic packages with limited space and weight. Mechanical stability is ensured via a snap-on interface that has no slots in the outer conductor. Examples of usual applications include wireless/PCS devices, telephony, GPS receivers, and consumer electronics. Medical MRI scanners can be found in non-magnetic forms.
  • MMCX.223.RG213
  • Female
  • Straight
  • Crimping
  • Crimping
  • RG316
Availability:
Quantity:
  • Specification of product:



    Part No MMCX.223.RG213
    Connector Series MMCX
    Connector Type Female
    Contact Termination Solder
    Shield Termination Crimp
    Impedance 50 Ohm
    Mounting Type Free Hanging
    Cable Group RG316
    Fastening Type Thread
    Frequency - Max DC-3GHz
    Body Material Brass
    Body Finish Gold,Au
    Center Contact Material Brass
    Center Contact Finish Gold,Au
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C

    Application of product

    Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

    Environmental Compliance

    All product is RoHS and REACH complaint.
