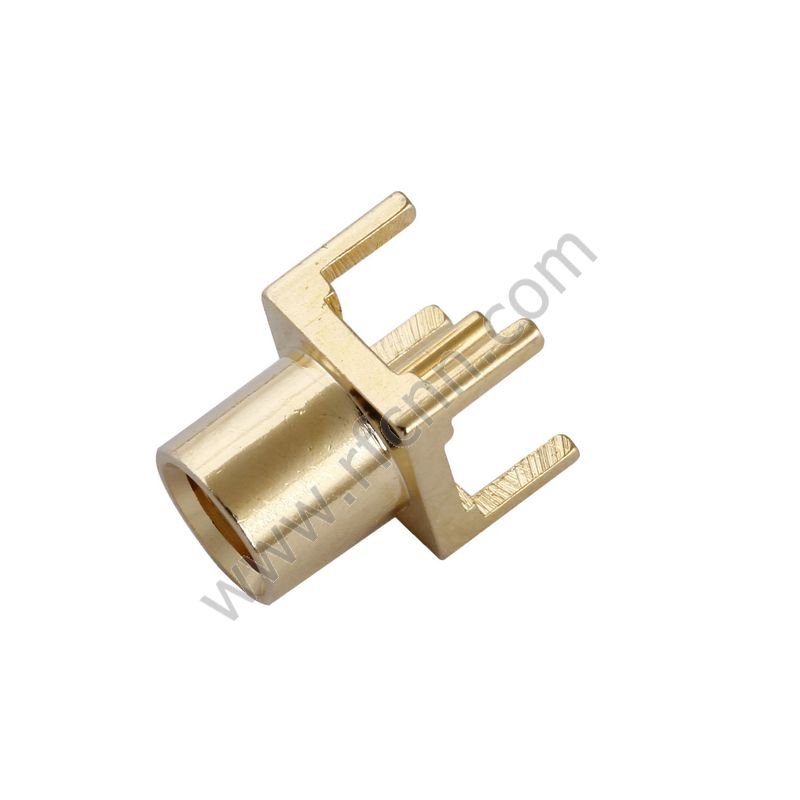

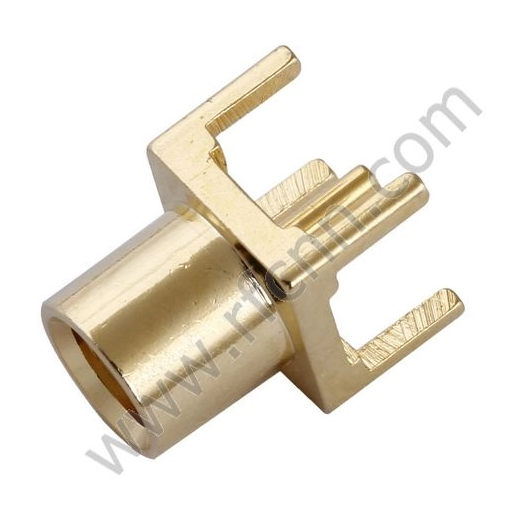

MCX Connector Female Straight For PCB Through Hole

A snap-on locking mechanism is used on MCX 50 OHMS coaxial connectors. They're mostly used in fixed and wireless communication systems with RF cable connections up to 6 GHz. MCX connectors provide a high level of dependability, a long service life, and are simple to install. The PCB connectors are available in tape and reel packaging for automated board assembly, as well as blister packaging. For medical and aeronautical applications, we also provide a non-magnetic alternative.
  • 85-5011-011-05
  • Female
  • Straight
  • PCB Hole through
  • Crimping
  • N/A
Availability:
Quantity:
Materials&Electroplating
ConductBrass/   Silver or Golden Plating
InsulatorPTFE
BodyBrass   /Ternary or nickel or silver
Other PartsBrass/   Nickel Plating
Electric Performance
Impedance50   OHMS
Frequency Range0-3GHz
VSWR≤1.30
Rating Voltage500V
Environmental
Temperature Rating-65°C   to +165°C
Corrosion (Salt Spray)MIL-STD-202,   Method 101, Condition B
VibrationMIL-STD-202,   Method 204, Condition D, 20 Gs
ShockMIL-STD-202,   Method 213, Condition I, 100 Gs
Thermal ShockMIL-STD-202,   Method 107. Cond. B, -65°C to +125°C
Moisture ResistanceMIL-STD-202,   Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202,   Method 105, Condition C, 70k Ft.
