Overview
An RF adaptor (Radio Frequency adapter) is a component used to connect two RF connectors or interfaces - either of different types or the same type. It enables the transmission of high-frequency signals with minimal loss or interference, and is typically used in the following applications: electronic warfare, military radios, and secure communication links,missile guidance, drones, and satellite payload systems,radar systems, avionics, and navigation equipment .
Application
Connecting antennas to RF equipment
Linking test equipment (like spectrum analyzers or signal generators) to DUTs (devices under test)
Integrating components in RF communication systems (e.g., Wi-Fi, LTE, GPS, IoT modules)
electronic warfare, military radios, and secure communication links
missile guidance, drones, and satellite payload systems
radar systems, avionics, and navigation equipment
Connector 1 Type:
Type-N
Connector Feature:
Frequency Range:DC–11 GHz(Precision version 18GHz)
Impedance:50 OHMS/75 OHMS
Power Handling:High
Coupling Mechanism:Threaded
Durability (mating cycles):500
Typical Applications:RF, telecom, broadcast
Size Category:Large
Connector 2 Type:
DIN 7/16
Connector Feature:
Frequency Range:DC – 7.5 GHz
Impedance:50 OHMS
Power Handling:Very High (kW)
Coupling Mechanism:Threaded
Durability (mating cycles):500
Typical Applications:Base stations, high power
Size Category:Very Large
Specification

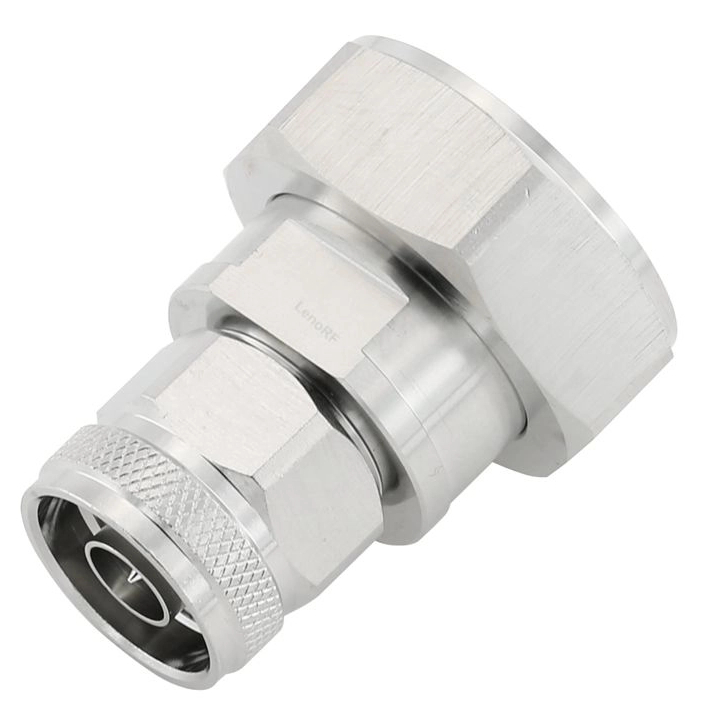

| Connector 1 type | Type-N Connector |
| Connector 2 type | DIN 7/16 Connector |
| Type Of Adapter | Between Series |
| Body Finish | Tri-metal |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Coupling Mechanism | Threaded |
| HS Code | 8536909000 |
| Frequency (Max GHz) | 7.5 |
| Impedance (Ohms) | 50 |
| Orientation | Straight |
| Temperature Range | -65 ~165 ° C |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
What’s the lifespan of an RF connector?
Connector durability is rated in mating cycles: General-purpose connectors (BNC, SMA): 500 cycles. Precision connectors (2.92 mm, 2.4 mm): 500 cycles or less. Rugged telecom connectors (N, 7/16 DIN): 500 cycles.
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
