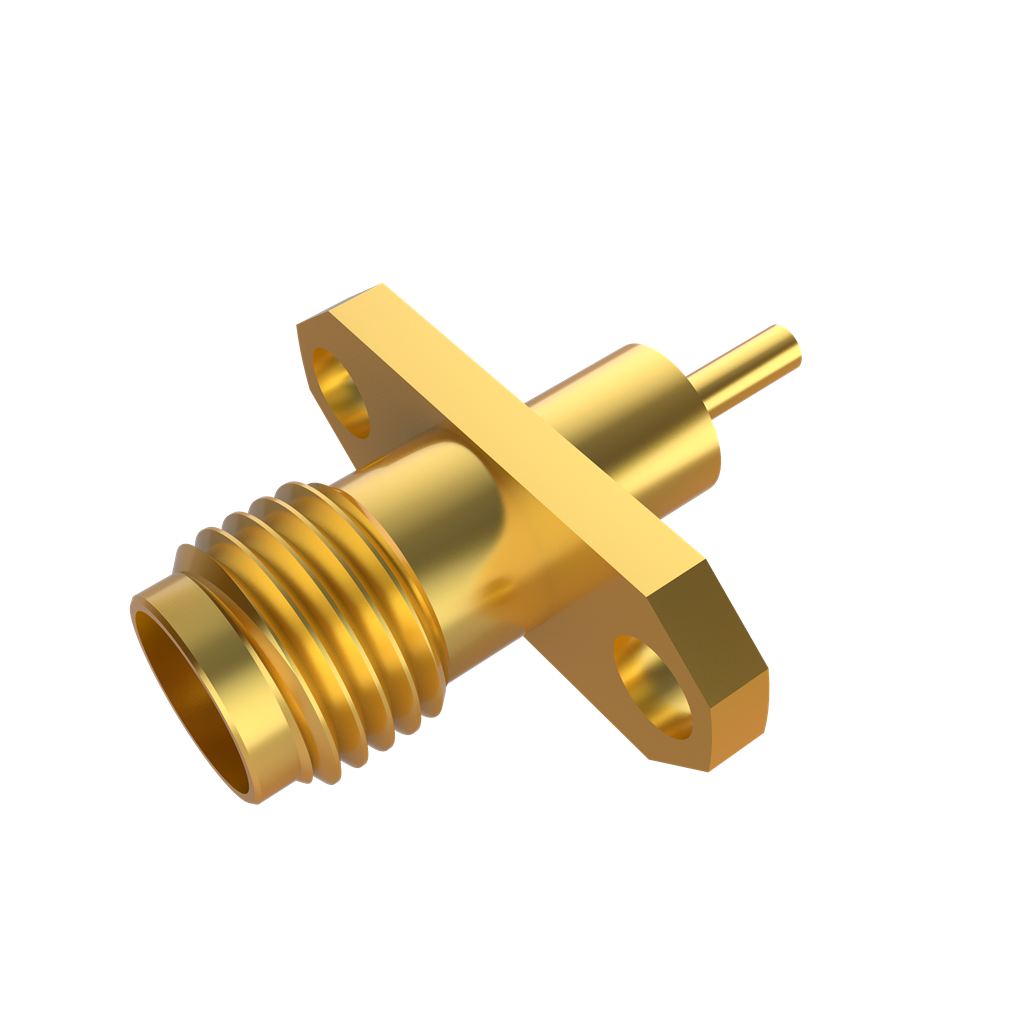

SMA Jack 2 Hole Flange Solder For Microstrip

SMA coaxial connectors from LenoRF are high-quality and function well. Great dependability, extended service life, high mechanical stability, and outstanding electrical properties are all features of these screw-on locking connectors with defined maximum torque. The butted outer contact allows for excellent frequency ranges of up to 18 GHz and low return loss of less than 30 dB. SMA connectors are used in a wide range of RF applications, including telecommunications and mobile communication, as well as test and measurement equipment and instruments.
  • 21-284

  • 89-5061-021-04

  • Female

  • Straight

  • 2 Hole Flange

  • Soldering

  • N/A

  • 89-5061-021-04.pdf

  • 89-5061-021-04.stp

Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type N/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting Feature2 Hole Flange
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
