Introduction
In the realm of radio frequency (RF) technology, connectors serve as the unsung heroes, enabling seamless and reliable signal transmission. Among the array of connectors available, the SMPM (or SSMP) connector series shines as a high-frequency push-on connector with a unique interfacing system. Featuring a female-to-female inner component known as a "bullet" or "blindmate" and two outer receptacles, these connectors, often seen as "shrouds," provide precision connectivity in demanding high-frequency applications. In this comprehensive guide, we will explore SMPM connectors in detail, covering their design, technical specifications, historical context, applications, and variations, all while highlighting their remarkable ability to facilitate connectivity in the microwave-band military and commercial systems and beyond.

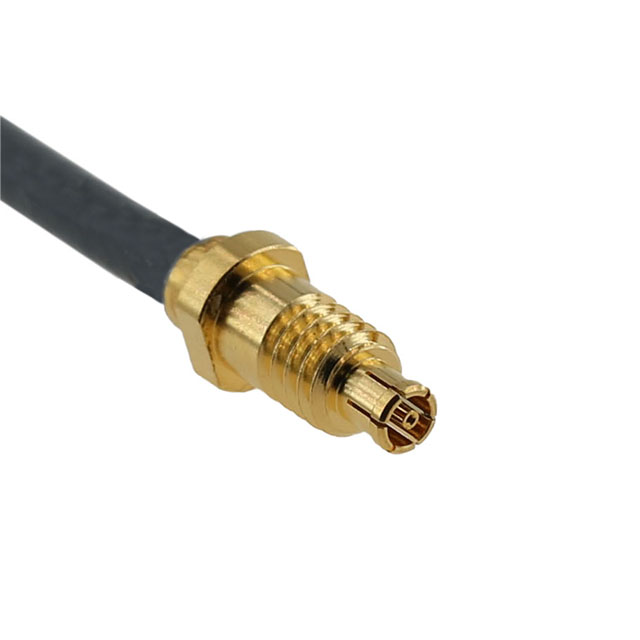

SMPM Jack Connector
Understanding SMPM Connectors
1. Design and Construction
SMPM connectors, also known as SSMP connectors, distinguish themselves with their high-frequency push-on design. The interfacing system comprises an inner female-to-female component, referred to as the "bullet" or "blindmate," and two outer receptacles, known as "shrouds." These connectors are built around a 1.7 mm solid dielectric, making them a miniaturized version of the standard SMP series. Remarkably, they maintain a near-identical mating interface while shrinking down to just 70% of the original size, showcasing their compact and precise design.
2. Technical Specifications
To gain a comprehensive understanding of SMPM connectors, it is crucial to delve into their key technical specifications:
Impedance: 50 Ω
Maximum Operating Frequency: 65.00 GHz
Coupling Mechanisms: Slide-on/Push-on Coupling, Snap-on Coupling
These specifications define the electrical performance, frequency range, and coupling mechanisms of SMPM connectors, making them ideal for applications requiring precision and high-frequency capabilities.
3. Coupling Mechanisms
SMPM connectors offer two distinct coupling mechanisms:
Slide-on/Push-on Coupling: This mechanism enables easy connection and disconnection, providing convenience in scenarios where frequent mating and unmating is required.
Snap-on Coupling: The snap-on interface offers varying levels of engage and disengage coupling forces. It is typically employed in PCB (Printed Circuit Board) mount or blind-mate applications, ensuring a secure connection.
Variations in SMPM Connectors
SMPM connectors exhibit variations in their male connectors, each designed to cater to specific application needs:
Smooth Bore (SB): This variant provides a smooth and easy connection and disconnection process, making it suitable for applications where convenience is paramount.
Limited Detent (LD): LD connectors offer a moderate level of insertion and withdrawal force, striking a balance between ease of use and retention.
Full Detent (FD): FD connectors require substantial insertion and withdrawal forces, making them ideal for cabled connections where higher retention forces are essential.
Catcher's Mitt (CM): The CM variant offers reduced connection forces compared to snap-on interfaces. It allows for sliding connections without physically locating the mating reference planes, accommodating axial and radial misalignment.
Historical Context
The journey of SMPM connectors is intertwined with the evolution of the original SMP connector, which traces its roots to the Gilbert company (now Corning Gilbert) in the 1980s. The SMP connector, initially named GPO (Gilbert push-on), served as the precursor to the SMPM/SSMP series, which emerged shortly after.
Applications of SMPM Connectors
SMPM connectors find their niche in board-to-board applications, predominantly in drawers and racks of microwave-band military and high-grade commercial systems. Their versatility and high-frequency capabilities make them indispensable in various applications, including:
1. Phased Arrays and Radar Systems
SMPM connectors play a vital role in the world of phased arrays, airborne radar systems, and active antennas. Their ability to operate at frequencies up to 65.00 GHz and their precision design make them ideal for demanding radar applications.
2. Satellite Communications
In satellite communication systems, where high-frequency precision is paramount, SMPM connectors facilitate the interconnection of critical components, ensuring reliable data transmission.
3. Aerospace Technology
Aerospace applications, ranging from satellite payloads to avionics systems, benefit from SMPM connectors' high-frequency capabilities and compact design.
4. Advanced Research and Development
SMPM connectors are also favored in advanced research and development environments, where the need for precision and high-frequency connectivity is fundamental.
Variations Within the SMP Series
In addition to the SMPM series, which is a miniaturized version of the standard SMP connector, there exists an even smaller series known as the SMPS connector series. These connectors, at just 45% of the size of the original SMP connector, push the boundaries further, operating effectively at frequencies up to 100 GHz. This extreme miniaturization is particularly valuable in applications demanding ultra-high-frequency capabilities while maintaining precision and reliability.
Conclusion
SMPM connectors, with their high-frequency prowess and precision design, have become indispensable components in a wide range of applications, from military and aerospace systems to advanced research and development environments. Their historical evolution from the original SMP connector underscores the importance of innovation in RF technology.
These connectors, with their 50 Ω impedance and an impressive maximum operating frequency of 65.00 GHz, have found a niche in demanding applications where high-frequency precision is non-negotiable. Their coupling mechanisms, including slide-on/push-on and snap-on options, cater to diverse needs, offering convenience and secure connections as required.
As technology continues to advance, and the demand for high-frequency RF connectors grows, SMPM connectors remain at the forefront, serving as reliable and efficient solutions for engineers, researchers, and professionals seeking precision connectivity in the ever-expanding world of RF technology.
