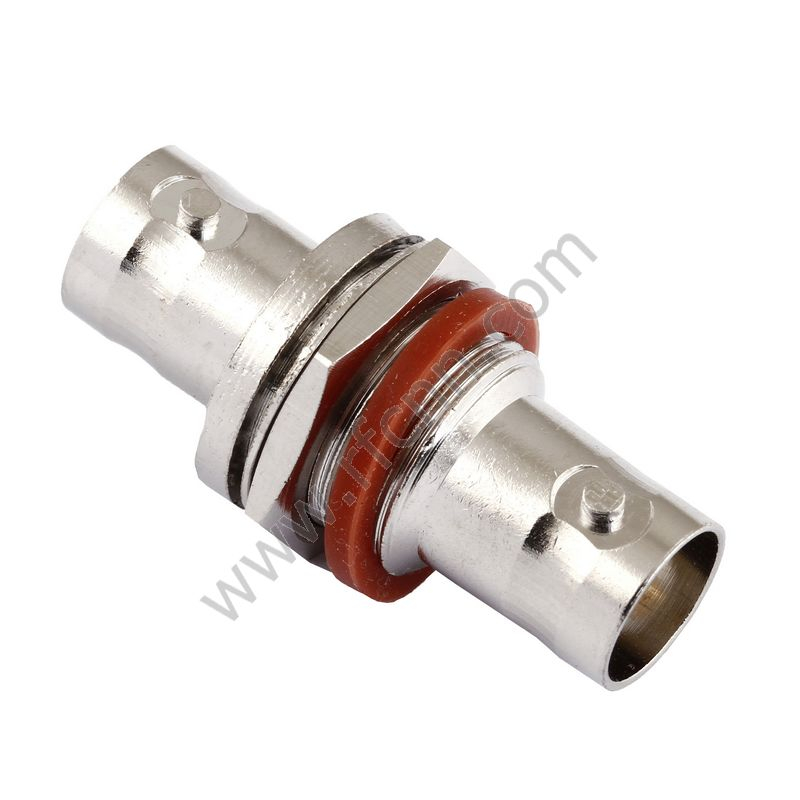

BNC Female To Female RF Connector

  • BNC22
  • Female to Female
  • Straight
  • Crimping
  • Crimping
Availability:
Quantity:
  • Part No  BNC22
    Description BNC female to female RF Connector
    Connector Series BNC
    Connector Type Female To Female
    Contact Termination -
    Shield Termination -
    Impedance 50 Ohm
    Mounting Type Panel Mount adaptor
    Cable Group -
    Fastening Type -
    Frequency - Max DC-6GHz
    Body Material Brass
    Body Finish Gold
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C
