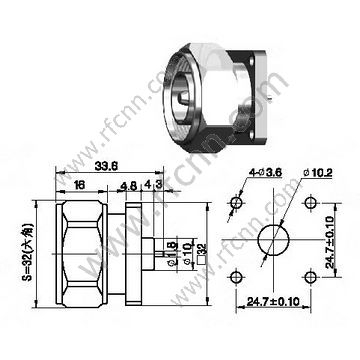

7/16 Male Soldering Connector For Microstrip PCB

7/16 connectors are mechanically strong screw-lock coaxial connections. They feature a 50 ohm characteristic impedance and are appropriate for applications up to 7.5 GHz with exceptional electrical properties. Common usage include radio transmitters that broadcast received signals with medium to high strength and low PIM, such as those used in mobile phone base stations.
  • DIN.650.455

  • Male

  • Straight

  • Crimping

  • Crimping

Availability:
Quantity:


                        Part No                        DIN.650.455
                        Description                        DIN 7/16  MALE  MICRO STRIP RF Connector
                        Connector Series                        DIN 7/16
                        Connector Type                        male
                        Cable Type                        -





FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.
