In the world of cable television and internet connectivity, the Type F connector reigns as a miniature yet mighty presence. These 75-ohm threaded connectors have become integral components in the cable television industry, known for their simplicity, mechanical durability, and swift termination capabilities. This comprehensive exploration delves into the history, applications, variations, and technical specifications of the Type F connector, shedding light on its vital role in modern residential cable rollouts.
Historical Genesis
The Type F connector's origins trace back to the early 1950s when Eric E. Winston, while employed at Jerrold Electronics, played a pivotal role in its invention. This period was marked by significant developments in cable television technology, and Winston's contribution with the Type F connector was a testament to the industry's ongoing evolution.
Technical Attributes

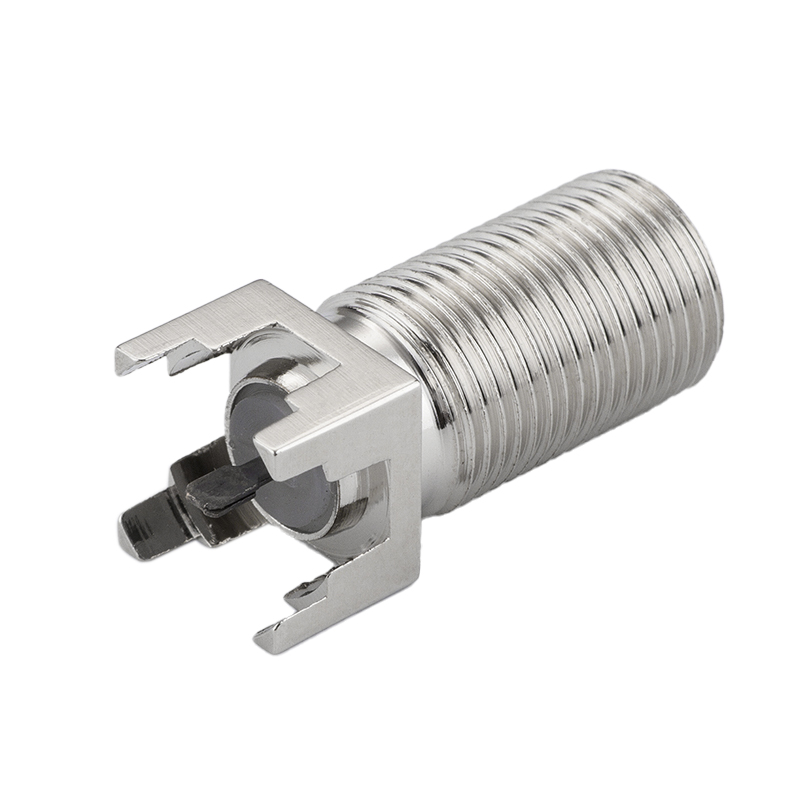

Threaded Interface
Central to the Type F connector's design is its 3/8-32 UNF-2B threaded interface. This threading mechanism ensures a secure and reliable connection, critical for maintaining high-quality signal transmission in cable television applications.
Crimp Termination

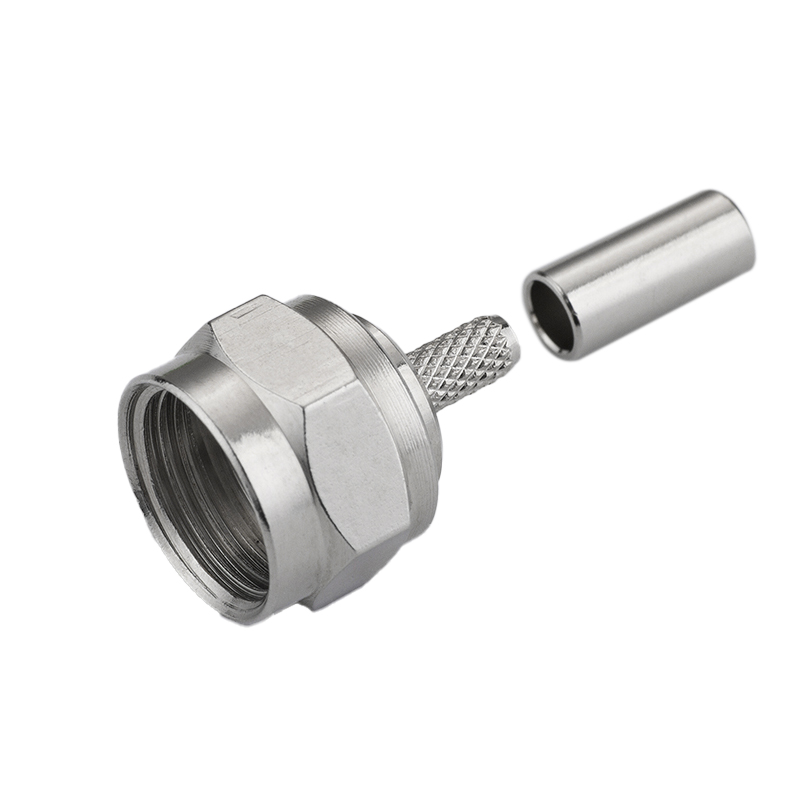

Cable-mounted Type F connectors are characterized by their crimp termination feature. This design simplifies the installation process, making it both efficient and cost-effective. The crimp termination ensures a strong bond between the connector and the cable, contributing to the overall mechanical durability of the Type F connector.
IEC Standardization
The simplicity and efficiency of the Type F connector design have led to its standardization under IEC 61169-24. This international standardization underscores the connector's reliability and suitability for a wide range of cable television applications.
Ubiquitous Applications
The Type F connector's low-cost, reliable design has made it an omnipresent fixture in virtually all modern residences, serving as the cable TV or cable internet outlet. Its versatility and performance have positioned it as an industry standard in various applications, including:
MATV (Master Antenna Television)
MATV distribution systems often rely on Type F connectors for their straightforward installation and dependable signal transmission. These systems are commonly used in residential and commercial properties to distribute television signals efficiently.
CATV (Cable Television)
The Type F connector is a cornerstone of the CATV infrastructure, ensuring that cable television signals reach homes with clarity and reliability. Its widespread use in this domain reflects its ability to meet the demands of large-scale cable television networks.
HFC (Hybrid Fiber-Coaxial)
In HFC networks, which combine optical fiber and coaxial cable for data transmission, the Type F connector maintains its relevance. It serves as a vital interface for connecting coaxial cables to customer premises, bridging the gap between the fiber backbone and end-users.
Cable Internet
As cable internet services have gained popularity, the Type F connector has adapted to meet the requirements of high-speed data transmission. It remains a linchpin in delivering internet connectivity to homes and businesses via cable networks.
No Official Variations
Unlike some other connector types that have spawned various official iterations, the Type F connector remains remarkably consistent in its design and configuration. Its simplicity and effectiveness have led to its widespread adoption, leaving little room for official variations.
The G Connector
While the Type F connector holds its own as a threaded interface, it is worth mentioning the G connector as a slide-on/push-on alternative. However, it is essential to note that the G connector is considered an independent series with its unique characteristics and applications. Although it shares some similarities with the Type F connector, they serve different purposes within the realm of cable television and connectivity.

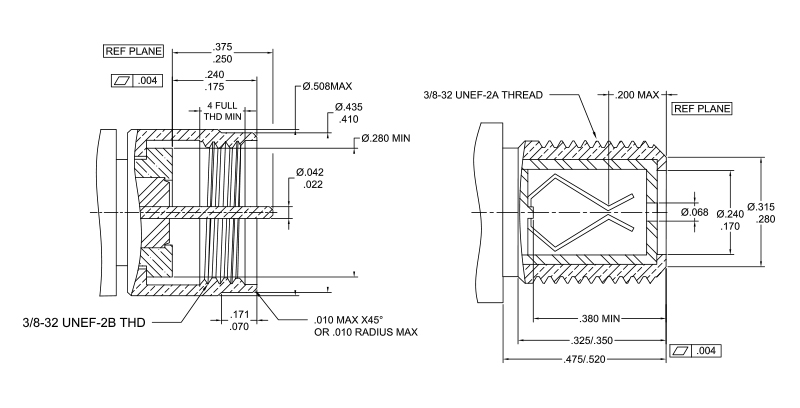

Interface Drawing
Conclusion
The Type F connector, with its rich history, dependable design, and universal applications, stands as a testament to the evolution of cable television and internet connectivity. Its threaded interface, crimp termination capabilities, and standardization under IEC 61169-24 emphasize its suitability for modern residential cable rollouts and diverse applications in MATV, CATV, HFC, and cable internet. Despite the absence of official variations, the Type F connector's consistency and reliability make it an enduring presence in the ever-expanding landscape of cable television technology. While alternatives like the G connector exist, each connector serves its unique niche, ensuring that the Type F connector remains an indispensable component of our interconnected world.
