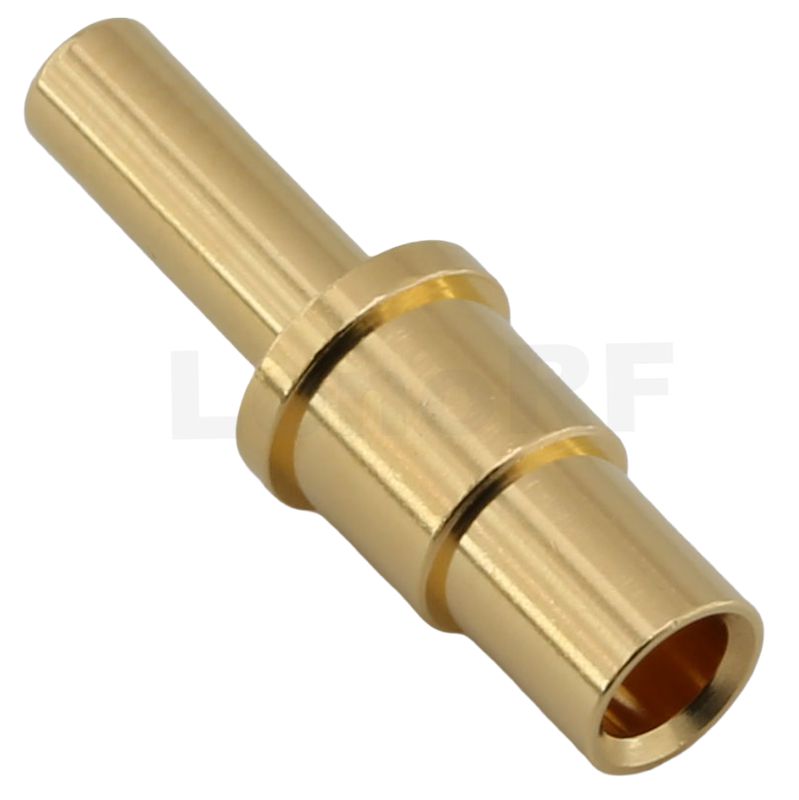

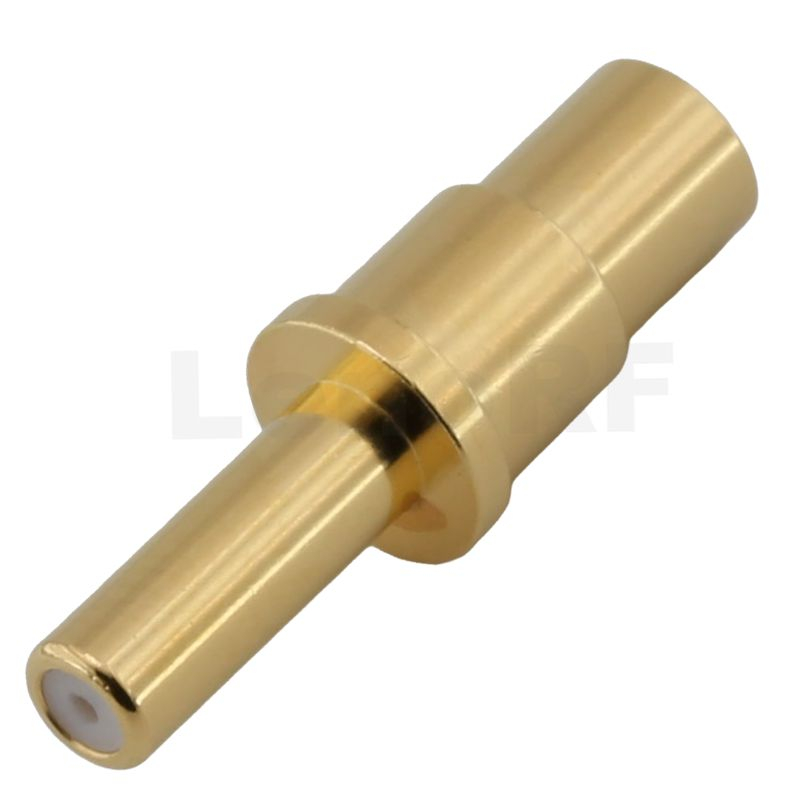

The RF coaxial pin contact, exclusively supplied by LenoRF, is a high-performance component engineered to meet the rigorous demands of high-frequency data transmission applications. As a size 12 pin contact compatible with D38999 connectors, it is specifically designed for use with 0.085-inch coaxial cables, making it a versatile solution for a wide range of critical systems.
Classified as an M39029 coax contact—an industry-standard specification governing reliable electrical connections in demanding environments—this component boasts a 50 Ohm impedance, ensuring precise impedance matching to minimize signal reflections and maintain signal integrity. Its maximum Voltage Standing Wave Ratio (VSWR) of 1.35 further enhances transmission efficiency, while a maximum operating frequency of 3 GHz makes it well-suited for high-frequency communication needs.
Crafted with premium materials for durability and performance, the inserts features a gold-plated brass outer conductor and a beryllium copper inner conductor—materials selected for their excellent conductivity, corrosion resistance, and extended service life. The contact incorporates PTFE dielectric material, which delivers exceptional insulation properties and supports a dielectric withstanding voltage of 1000 Vrms, ensuring reliable operation even in harsh electrical environments. Additionally, it maintains a maximum insertion loss of just 0.191 dB, minimizing signal degradation for consistent performance.
Engineered for optimal signal performance, this RF coax contact is specifically designed to reduce signal loss and crosstalk, leveraging its precision construction to deliver superior impedance matching and lower VSWR. It operates reliably across an extreme temperature range of -65°C to 125°C, making it suitable for rugged applications in aerospace, military, and industrial settings where environmental conditions are challenging.
