Overview

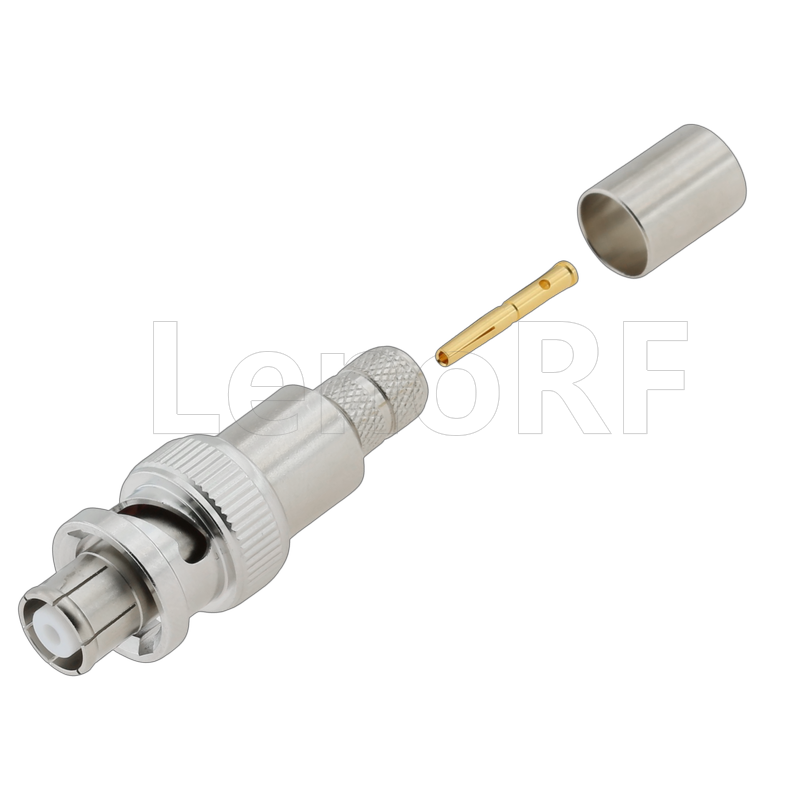

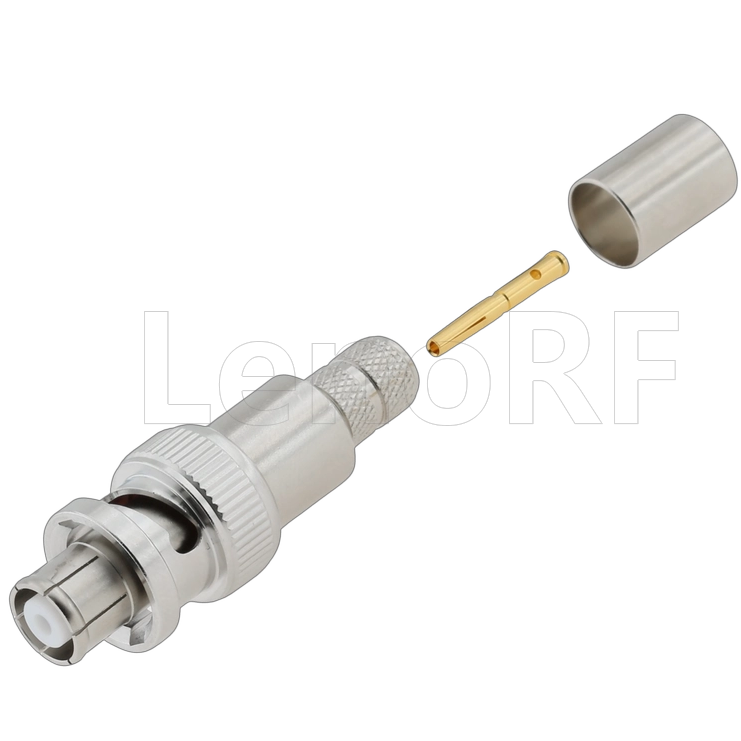

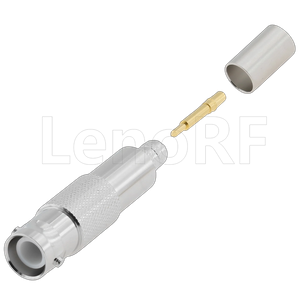

The SHV connector is a high-voltage coaxial connector designed for safe handling of voltages up to several kilovolts. It features a threaded coupling mechanism that ensures a secure, reliable connection while preventing accidental disconnection. SHV connectors are engineered with safety in mind, incorporating insulating barriers that protect users from high-voltage exposure. Typically rated for 50 Ω impedance, they are suitable for laboratory, medical, and industrial applications requiring high-voltage signal transmission. Available in both male and female configurations, SHV connectors provide durable, low-reflection performance for demanding high-voltage systems while maintaining compliance with safety standards.
Specification
| Body Plating | Tri-metal |
| Body Material | Brass |
| Cable Type | SYV-50-5 |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimping |
| Coupling Mechanism | Threaded ,Self-locking |
| HS Code | 8536909000 |
| Frequency (Max GHz) | 11 |
| Gender | Plug |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Orientation | Straight |
| Size Category | Standard |
| Temperature Range | -65 -165 °C |
| Termination Style | Clamp |
| Thread Direction | Standard |
| Mating Cycles | 500 Min |
| Interface Specification | MIL-STD-348 |
