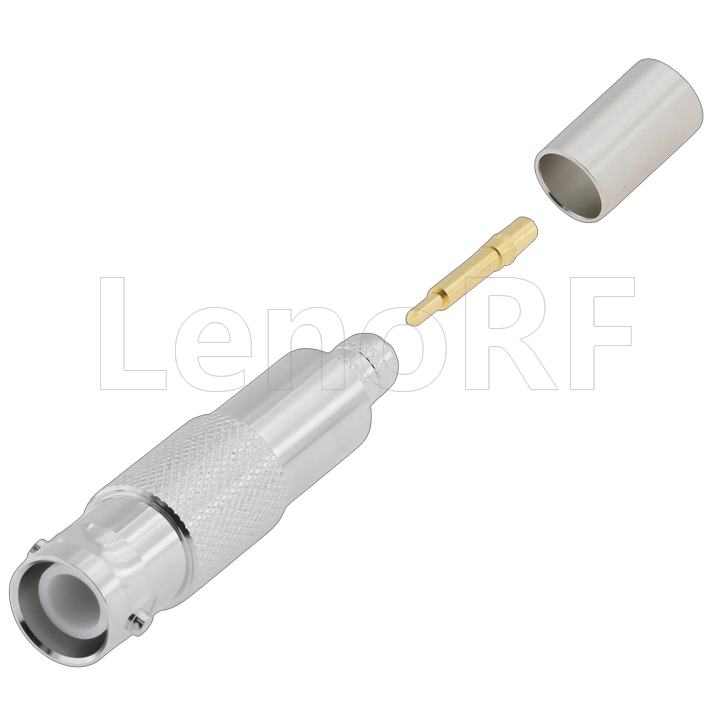

Overview
The SHV connector is a high-voltage coaxial connector designed for safe handling of voltages up to several kilovolts. It features a threaded coupling mechanism that ensures a secure, reliable connection while preventing accidental disconnection. SHV connectors are engineered with safety in mind, incorporating insulating barriers that protect users from high-voltage exposure. Typically rated for 50 Ω impedance, they are suitable for laboratory, medical, and industrial applications requiring high-voltage signal transmission. Available in both male and female configurations, SHV connectors provide durable, low-reflection performance for demanding high-voltage systems while maintaining compliance with safety standards.
Specification
| Body Plating | Tri-metal |
| Body Material | Brass |
| Cable Type | RG59 |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimping |
| Coupling Mechanism | Threaded ,Self-locking |
| HS Code | 8536909000 |
| Frequency (Max GHz) | 11 |
| Gender | Plug |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Orientation | Straight |
| Size Category | Standard |
| Temperature Range | -65 -165 °C |
| Termination Style | Clamp |
| Thread Direction | Standard |
| Mating Cycles | 500 Min |
| Interface Specification | MIL-STD-348 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What materials are RF connectors made of?
Body: Brass, stainless steel, or beryllium copper (with nickel, gold, or silver plating). Insulator: PTFE, PE, or advanced low-loss dielectrics. Contacts: Gold-plated brass or beryllium copper for low resistance and durability.
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
