RG223 is a commonly used coaxial cable that is widely applied in various RF and video transmission systems. This article provides a reference-level overview of the typical parameters of RG223 coaxial cable, including its physical characteristics, electrical performance, application considerations, and selection methods.
I. Physical Characteristics
1. Construction
Center Conductor: Typically a solid copper conductor with a diameter of approximately 0.81 mm.
Dielectric Insulation: Usually polytetrafluoroethylene (PTFE) or polyethylene (PE), with a thickness of approximately 1.88 mm.
Shielding Layer: Typically a braided copper shield with a braid coverage of about 95%.
Outer Jacket: Usually polyvinyl chloride (PVC), with a thickness of approximately 1.02 mm.
2. Dimensions
Outer Diameter: Approximately 5.08 mm (0.200 inches).
Inner Diameter: Approximately 2.08 mm (0.082 inches).
3. Wire Gauge
Center Conductor: 22 AWG.
Shield: Braided copper with approximately 95% braid coverage.
50 Ohms: RG223 coaxial cable has a characteristic impedance of 50 ohms, making it suitable for most RF and video transmission applications.
2. Attenuation
Low Attenuation: RG223 exhibits relatively low attenuation at higher frequencies. For example, attenuation is approximately 0.22 dB/m at 100 MHz and about 0.67 dB/m at 1000 MHz.
3. Insertion Loss
Low Insertion Loss: The low insertion loss of RG223 helps maintain signal integrity and transmission efficiency.
4. Voltage Standing Wave Ratio (VSWR)
Low VSWR: RG223 cables typically exhibit a VSWR of less than 1.2:1, indicating good impedance matching characteristics.
5. Shielding Effectiveness
High Shielding Performance: The braided copper shield provides effective protection against electromagnetic interference (EMI) and radio-frequency interference (RFI).
---
III. Environmental Adaptability
1. Operating Temperature Range
Wide Temperature Design: Many RG223 cables are designed to operate within a temperature range of approximately −40°C to +85°C, making them suitable for a variety of environmental conditions.
2. Protection Level
High Durability: The PVC outer jacket provides a certain level of resistance to moisture, dust, and abrasion.
3. Mechanical Strength
Good Mechanical Strength: The braided copper shield and robust outer jacket give RG223 cable good mechanical strength, allowing it to perform reliably in diverse installation environments.
Transmission Distance: Select an appropriate cable length based on the required transmission distance. RG223 is generally suitable for short- to medium-distance signal transmission.
Frequency Range: Choose the cable according to the signal frequency. RG223 is typically suitable for frequencies from 100 MHz to 1000 MHz.
Environmental Conditions: Consider temperature, humidity, vibration, and other environmental factors. For high-temperature environments, select heat-resistant cables; for humid environments, choose moisture-resistant designs.
2. Select Appropriate Connectors

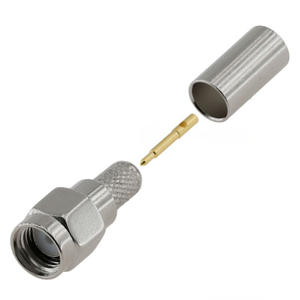

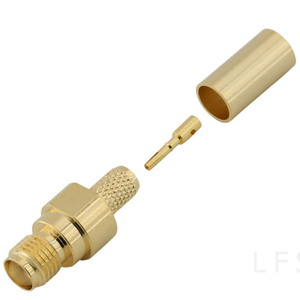

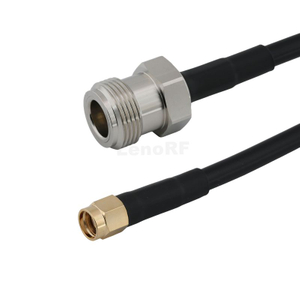

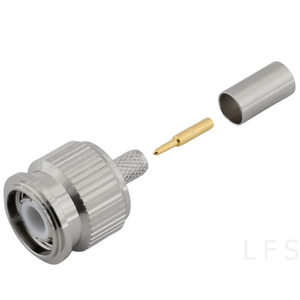

RG223 cables are commonly terminated with BNC or SMA connectors to ensure compatibility with equipment. For applications involving higher frequencies or higher power levels, Type N connectors may be selected.
3. Verify Electrical Performance
Impedance, Attenuation, Insertion Loss, and VSWR: Select cables with excellent electrical performance to ensure stable and reliable signal transmission.
4. Consider Environmental Suitability
Temperature Range, Protection Rating, and Mechanical Strength: Ensure the selected cable can operate reliably under the actual application conditions.
RG223 coaxial cable is a high-performance solution widely used in RF systems. Its balanced physical construction, strong electrical performance, and environmental adaptability make it an ideal choice for many applications. When selecting RG223 cable, it is important to consider application requirements, cable specifications, electrical characteristics, environmental suitability, as well as manufacturer quality and after-sales support. A thorough evaluation of these factors helps ensure optimal system stability and long-term reliability.
