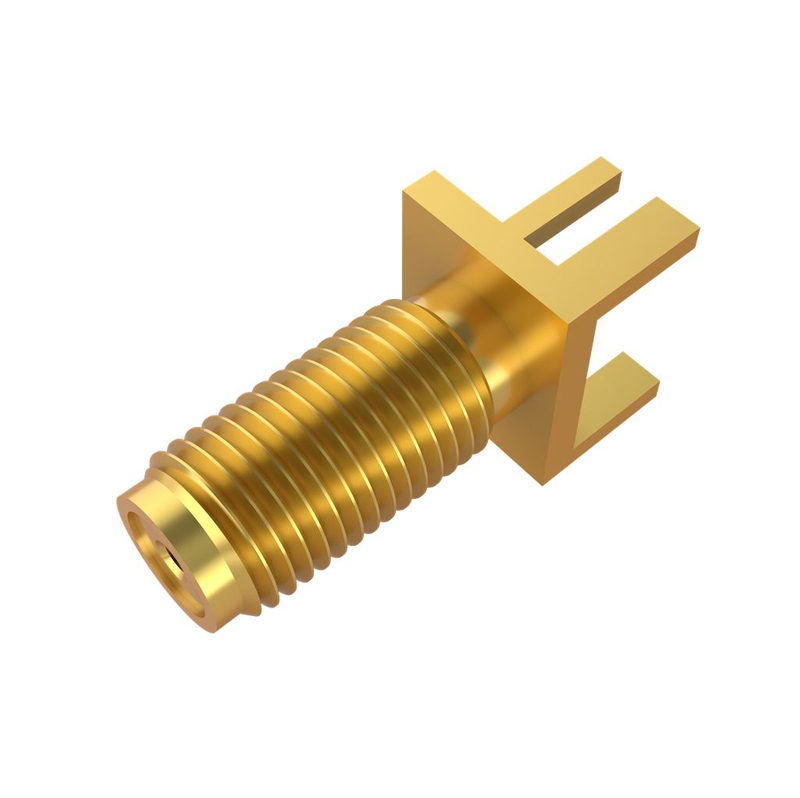

RP-SMA Connector Jack End Lunch For PCB Edge Mount

LenoRF's SMA coaxial connectors are high-quality and operate well. These screw-on locking connectors with a fixed maximum torque provide high reliability, extended service life, excellent mechanical stability, and superb electrical qualities. Excellent frequency ranges up to 18 GHz and 30 dB return loss are possible thanks to the butted outer contact. SMA connectors are utilized in RF applications such as telecommunications and mobile communication, as well as test and measurement instruments and equipment.
  • 89-5091-011-01

  • RP Female

  • Straight

  • PCB Hole through

  • Soldering

  • N/A

  • 89-5091-011-01.pdf

  • 89-5091-011-01.stp

Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type N/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderRP Jack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting FeatureBulkhead   - Rear Mount
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StylePCB   - Through Hole
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
