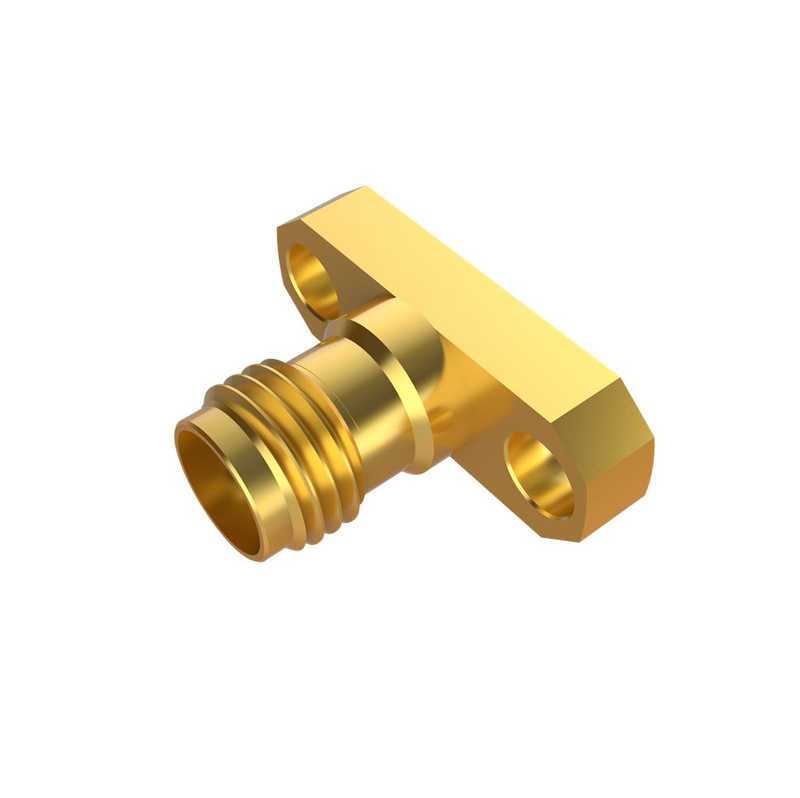

SMA Connectors Jack with Female Solder Hole For Microstrip

SMA coaxial connectors from LenoRF are high-quality and high-performing. These screw-on locking connectors include a set maximum torque for high dependability, extended service life, mechanical stability, and electrical performance. The butted outer contact allows for excellent frequency ranges of up to 18 GHz and return loss of less than 30 dB. SMA connectors can be used in a variety of RF applications, including telecommunications and mobile communication, as well as test and measurement tools and equipment.
  • 89-5061-022-01
  • Female
  • Straight
  • 2 Hole Flange
  • Soldering
  • N/A
  • 89-5061-022-01.pdf
  • 89-5061-022-01.stp
Body   PlatingGold
Body MaterialBrass
Cable Type N/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
Impedance (Ohms)50
Insulator MaterialPTFE
Panel Mounting Feature2 Hole Flange
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348
