Overview

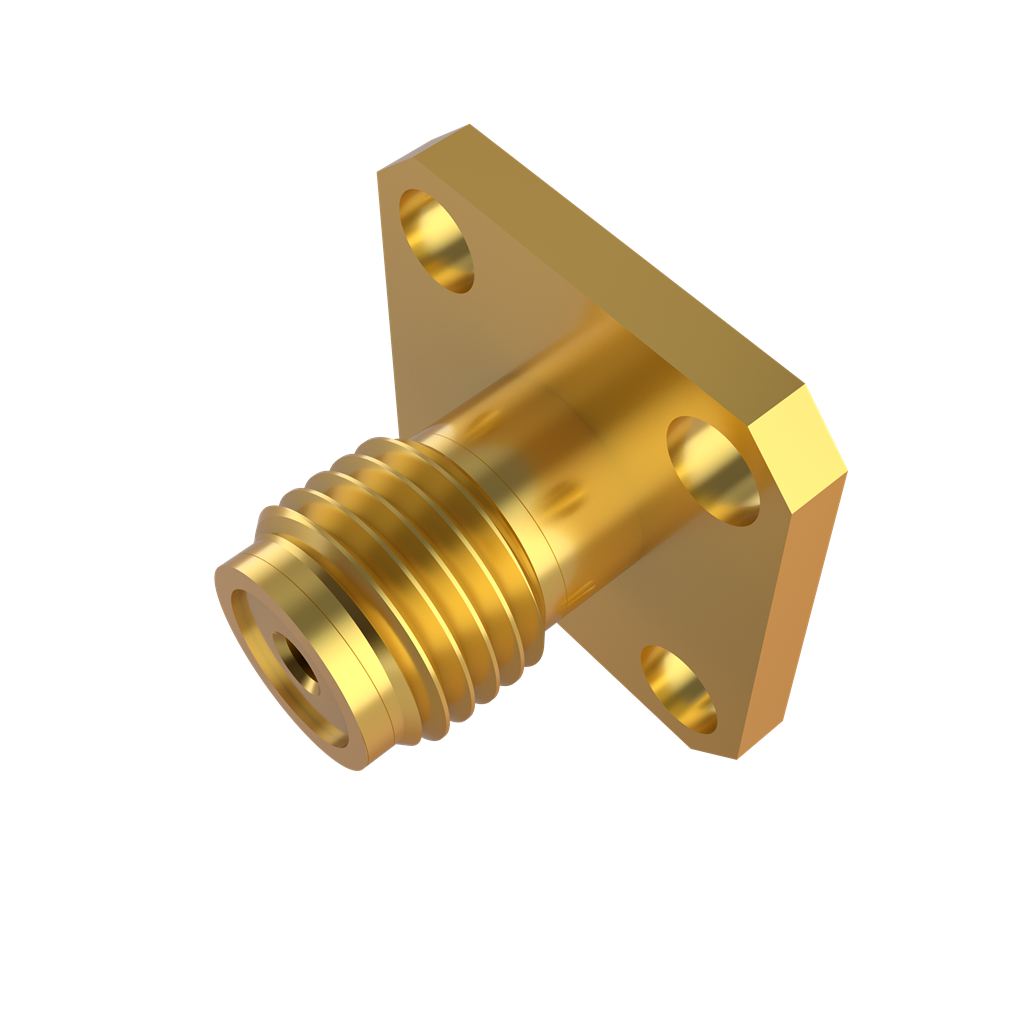

The SMA RF Connector is Low VSWR ensures minimal signal reflection RF connector designed for high-frequency applications up to 9 GHz, 50 OHMS. With a threaded interface, it ensures reliable connections in Outdoor Antennas,PCB Board RF Modules,Outdoor Antennas.
Features
Frequency Range | DC to 18 GHz,extended to 26.5 GHz |
Impedance | 50 Ohms |
VSWR | ≤ 1.2:1 |
Material | Gold-plated Brass |
Interface | Threaded for Secure Connection |
Applications
Wireless Communication Systems
Radar & Military Equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
Outdoor Antennas
PCB Board RF Modules
Outdoor Antennas
Specification
Body Plating | Gold |
Body Material | Brass |
Cable Type | RG4085==5 |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Gender | Female |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Subminiature |
Temperature Range | -65 to 155 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
