Overview
The SMA RF Connector is Low VSWR ensures minimal signal reflection RF connector designed for high-frequency applications up to 6 GHz, 50 OHMS. With a threaded interface, it ensures reliable connections in PCB Board RF Modules,Base Stations.

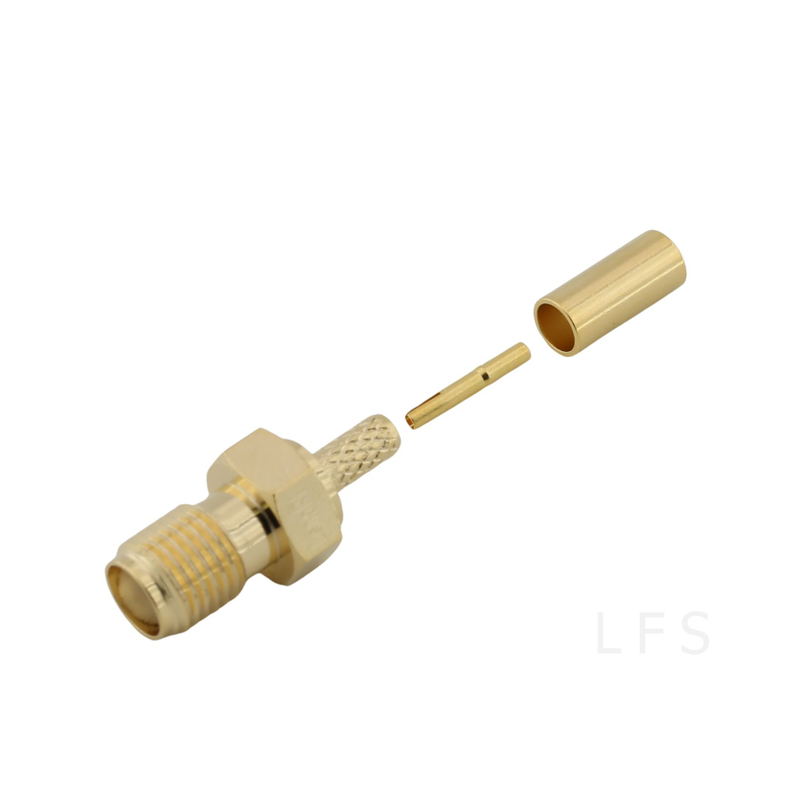

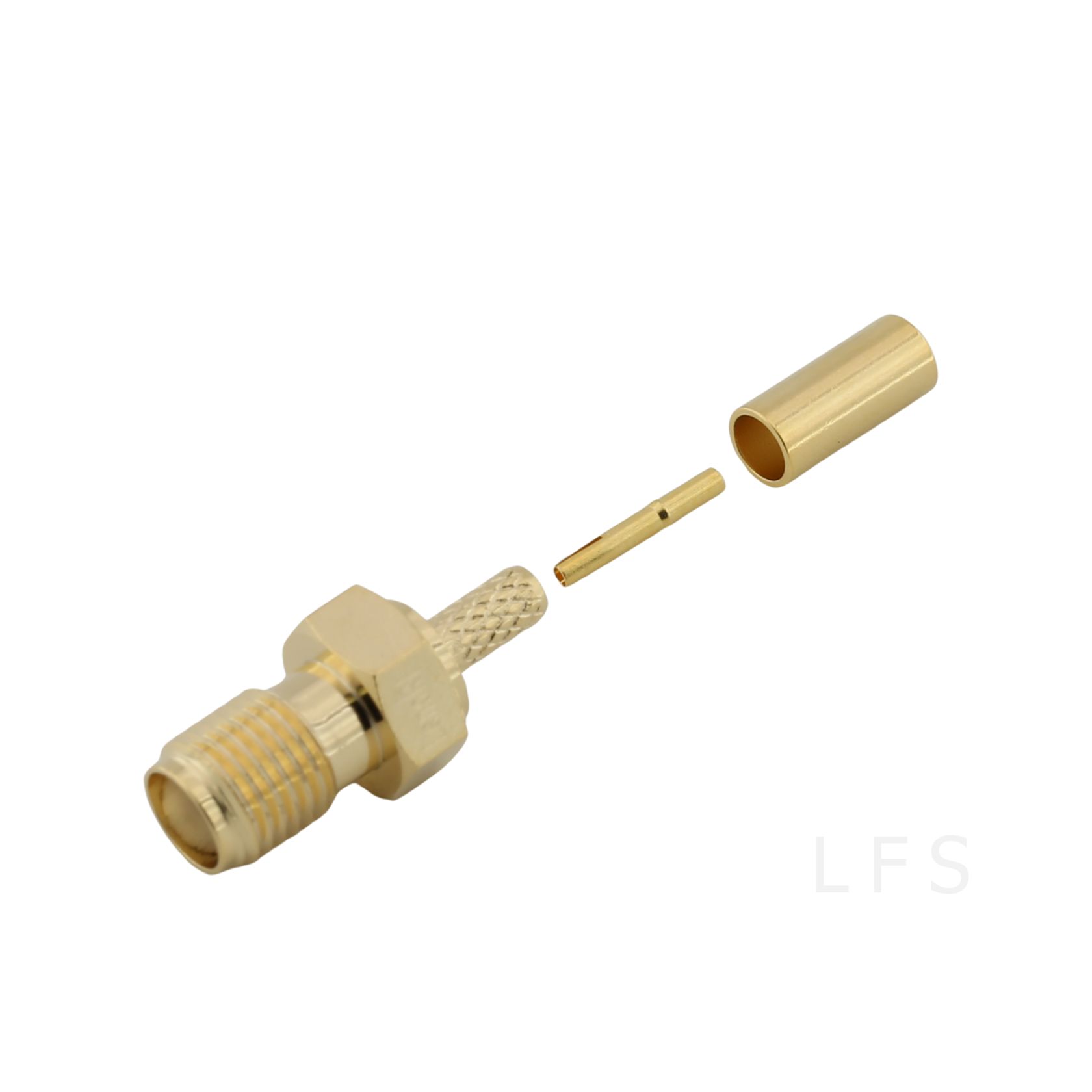

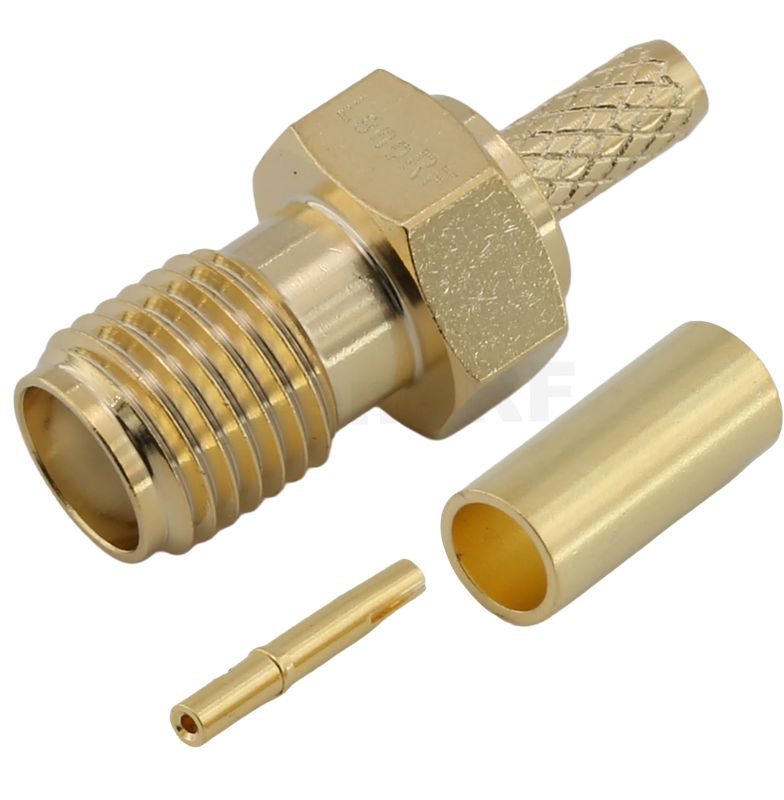

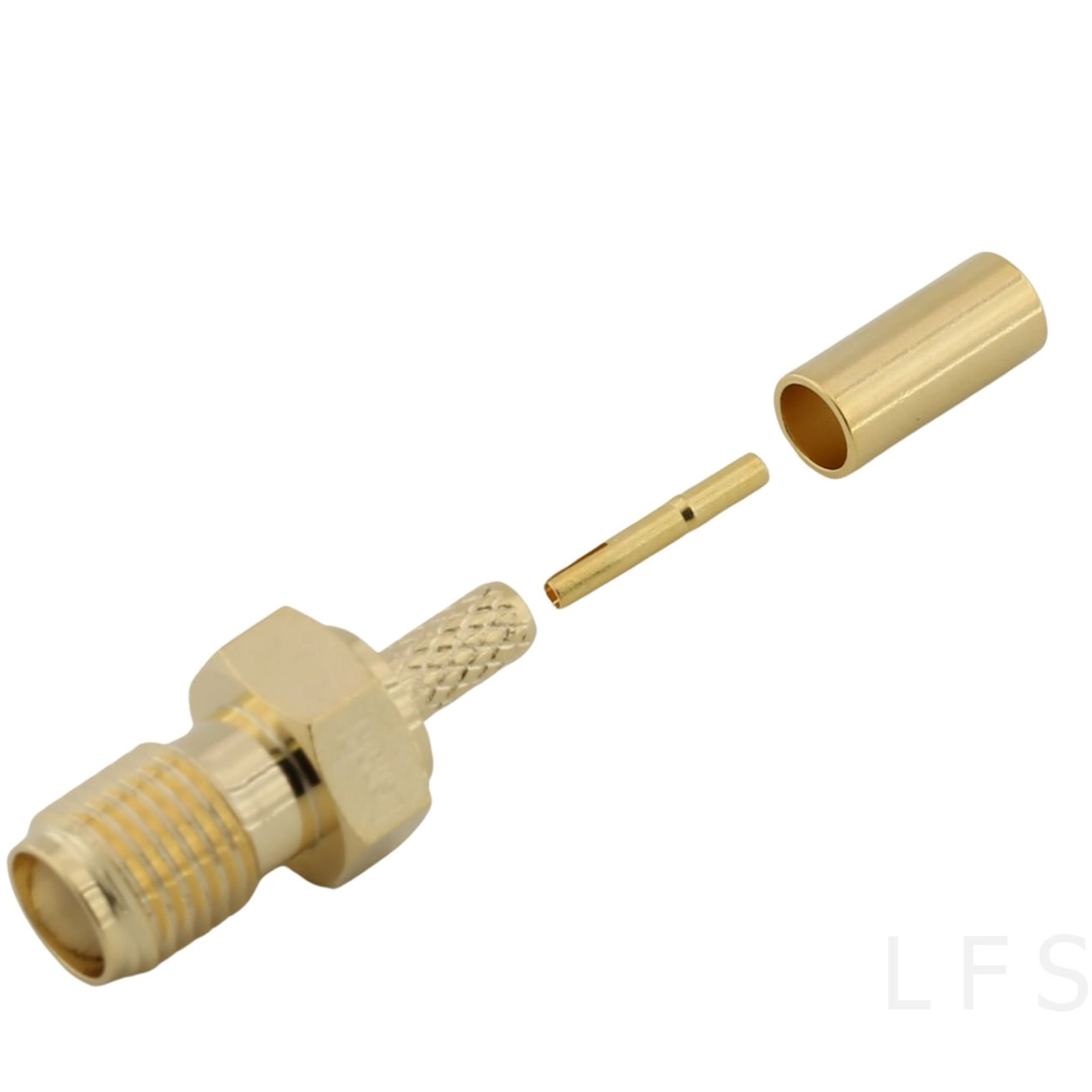

![3.01.299#SMA-FEMALE-CRIMPING-FOR-RG316]( "3.01.299#SMA-K-RG316")
Features
Frequency Range | DC to 18 GHz,extended to 26.5 GHz |
Impedance | 50 Ohms |
VSWR | ≤ 1.35:1 |
Material | Gold-plated Brass |
Interface | Threaded Interface for Secure Connection |
Applications
Wireless Communication Systems
Radar & Military Equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
PCB Board RF Modules
Base Stations
Specification
Body Plating | Gold |
Body Material | Brass |
Cable Type | RG316 |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 6 |
Gender | Female |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Subminiature |
Temperature Range | -65 to 165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
