An RF adaptor (Radio Frequency adaptor) is a component used to connect two different types of RF connectors or interfaces, allowing the transmission of high-frequency signals with minimal loss or interference.
Application:
Connecting antennas to RF equipment
Linking test equipment (like spectrum analyzers or signal generators) to DUTs (devices under test)
Integrating components in RF communication systems (e.g., Wi-Fi, LTE, GPS, IoT modules)
2.92mm connector review:
Type: Precision coaxial connector
Frequency Range: DC to 40 GHz (some high-grade versions up to 46 GHz)
Impedance: 50 Ω
Standardization: IEC 61169-35
Relation to Others:

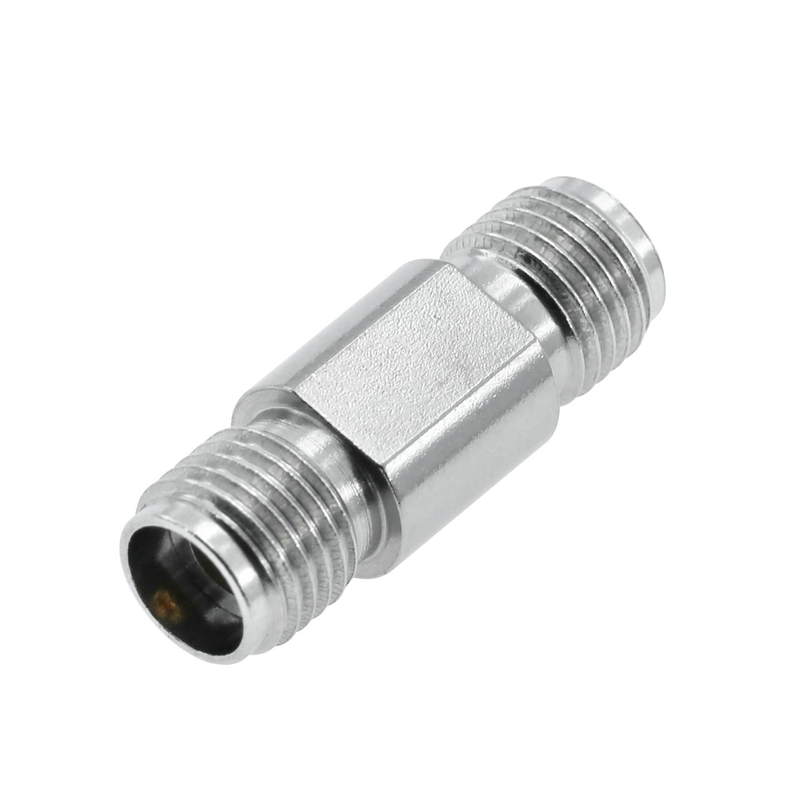

| Configuration Of Adapter | 2.92 mm Jack To Jack Adapter 50 OHM Straight Stainless Steel |
| Type Of Adapter | In Series |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Coupling Mechanism | Threaded |
| HS Code | 8536909000 |
| Frequency (Max GHz) | 40 |
| Impedance (Ohms) | 50 |
| Orientation | Straight |
| Temperature Range | -65 ~165 °C |
FAQ
1. Sample delivery time
Regular model need 15 days, some complex connectors need 25 days
2. Sample Fee
The most of RF connector is CNC parts,don't need to make mold.
Through, each part need be tuning the CNC, usually one sample need 200 USD cost.
The fee will return after 5K bulk order
3. The quarantee
Brass RF connector is one year, the stainless steel connector is three year.
Also, depend on the material of contact, Beryllium contact have better lifetime.
4. ROHS&REACH
Our product fully compliance with ROHS&REACH.
5.Does LENORF offer military class product
Yes. We honor to offer military product with super stable quality.
6. MOQ
Regular connector: 500PCS
Adaptor: 50PCS
Military connector:100PCS
Application：
Telecommunication,Military,Broadband,Industry,Medical,5G,Radar
